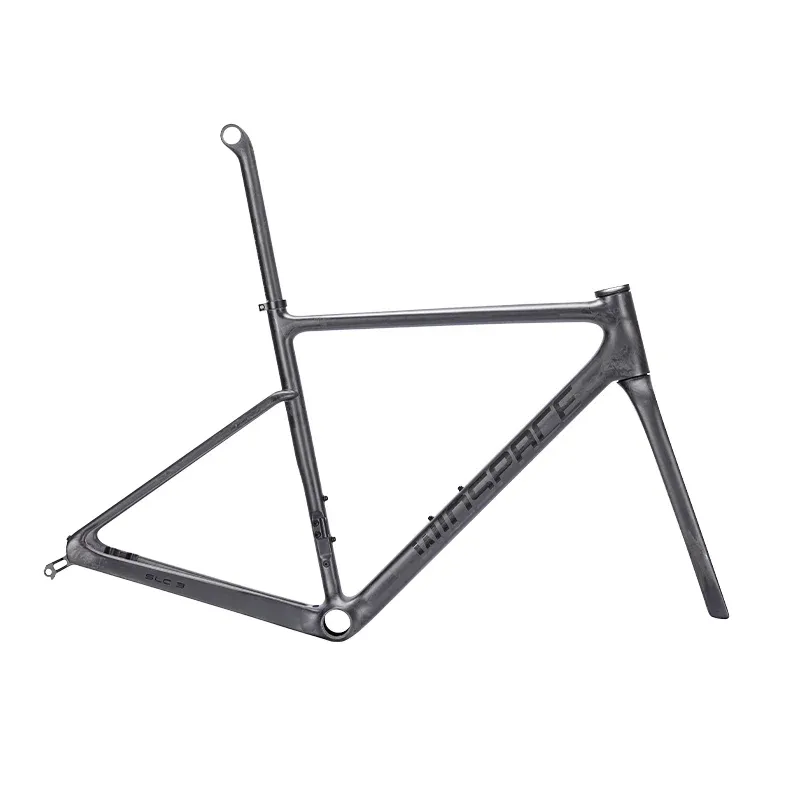

Winspace SLC 3.0 Frameset

The Winspace SLC 3.0 Frameset represents the third generation of the Super Light Versatile road bike frame. Building on the SLC 2.0, it has evolved into a true all-terrain master, excelling in ultralight climbing, aerodynamics, and responsive handling.

Key Features:

• Premium Materials: Crafted from high-modulus Toray T1100 + T1000 + M46 + M65 carbon for exceptional performance.
• Lightweight Design: Weighs an impressive 699 g (size M, unpainted/raw), making it 80 g lighter than its predecessor.
• Enhanced Stiffness: Improved power transfer and efficiency with critical upgrades:
  • Head tube stiffness: +31.8% to 102 N/mm
  • Bottom bracket stiffness: +21.6% to 72 N/mm

Performance Enhancements:

• Asymmetrical Design: Features an asymmetrical seatpost and chainstay for balanced drive-side stiffness and non-drive-side stability.
• Aero Tail: Optimized for improved airflow and rider comfort.
• Tire Clearance: Maximum clearance up to 700×32C, offering greater versatility on mixed roads.

Modern Features with a Timeless Aesthetic:

• Old-School Look: Combines timeless aesthetics with cutting-edge performance.
• Advanced Components:
  • T47-85.5 threaded bottom bracket
  • 1-1/2" to 1-1/2" FSA ACR headset compatibility
  • Flat-mount disc brakes
  • Internal cable routing for clean, sleek lines.

This frameset is the perfect base for a custom build, whether you’re aiming for a climbing-focused, aero-optimized, or endurance setup. It’s particularly ideal for tackling Quebec's varied roads and hills.

Specifications:

• Frame Material: Toray T1100/T1000/M46/M65 carbon
• Frame Weight: 699 g (size M, unpainted)
• Sizes: XS (460 mm), S (480 mm), M (500 mm), L (530 mm), XL (550 mm)
• Fork: Full carbon (lightweight design)
• Bottom Bracket: T47-85.5 threaded
• Seatpost: 27.2 mm
• Brakes: Flat-mount disc
• Routing Compatibility: Mechanical/Di2/Campy EPS/SRAM eTap
• Tire Clearance: Max 700C × 32C
• Headset: 1-1/2"/1-1/2" FSA ACR
• Features: Asymmetrical design, Aero Tail, increased stiffness, internal routing
• Intended Use: Road climbing, aero performance, versatile riding – custom build frameset only (no groupset/wheels included)

A superlight, stiff, and versatile frameset – the ideal foundation for your dream road bike build!
