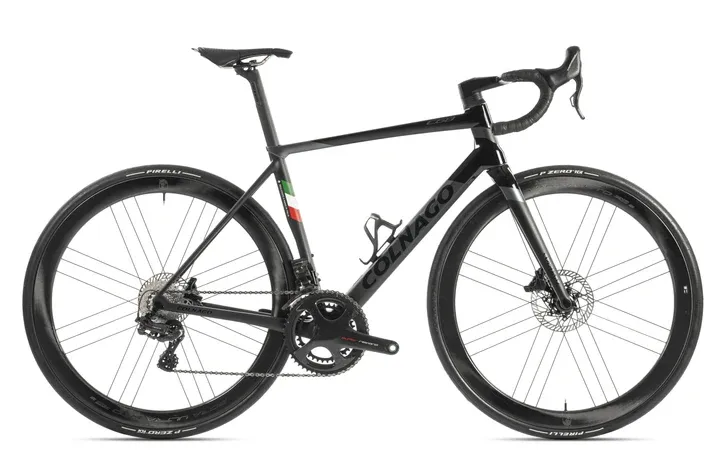

Colnago C68 All Road Frameset

Ride longer, ride further – even when the tarmac ends Compared to the C68 Road, the C68 Allroad has a shorter reach and a higher stack. The rider’s upper body stays in a more upright position and their arms are less stretched out. This takes some weight off the hands and puts more on the saddle resulting in a more comfortable ride, especially on rough surfaces or during long rides.

The C68 Allroad has greater tire clearance than the Road model, up to 35mm. Furthermore, to improve the performance on bumpy surfaces, the shape of the down tube is slightly different from the road version, and the chainstays and the seatstays are reinforced. The result is the same superior ride feeling as the C68 Road, but enhanced for bigger adventures: you can ride on many different surfaces, i.e. dirt roads and uneven paths.

Proudly Made in Italy Colnago bikes are not meant to be ordinary. Following the tradition of the Colnago C Series, the C68 Allroad is true to it’s underlaying DNA, composed of several modular parts assembled together by the hands. Some of the joints are left visible, while others have been masked with a complex process of bandaging. The result is a visually seamless frame, with slightly proud head tube and seat cluster. The C68 Allroad, like every C Series Colnago, is dedicated to all those who are able to appreciate the fine art of crafting bicycles.

Specifications

• Series: C Series
• Model: C68 Allroad

Frame kit

• Frame (material): Modular carbon frame construction: 8 carbon parts.
• Fork (material, section notes): Carbon fork for disc brakes, integrated cables, 1"1/8 section
• Headset: ID:35 OD:47 36°/45° CeramicSpeed SLT Treated Bearings
• Seatpost: Carbon seatpost, 0.15 offset, "D-Shape" section
• Through axles: Diameter: 12 mm. length 100 mm (front) - 142 mm (rear)
• Weight limit: This model has an overall maximum limit (combined weight of bicycle, rider and load) of 120 kg

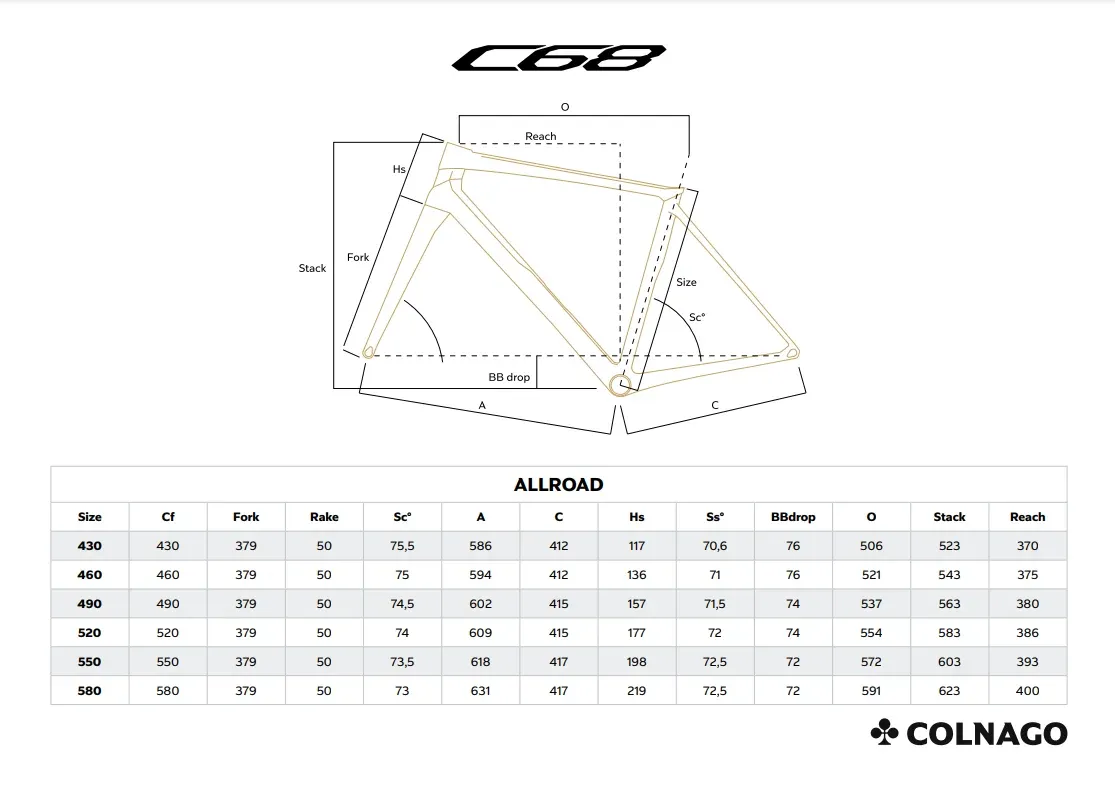

Geometry
