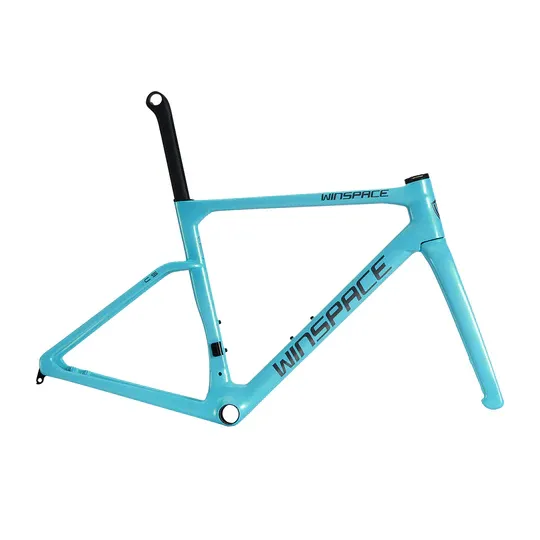

Winspace C5 Frameset

The C5 is the second all-round road frame launched this year, blending aerodynamic and endurance qualities. Its unique One-Piece Molding process makes it more durable and resilient, allowing you to enjoy the fun of riding and go further.

Key Features:

• Angled T-Tail
• Support for Up to 32mm Tire Clearance
• BB86 Bottom Bracket
• Longer Chain Stay Length
• X-Ray Examined
• T800 Carbon with Silicone + EPS + Ventilation Channels Tech
• UCI Approved
• One-Piece Molding

Specifications:

• Model name: C5
• Sizes: XS (435mm), S (465mm), M (485mm), L (515mm), XL (535mm)
• Headtube: NO.55R 1.5″/ACR/STD (headset included)
• BB: BB86
• Seatpost: Aero Seat Post (Included)
• Brake: Flat mount disc brake
• Front derailleur: Brazed on
• Derailleur Routing: Mechanical / Di2 / Campy EPS / SRAM eTAP
• Tire clearance: Max. 700C*32C
• Wheel Axle: 12mm through axle F100mm R142mm
• Carbon fiber: T700+T800
• Weight: Frame 1010+/-30g for M size (Unpainted)
• UCI approved
• Contents: Frame, Fork, Seatpost, Headset, Di2 cable stoppers, Direct Mount Derailleur Hanger
• Warranty: Limited 3-year warranty on the frameset

Features:

Angled T-Tail

The C5’s angled seatstays design and extended chainstays significantly filter out vibrations transmitted from the rear wheel. This ensures the riding experience isn’t as bumpy as the T series, providing an optimal balance of aerodynamics, comfort, and endurance. Perfect for long rides where both comfort and performance matter.

Less Aggressive Geometry Design

The frame tuning of the C5 emphasizes stability. Its extended chainstay length and increased trail value enhance handling, making the ride smoother and more forgiving. This design makes the C5 especially suitable for riders who prioritize a comfortable and stable experience.

One-Piece Molding

The C5’s one-piece molding and casting technology provides unmatched toughness and a seamless appearance. It stands out as the only model currently utilizing this advanced technique, ensuring superior durability and design

.
