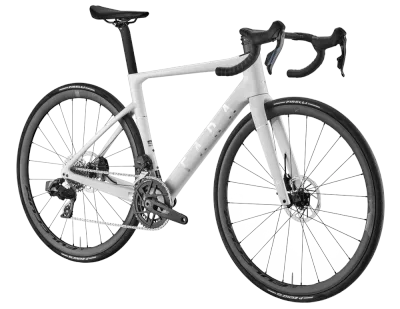

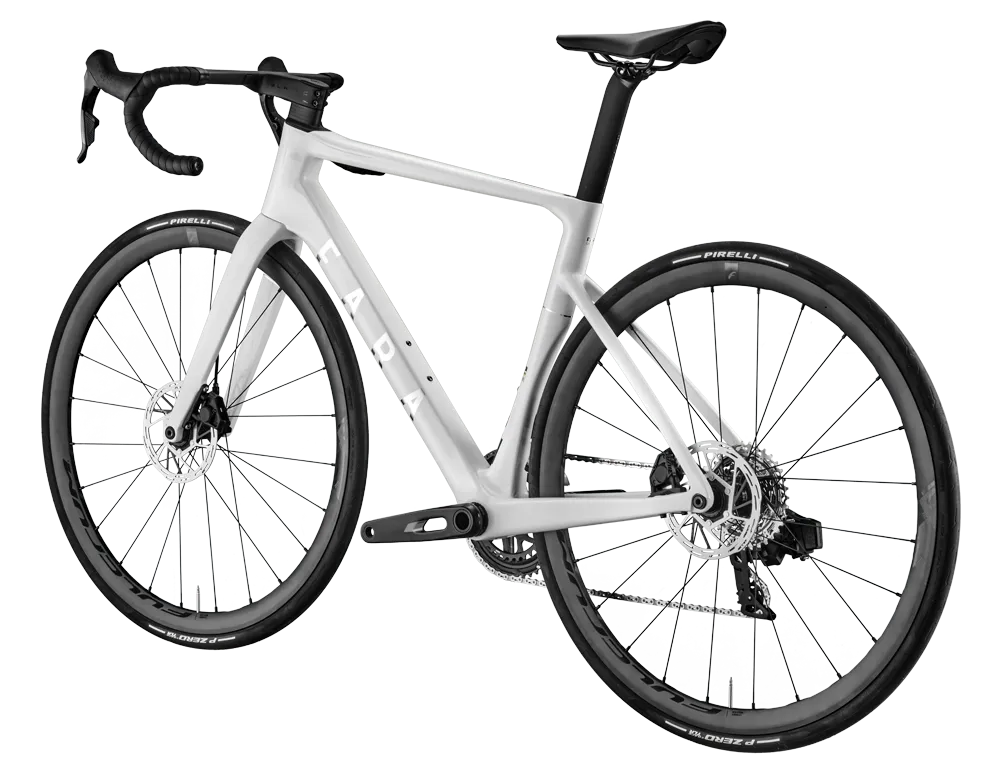

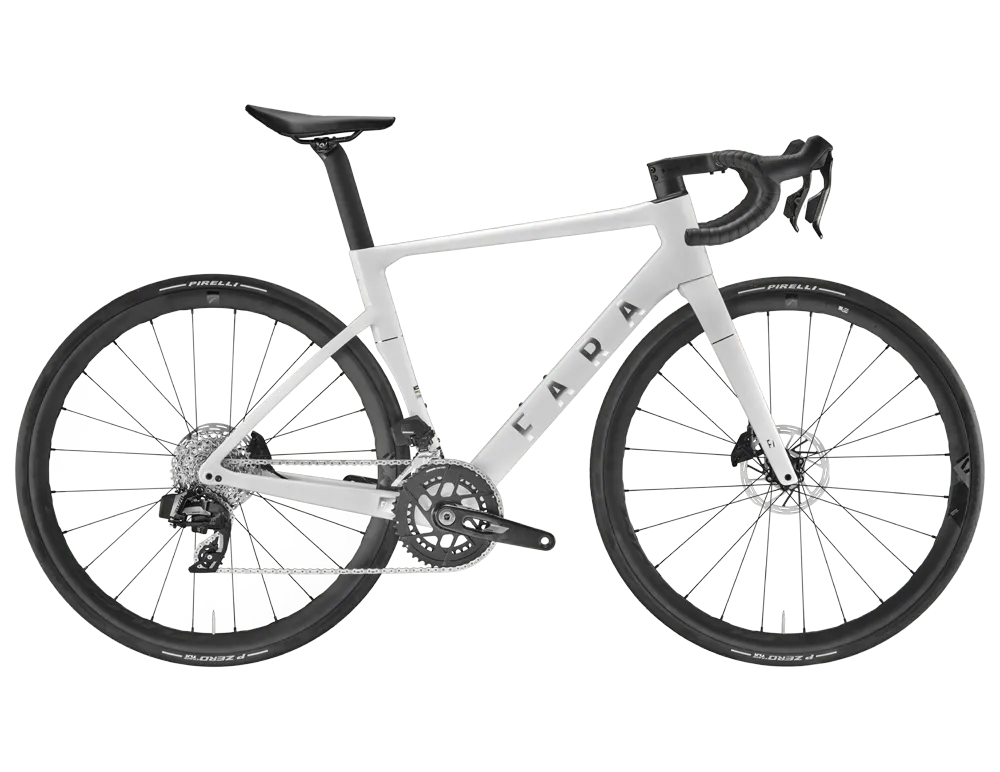

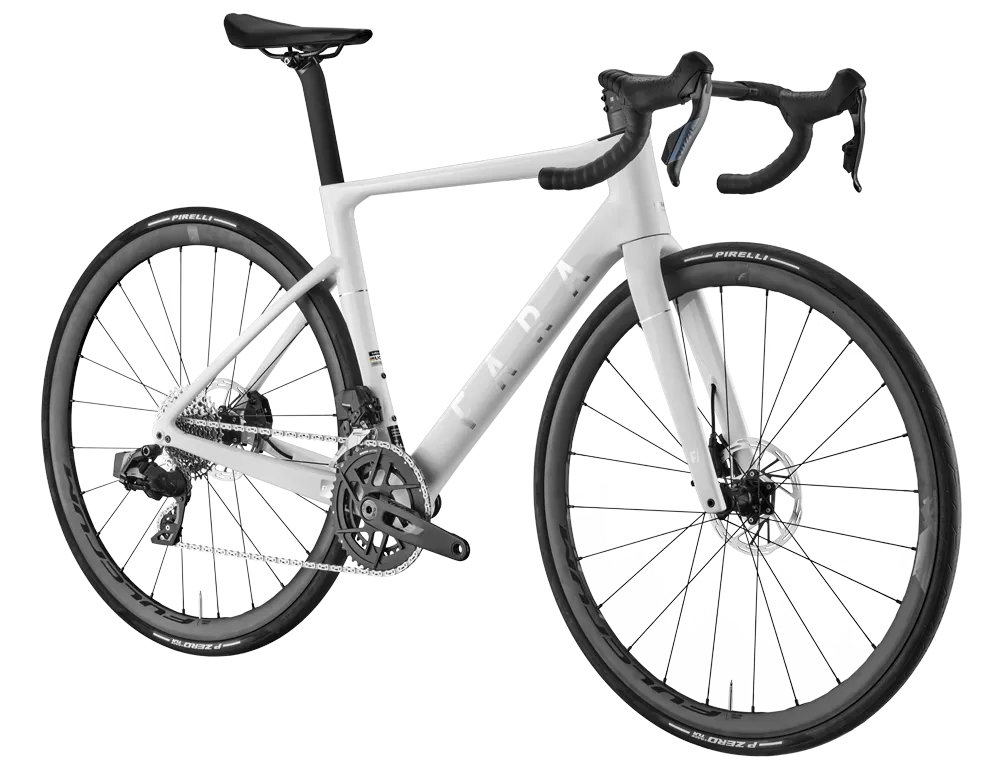

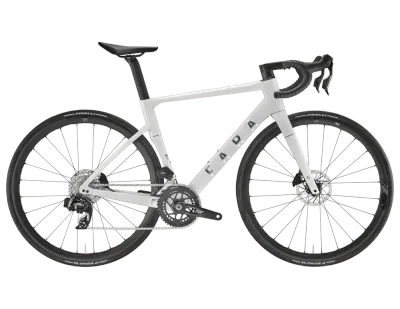

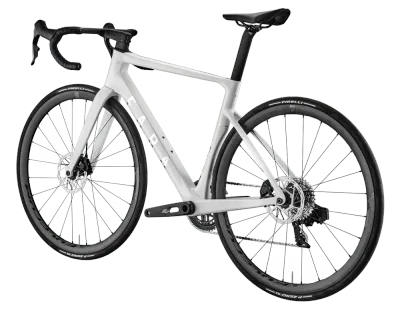

SRAM Rival AXS groupset - Carbon barstem
Equipped with the new SRAM Rival AXS E1 2x groupset, this configuration of our all-round performance road bike delivers speed, agility and comfort. The lightweight Toray® carbon fiber frameset is matched with our one-piece integrated carbon cockpit for wind-cheating clean lines and looks.
Trusted components
As with all of our bikes, we choose only trusted components from well known brands like SRAM, Fulcrum and Fizik to ensure you can get the most out of your bike. The F/Road Element is no exception, with high-profile alloy wheels for endless miles of durable, low maintenance riding and electronic shifting thanks to SRAM's fantastic AXS system - this bike delivers!
Race ready
The F/Road is created with longer rides in mind but still fast enough to be raced at any level. It is UCI approved for racing at all levels and features wind-cheating aerodynamics without compromising weight, making it a formidable contender against the fastest bikes in its class.
• Lightweight Toray® carbon frame

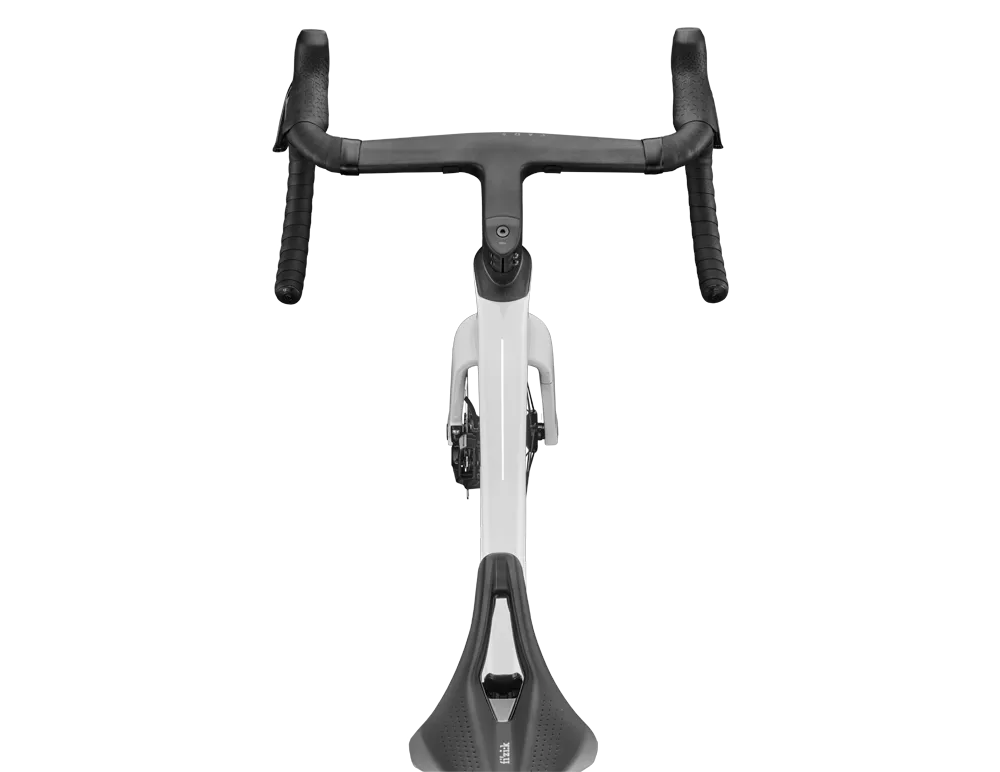

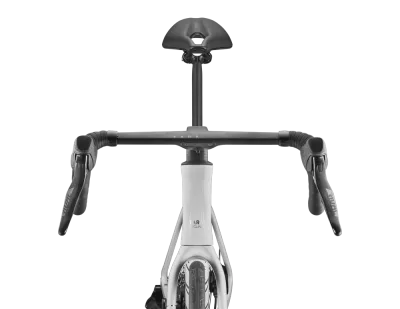

• Integrated carbon cockpit
• Fully integrated cable routing

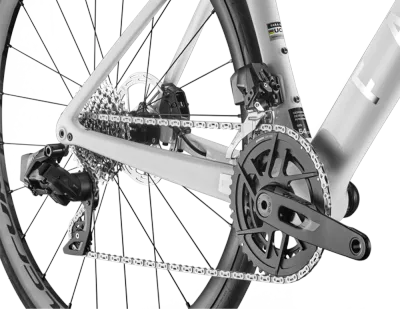

• SRAM Rival AXS E1 2x12s groupset 46/33t w. 10-36t
• Fulcrum Racing 400 wheels with Pirelli P ZERO TLR 28 tires
• frameset clearance up to 32mm tire clearance
• Weight 8.1kg (sz. M/54)
Technical specifications
• Frameset: F/Road Toray® carbon fibre frame and fork

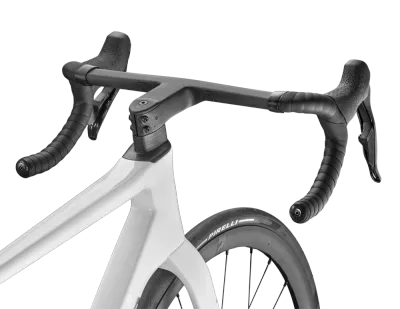

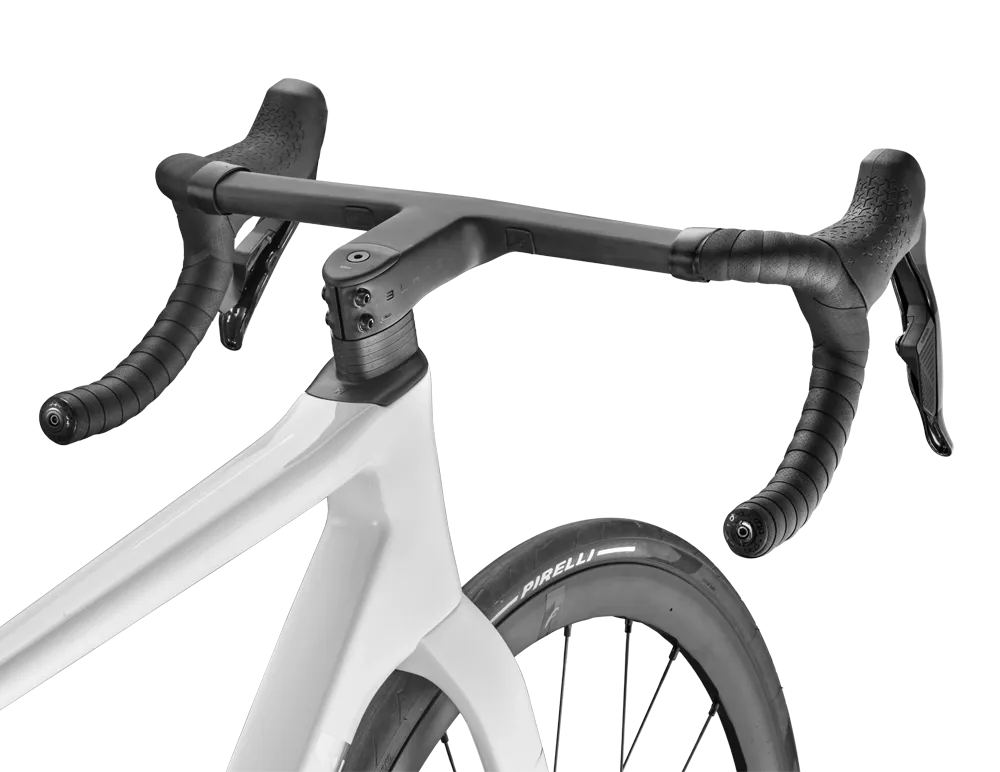

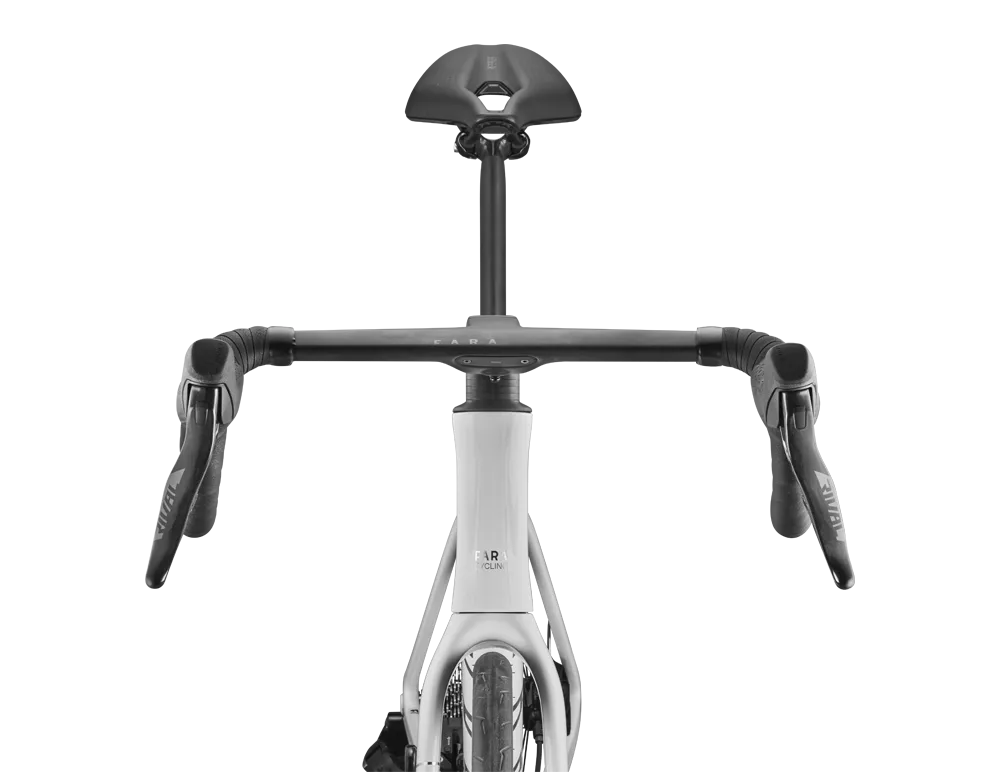

• Cockpit - FARA X BLKTEC R8 Carbon Fiber Integrated Barstem (380x90mm - 48, 400x90mm - 51, 400x100mm - 54,56, 420x100mm - 59)

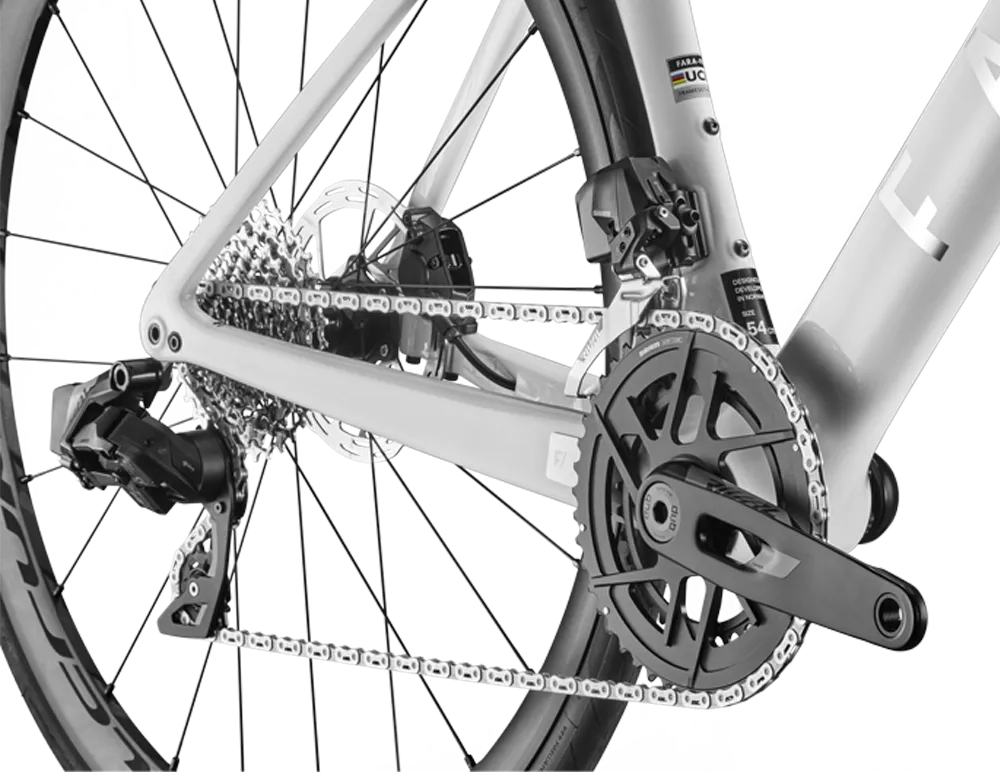

• Groupset - SRAM Rival AXS E1 2x12s 46/33t w. 10-36t cassette (165mm - 48, 170mm - 51,54, 172.5mm - 172.5mm)
• Wheelset - Fulcrum Racing 400 w. Pirelli P-ZERO Race TLR, 28mm
• Saddle - Fizik Tempo Argo R5
• Headset - Fully integrated Token A-Box w. 25mm stack spacers pre-installed
• Bottom bracket: Token Ninja Lite Steel Bearings, T47
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
THE DETAILS
• Lightweight TorayTM Carbon fiber frame
• NACA Airfoil tube
• Truncated NACA airfoils for optimal weight
• Aero-optimised fork legs
• Full internal cable routing
• All-round capabilities with 32mm tire clearance
• Hidden aero seat-post wedge
• Reversible aero seat post
• Intuitive fit road geometry
• T47 bottom bracket
• Curved seat-stays for increased comfort
• Cable routing for mechanical and electronic shifting
• UCI approved

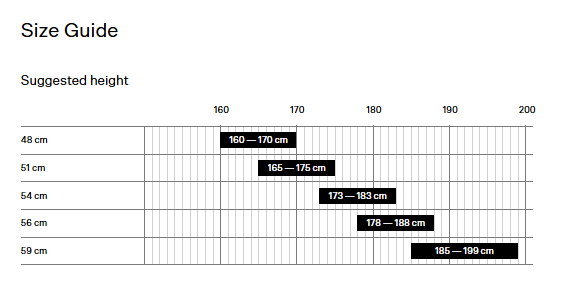

5 sizes from 48cm to 59cm fit nearly every rider.
Whether you are 160cm or 200cm, the five size options can be adapted to provide you with optimal fit.
In addition, stack and reach increments rise evenly throughout the range, providing consistent fit on each and every size.
Fork offsets are adapted from the smallest to the largest sizes to ensure great ride quality for all and none of the dreaded toe-overlap.
Geometry
Size | XS 48cm |
S 51cm |
M 54cm |
L 56cm |
XL 59cm |
---|---|---|---|---|---|
A. Stand-over height | 727mm | 751mm | 768mm | 804mm | 834mm |
B. Front centre | 568mm | 578mm | 584mm | 587mm | 608mm |
C. Rear centre | 408mm | 408mm | 410mm | 410mm | 410mm |
D. Wheel base | 976mm | 986mm | 994mm | 997mm | 1018mm |
E. Top tube length | 512mm | 528mm | 547mm | 567mm | 588mm |
F. Stack | 505mm | 523mm | 545mm | 567mm | 596mm |
G. Reach | 372mm | 378mm | 386mm | 394mm | 406mm |
H. Head stack | 108mm | 126mm | 144mm | 166mm | 195mm |
I. Seat tube angle | 75° | 74° | 73° | 73° | 73° |
J. Head tube angle | 71° | 72° | 73° | 73° | 73° |
K. BB Center to the topof the seat tube | 446mm | 475mm | 482mm | 531mm | 562mm |
L. Max Seatpost insertion | 140mm | 160mm | 160mm | 160mm | 160mm |
