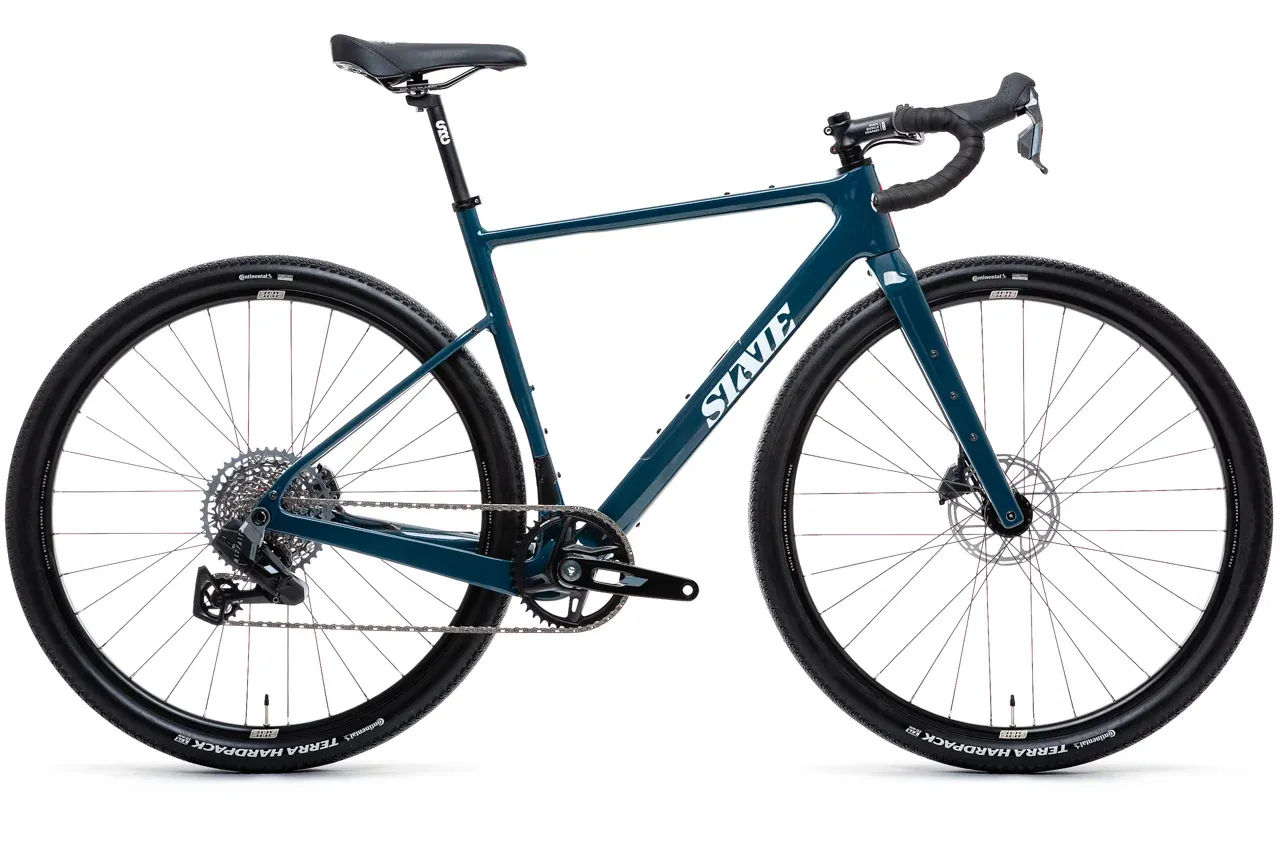

State Carbon All-Road v2 SRAM Rival AXS

Base model specs shown. Many upgrades available. Call us or email info@euro-sports.ca for details.

The Carbon All-Road v2 is built for bigger days out — 700c x 2.2" tire clearance for maximum versatility on any terrain. This build goes fully wireless with SRAM XPLR AXS shifting and a 42t direct-mount crank tuned for gravel gearing, so cables barely enter the picture at all — what's left routes internally through the frame with external cockpit access for easy service. Geometry leans fast: a shorter head tube and aggressive position for speed without giving up stability. UDH compatibility means the drivetrain keeps up with wherever the standards go next, and you get to pick your own wheel and tire setup to match how you actually ride.

Features

• UDH Compatibility: — Future-proofed for the latest drivetrain tech and easier maintenance.
• "Best of Both Worlds" Cable Routing: — Clean internal routing in the frame/fork with external cockpit routing for easier service.
• Downtube Storage Box + Bag: Fidlock magnetic closure for tools, tubes, and snacks (bag included).
• Bigger Tire Clearance: Fits 700c x 2.2" or 650b x 2.4" for more capability on rough terrain
• Clean 1x Cockpit: Molded aero plate covers the front derailleur mount for a sleek, race-ready look.
• More Mounting Points: Added mounts on the downtube, fork, and top tube for extra storage and adventure setups.
• T47 Bottom Bracket: Increased stiffness, improved clearance, and easier maintenance. Eliminates the creaking issues common with press-fit standards and opens up a wider range of crankset options.
• Race Geometry: Shorter head tube and a more aggressive fit for speed without giving up stability.

Specifications

• Drivetrain: SRAM Rival XPLR AXS 13-speed wireless or SRAM Eagle Transmission Mullet AXS 12-speed wireless
• Crankset: SRAM Rival XPLR (E-Gen), direct mount, 42T
  • 165 mm crank arms: XS, S and M
  • 170 mm crank arms: L and XL
• Wheelset: State Bicycle Co. All-Road v2, 700c
  • Tubeless setup requires rim tape, valves and sealant
• Handlebars: State Bicycle Co. All-Road
• Stem: State Bicycle Co. All-Road
• Seatpost: State Bicycle Co. All-Road
• Headset: 52 mm headset
• Downtube storage: Neoprene storage bag included
• Cable management: Cable management strap included
• Pedals: Not included

Maximum tire clearance:

• 700c wheels: up to 2.2" (55 mm)
• 650b wheels: up to 2.4"

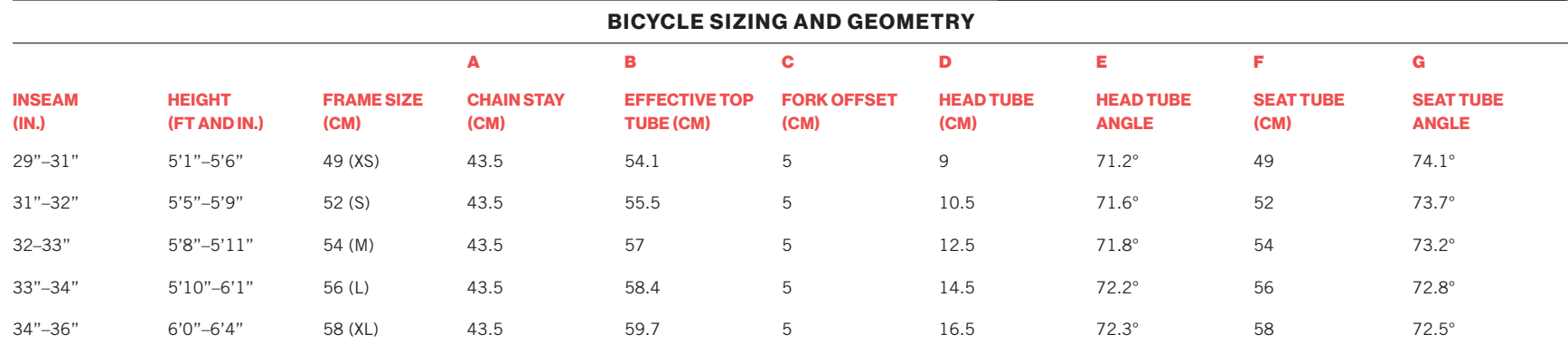

Sizing & Geometry
