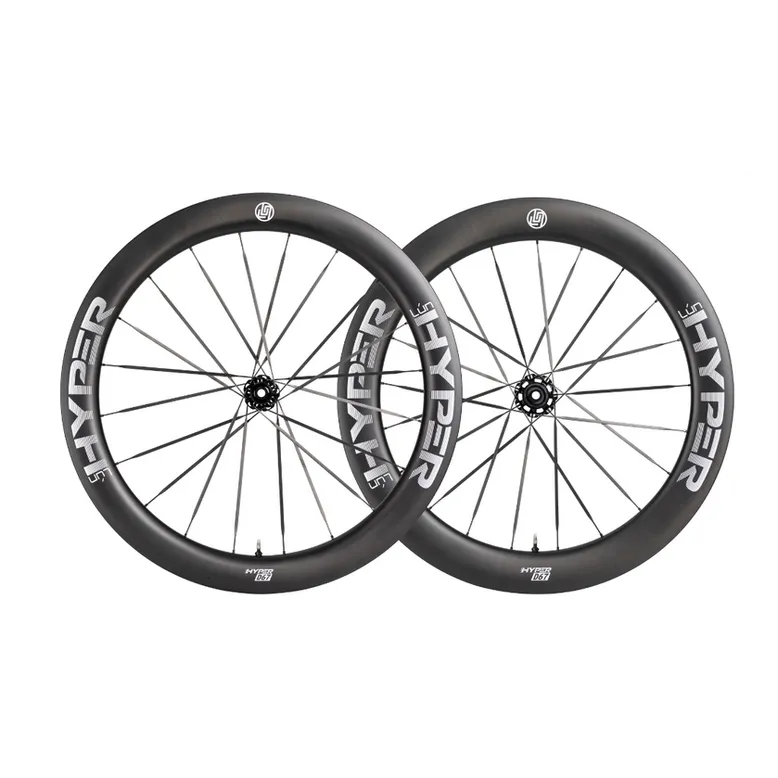

Lun HYPER 3 D67 Disc Brake Wheelset

The Lún HYPER 3 D67 wheelset is designed to maximize both acceleration and cruising capabilities. Its high-profile rims and wide-body spokes boost acceleration performance while delivering a striking visual impact.

Key Features

• 60mm Front / 68mm Rear F-RAPID Rim Profiles
• 23mm Internal Width / 28.4mm External
• UD Matt Finish with Laser Decal or Black with White Decal
• Wide Carbon Spokes
• Ceramic Bearings
• Titanium Ratchet System
• Tubeless Ready (Clincher Compatible)
• Supports 25-47mm Tires
• 1500g (±25g per wheel)
• Disc Brake

Specs

Rim Info

• Toray T700 Carbon Fiber
• Two design options available: UD Matt Finish – Laser Decal & UD Black Finish – White Decal
• Rim Width: 23mm internal / 28.4mm external

Spokes

• 5.2mm Carbon wide-body spokes
• T-LOCK anti-rotation spoke nipples
• 20 pcs front / 21 pcs rear

Weight

• 1291g ±50g
• Max. System Weight: 130kg

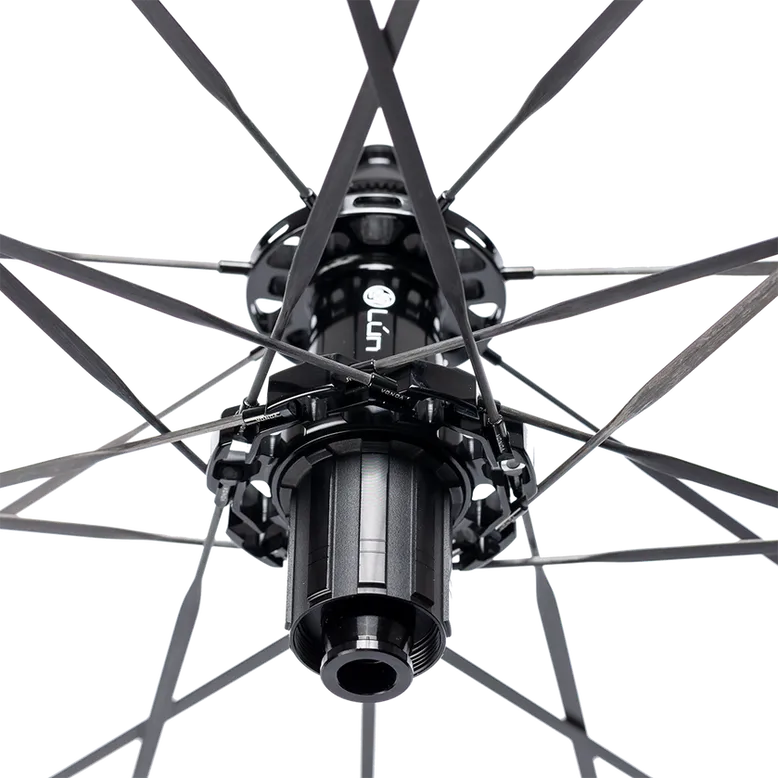

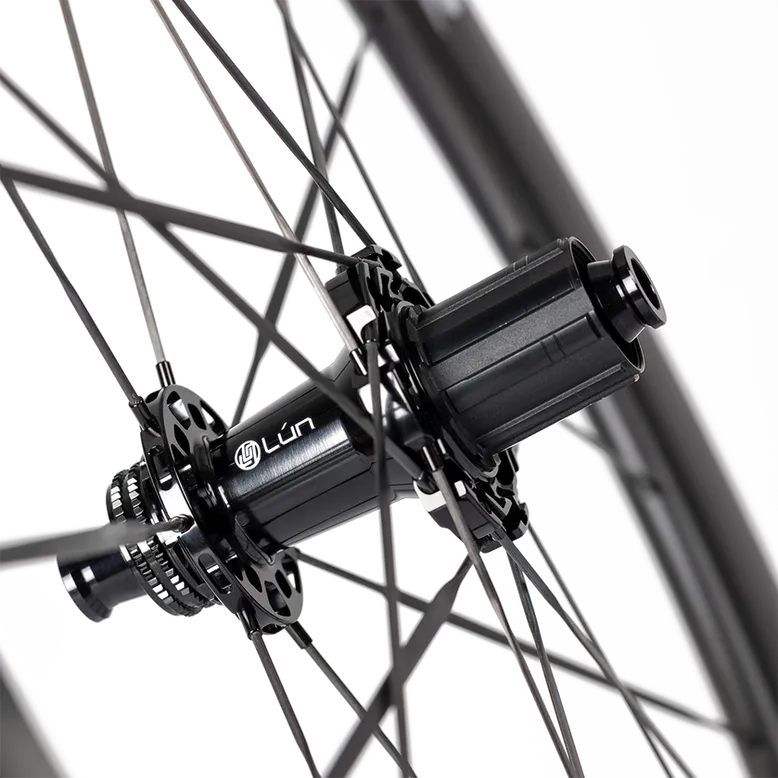

Hub Structure

• Titanium ratchet

Bearings

• NBS Ceramic

Freehub

• Shimano 11/12s/ SRAM 11s/12s XDR/ Campagnolo 10/11/12s/N3W

Tire Info

• Tubeless / Clincher
• Size: 25mm Min. / 47mm Max.
• Tire Pressure: 120 psi Max.

Advanced Engineering

Spoke Lacing Optimization

• Improved from the 2/3 cross-laced pattern to a vertically aligned design for better load distribution.

Wind Tunnel Tested

• Partnered with Japan FUDO Industry Inc. for scientific validation.
• Results show that compared to the HYPER 23, the HYPER 3 saves 2.2 watts at a speed of 48km/h.

Wider, with Less Compromise

• Updated manufacturing processes shorten the hook edge by 47% compared to the previous generation.
• Inner rim width widened to 23mm, better accommodating 30mm or wider tires for optimized tubeless performance.

Overall Performance Improved

• Weight reduction: 33/45 series reduced by 35g, 67 series reduced by 16g (conservative estimates).
• Improved stiffness across all series.

Wider & More Aero

• Latest generation of wider carbon spokes effectively reduces wind resistance by combing through airflow.

Lighter & Stronger Titanium Ratchet

• Titanium, known for its high strength, lightweight, and abrasion resistance, ensures durability for the hub’s “lifetime” use.

Same Rim Profiles

• Offers 33, 45, and 67 rim profile versions, covering most riding scenarios.

F-RAPID Design

The Front and Rear Aero Profiles are Individually Designed to meet their unique demands:

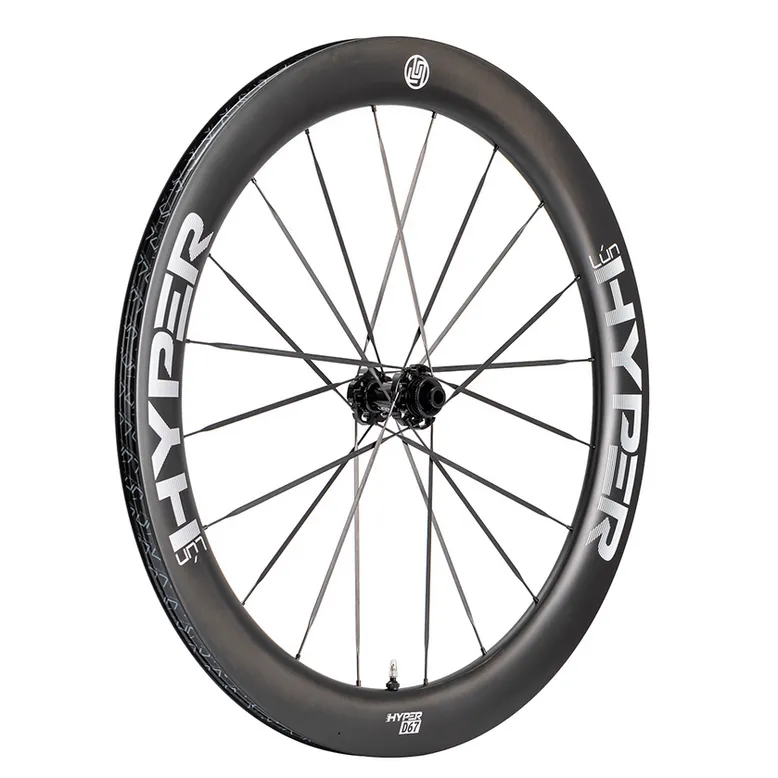

• Front Wheel: Optimized for leading-edge performance, providing speed and stability in various conditions with a more rounded rim profile.

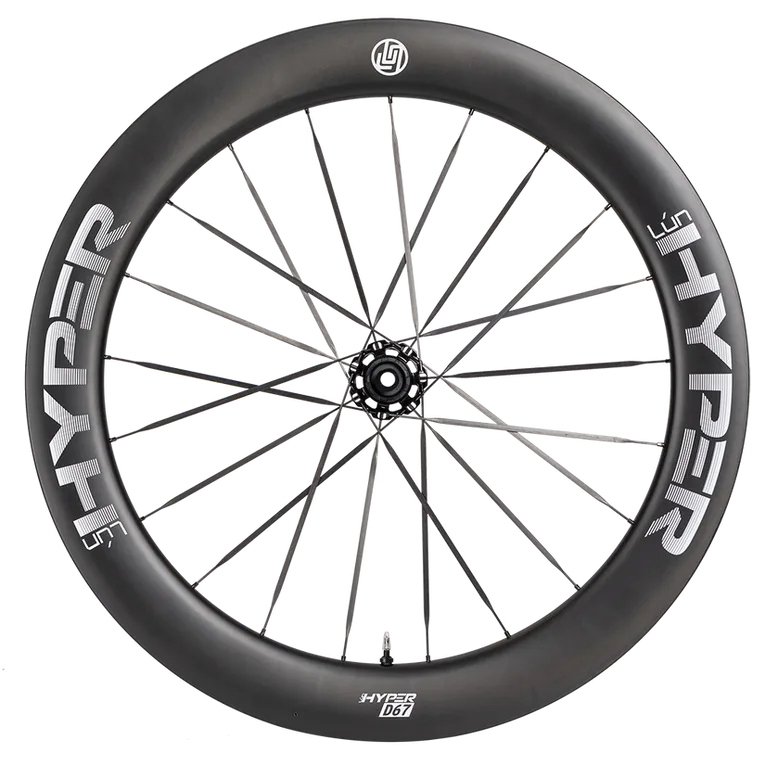

• Rear Wheel: Taller profile optimized for lower yaw angles, emphasizing trailing-edge performance.

Tested by Pros, Approved by the UCI

Pro cyclists demand the best performance and reliability. All new products undergo extensive testing in both lab conditions and real-world scenarios.
