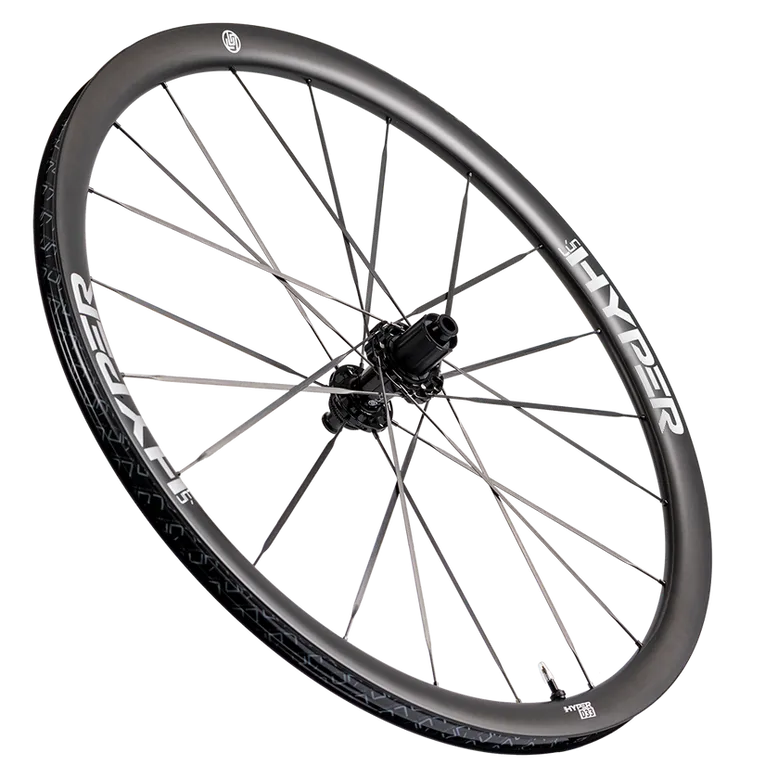

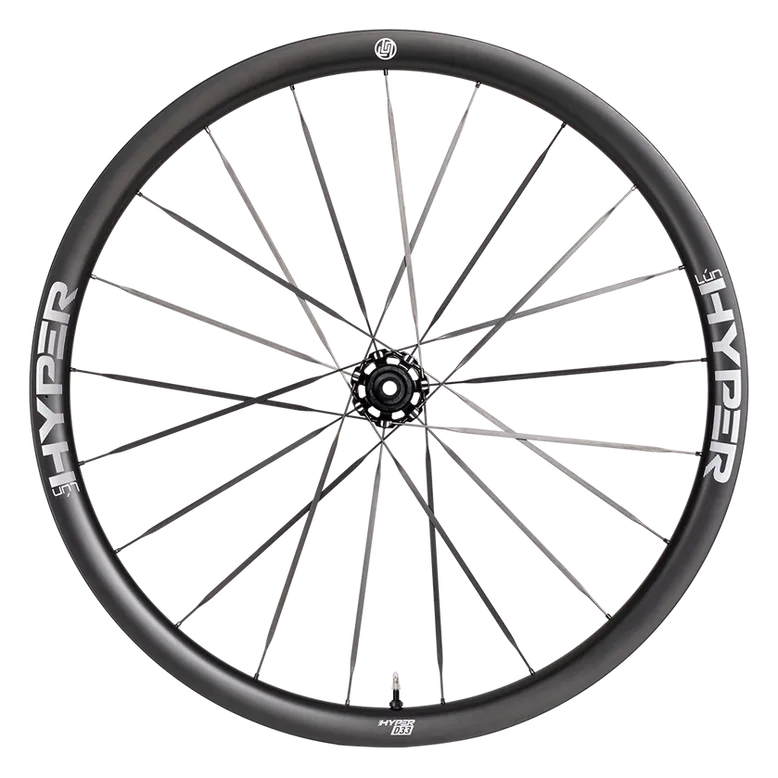

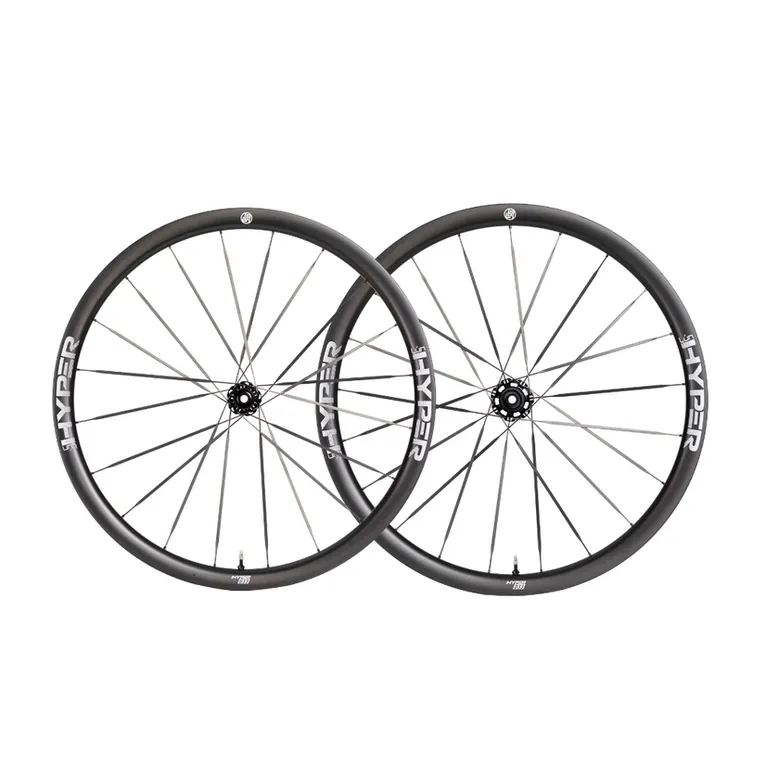

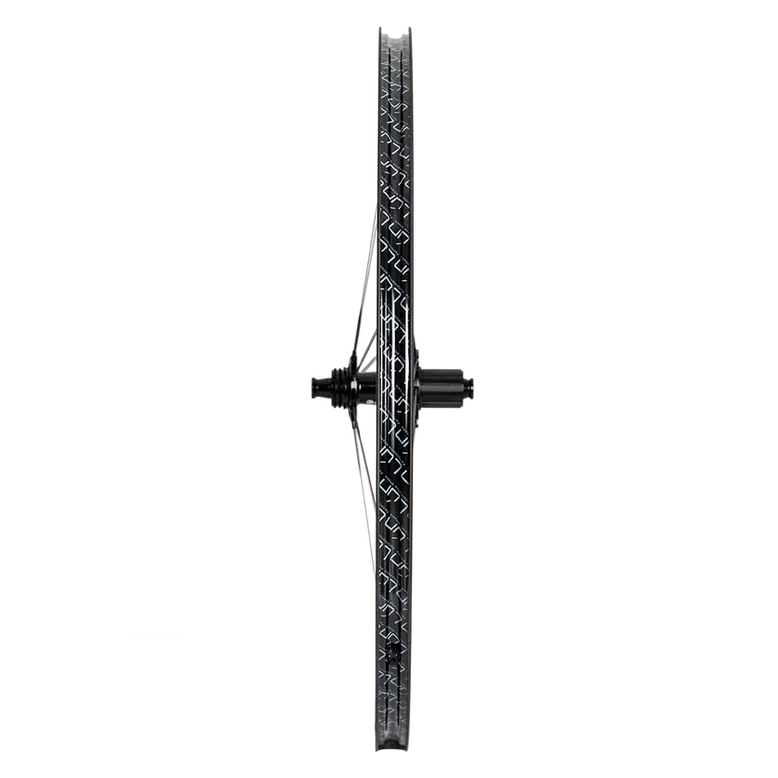

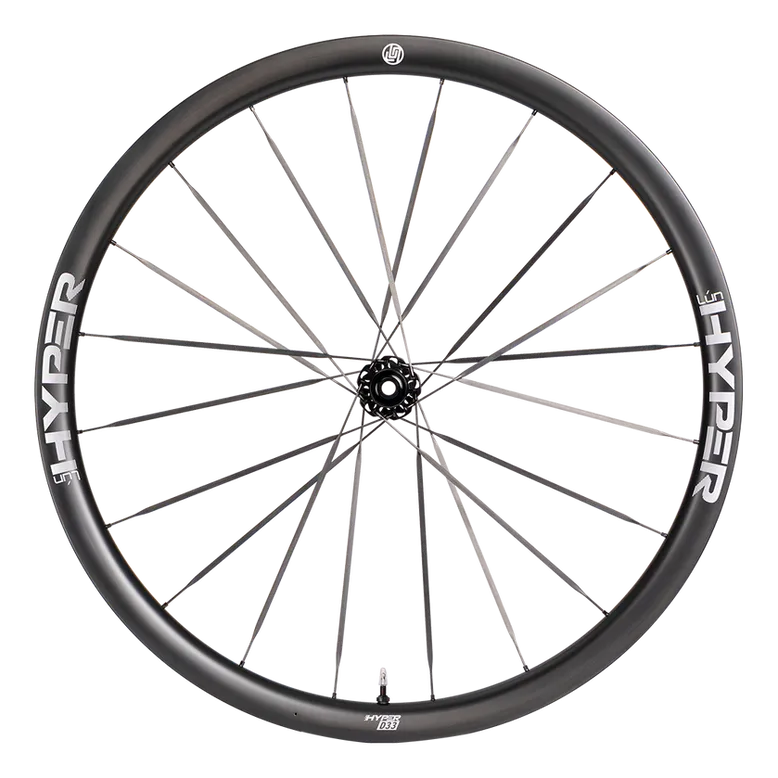

Lun HYPER 3 D33 Disc Brake Wheelset

The Lún HYPER 3 D33 is a super climbing wheelset designed to elevate your cycling experience. It combines the best-loved features with innovative upgrades to deliver exceptional performance.

Key Features

• 35mm Rim Depth: Optimized for climbing and aerodynamic efficiency.
• 23mm Internal Width: Ensures better tire support and improved handling.
• Wide Carbon Spokes: Enhances stiffness and responsiveness.
• Ceramic Bearings: Reduces friction for smoother and faster rides.
• Titanium Ratchet System: Lightweight and durable for reliable performance.
• Weight: 1291g (±25g per wheel), making it one of the lightest in its class.
• Disc Brake Compatibility: Provides superior stopping power and control.

This wheelset is not only lighter but also more compatible, offering exceptional stiffness for instant acceleration. With the Lún HYPER 3 D33, your bike feels like an extension of you, responding seamlessly to every move.

Specs

Rim Info

• Toray T700 Carbon Fiber
• Two design options available: UD Matt Finish – Laser Decal & UD Black Finish – White Decal
• Rim Width: 23mm internal / 28.4mm external
• Rim Depth: 35mm front & rear

Spokes

• 5.2mm Carbon wide-body spokes
• T-LOCK anti-rotation spoke nipples
• 20 pcs front / 21 pcs rear

Weight

• 1291g ±50g
• Max. System Weight: 130kg

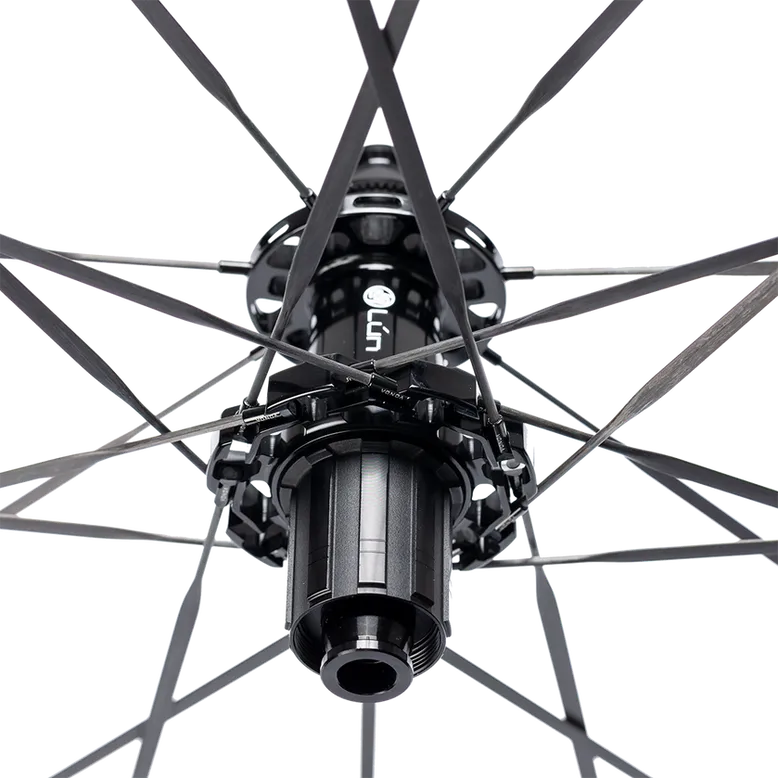

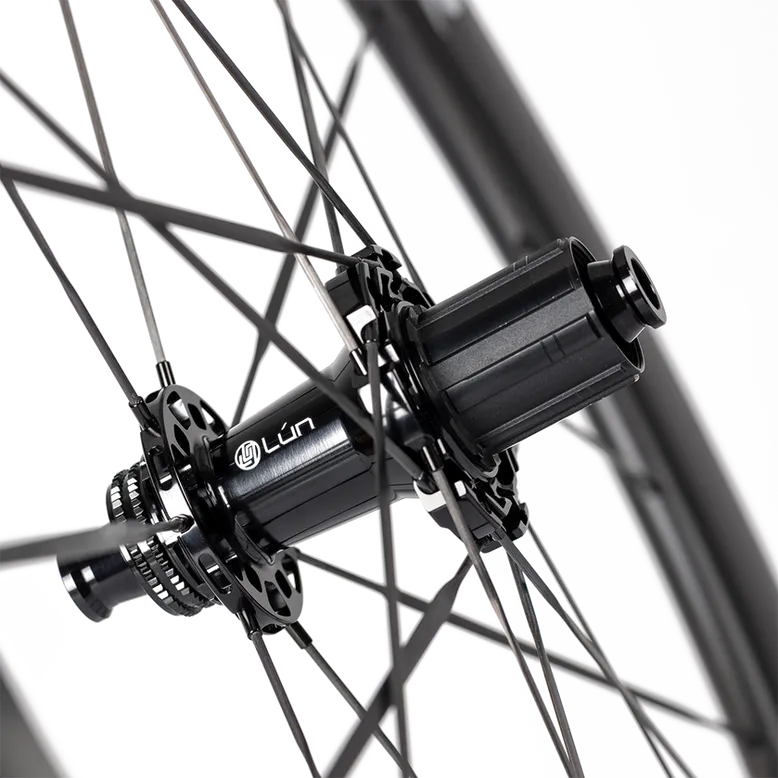

Hub Structure

• Titanium ratchet

Bearings

• NBS Ceramic

Freehub

• Shimano/ SRAM XDR/ Campagnolo N3W Compatible

Tire Info

• Tubeless / Clincher
• Size: 25mm Min. / 47mm Max.
• Tire Pressure: 120 psi Max.

Additional Features

Spoke Lacing Optimization

Improved from the 2/3 cross-laced pattern to a vertically aligned design for better load distribution.

Wind Tunnel Tested

Boasts need scientific validation to be credible. This time, we partnered with Japan FUDO Industry Inc. and conducted comprehensive wind tunnel tests on our HYPER 3. The results show that compared to the HYPER 23, the HYPER 3 saves 2.2 watts at a speed of 48km/h.

Wider, with Less Compromise

With updated manufacturing processes, the new hook edge is 47% shorter than the previous generation. Widening the inner rim width to 23mm, the new design can better accommodate 30mm or wider tires to form a better seal for optimizing tubeless performance.

Overall Performance Improved

While maintaining stiffness, we have reduced the weight of the 33/45 series by 35g and the 67 series by 16g—these are conservative estimates. At the same time, we’ve also improved stiffness across the board.

Wider & More Aero

Using our latest generation of wider carbon spokes, the Hyper 3 combs through the airflow more effectively to reduce wind resistance.

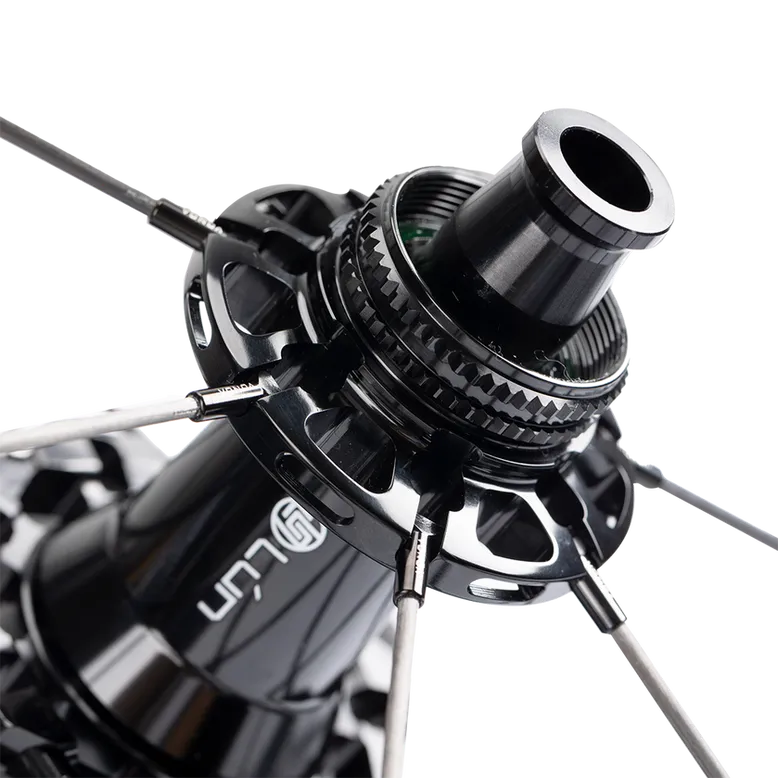

Lighter & Stronger Titanium Ratchet

Titanium is commonly used in aerospace and is touted for its high strength, lightweight, and abrasion resistance, being well-suited for the hub’s “lifetime” use.

Same Rim Profiles

Just like the HYPER 23 series, we offer 33, 45, and 67 rim profile versions, covering most riding scenarios.

F-RAPID Design

The Front and Rear Aero Profiles are Individually Designed to meet their unique demands.

• The front wheel is optimized for its leading edge performance, giving speed and stability in a variety of conditions with a more rounded rim profile.
• The rear wheel profile is taller and is optimized for lower yaw angles with an emphasis on trailing edge performance.

Tested by Pros, Approved by the UCI

Pro cyclists are the ultimate test for bike equipment. They only want the best performance, and they demand reliability. All our new products are tested extensively in both lab conditions and out in the real world.
