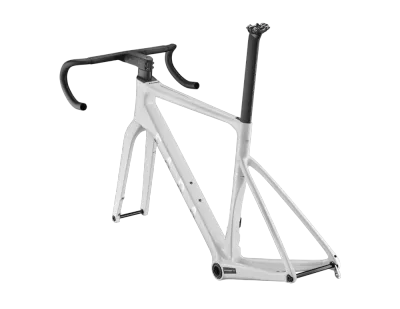

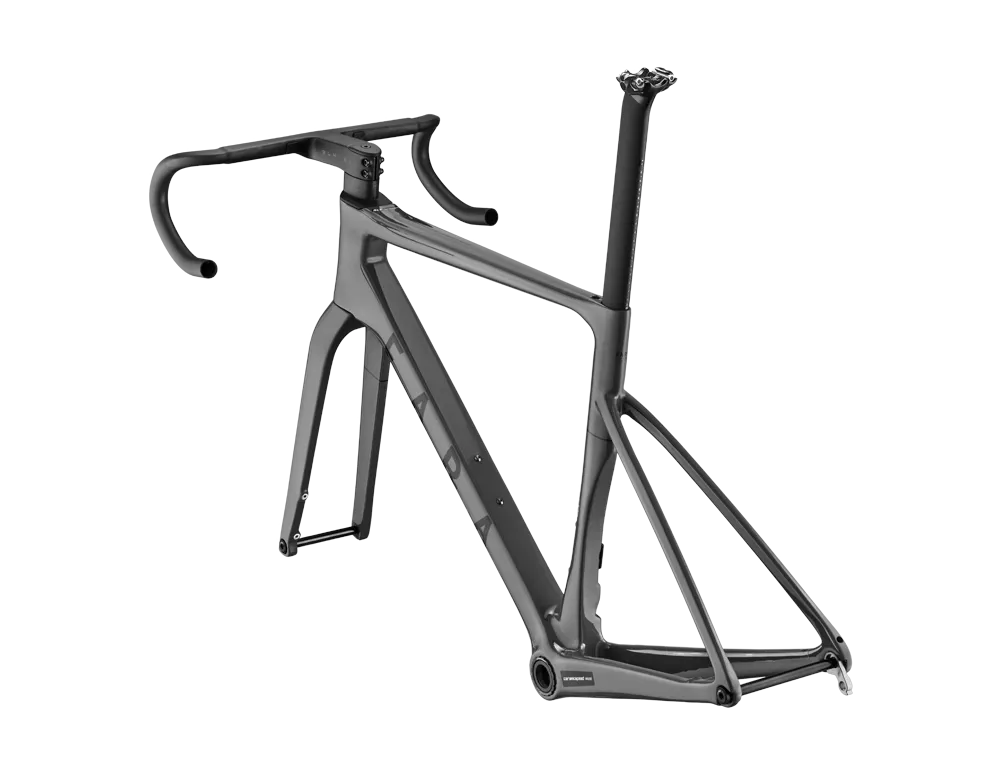

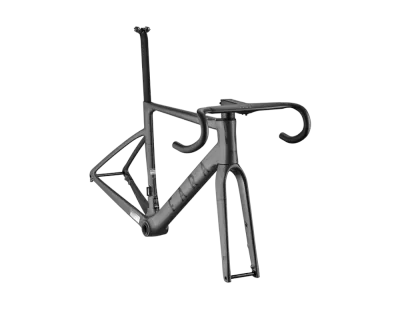

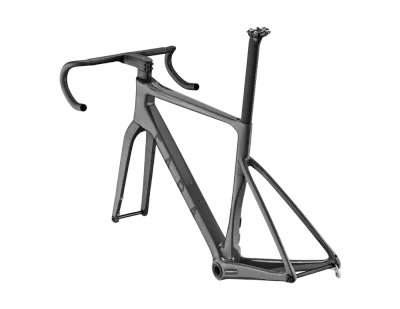

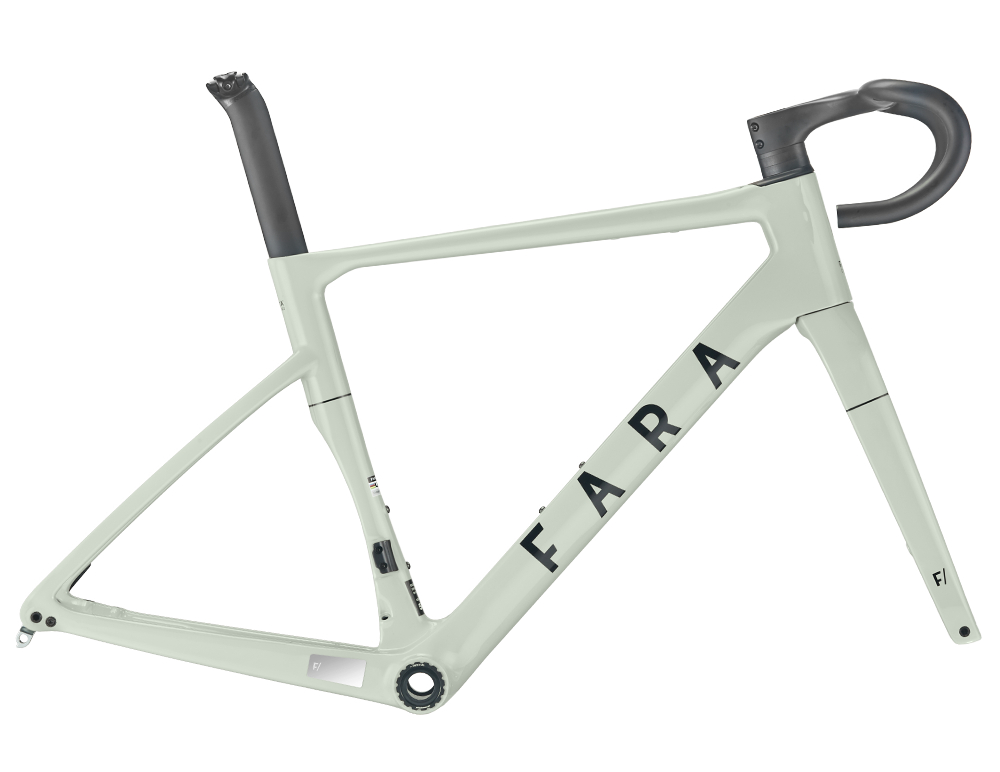

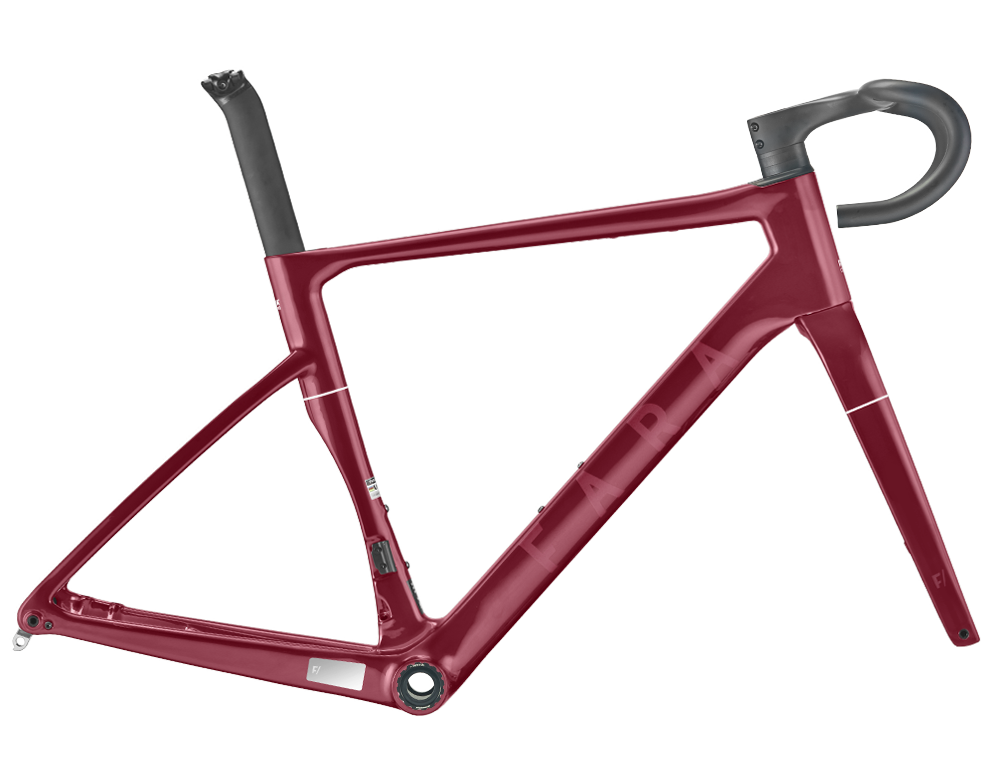

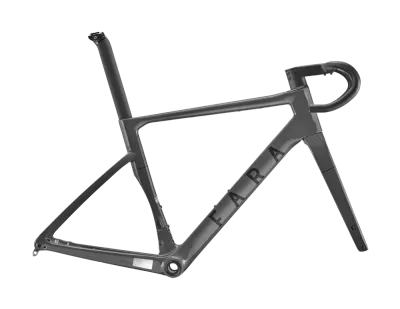

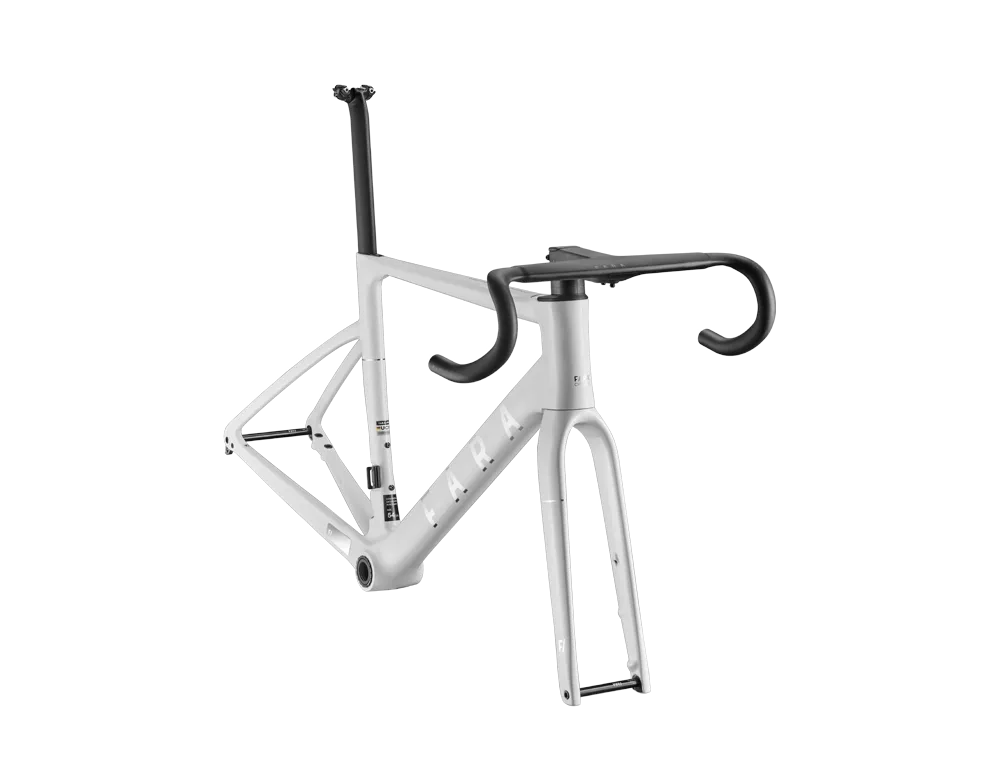

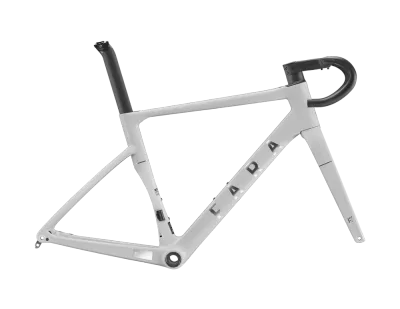

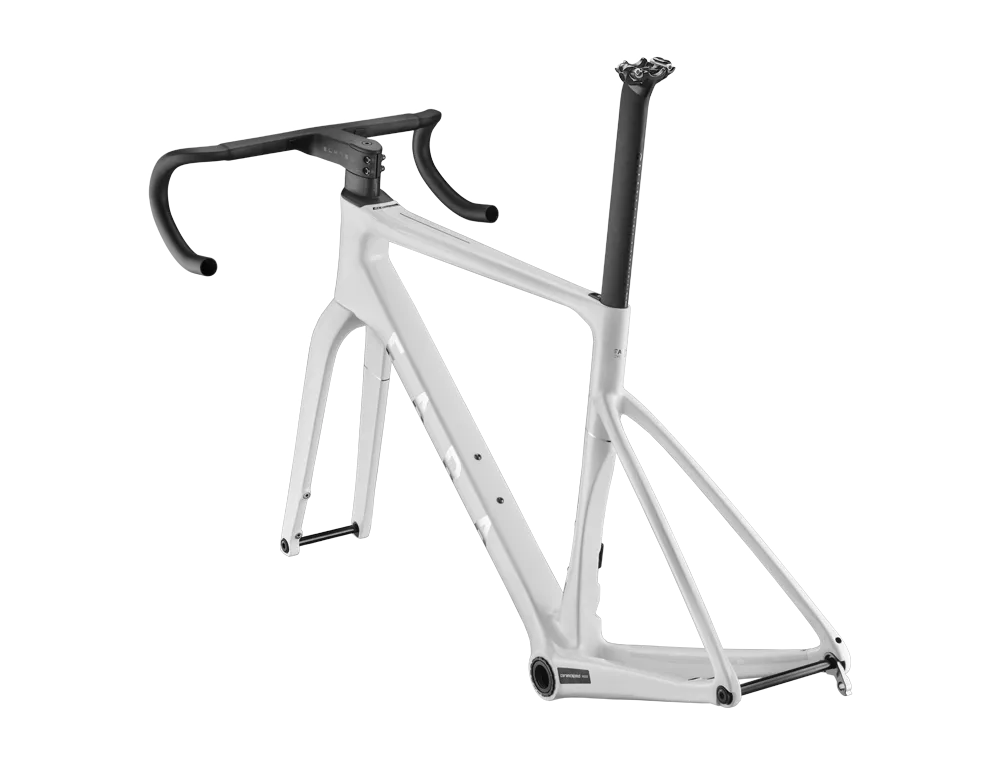

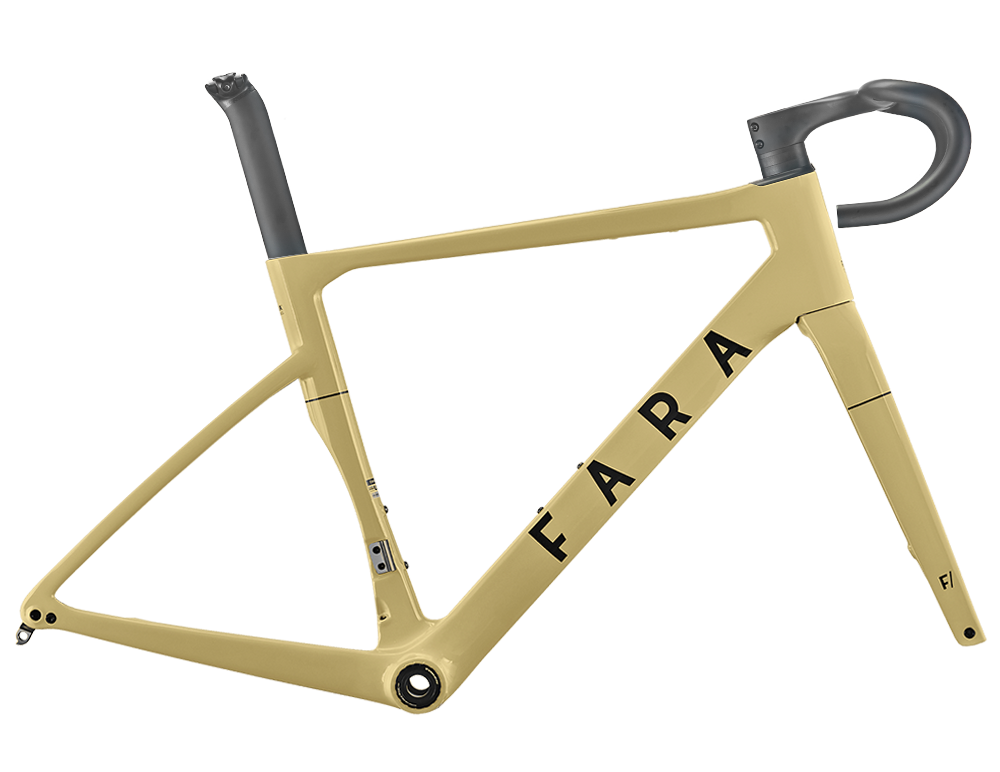

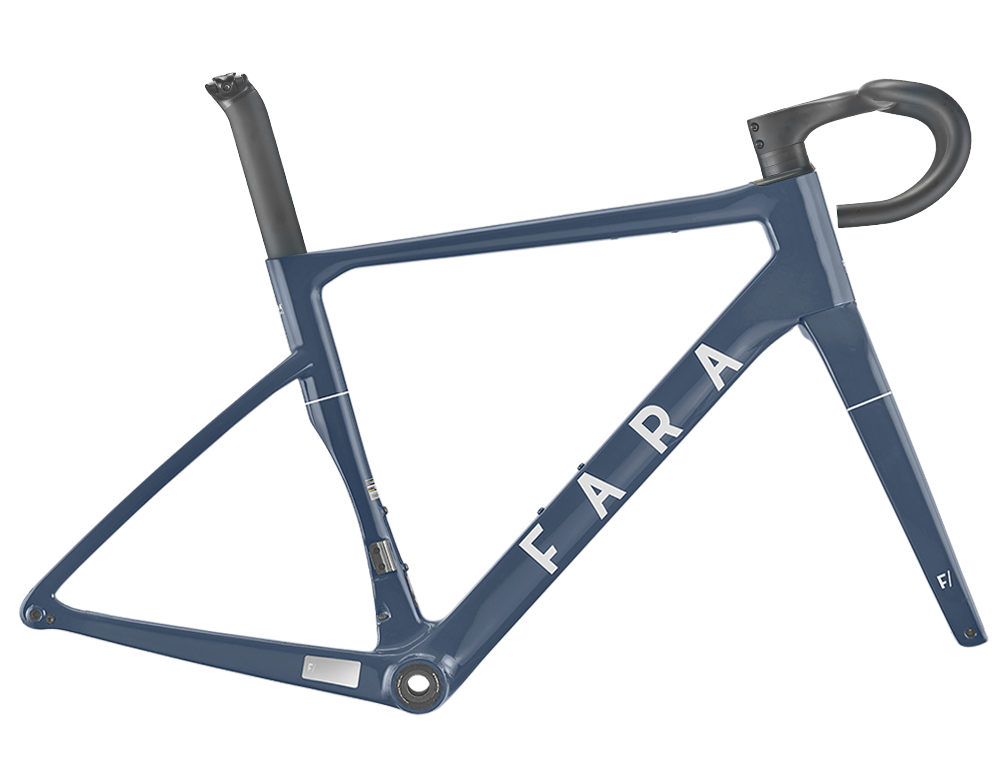

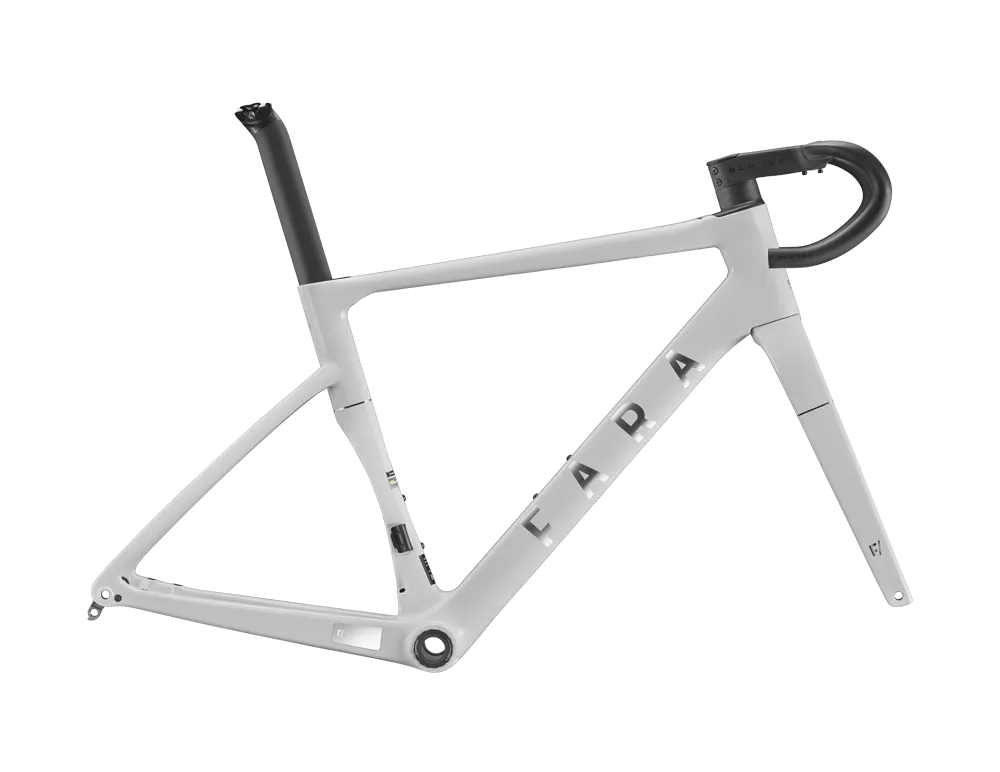

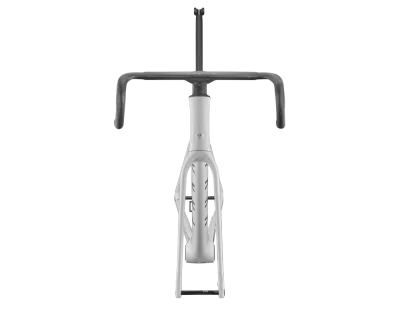

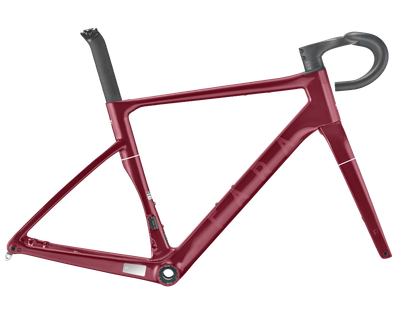

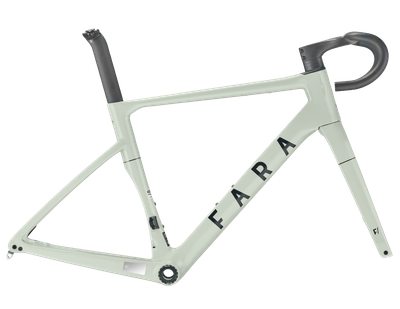

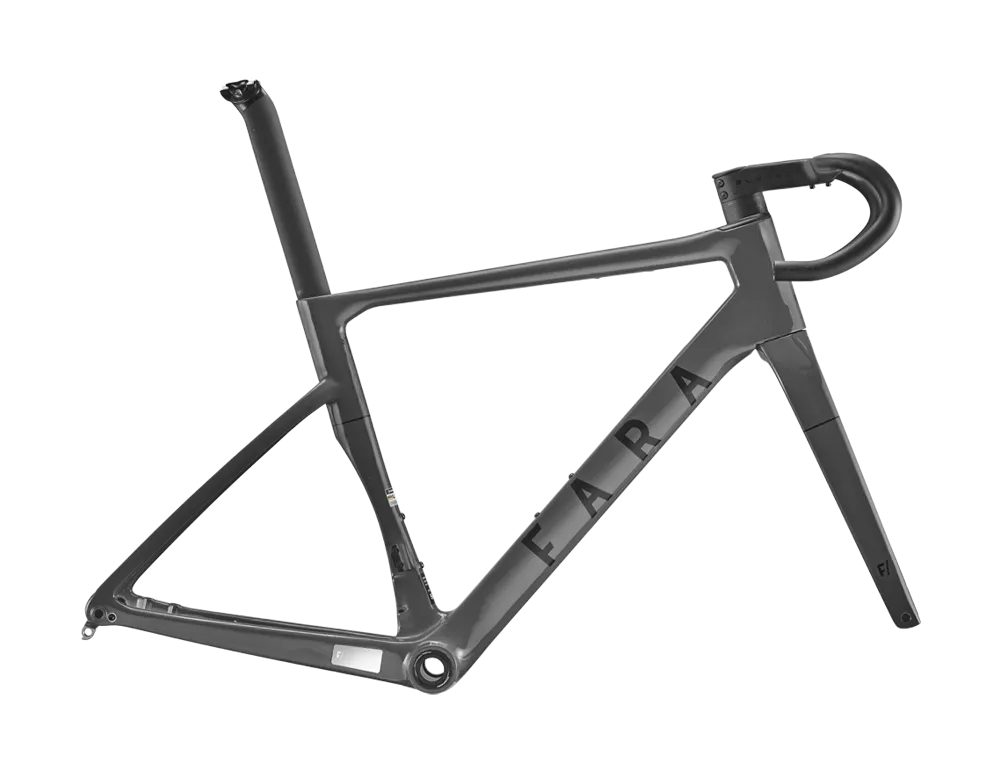

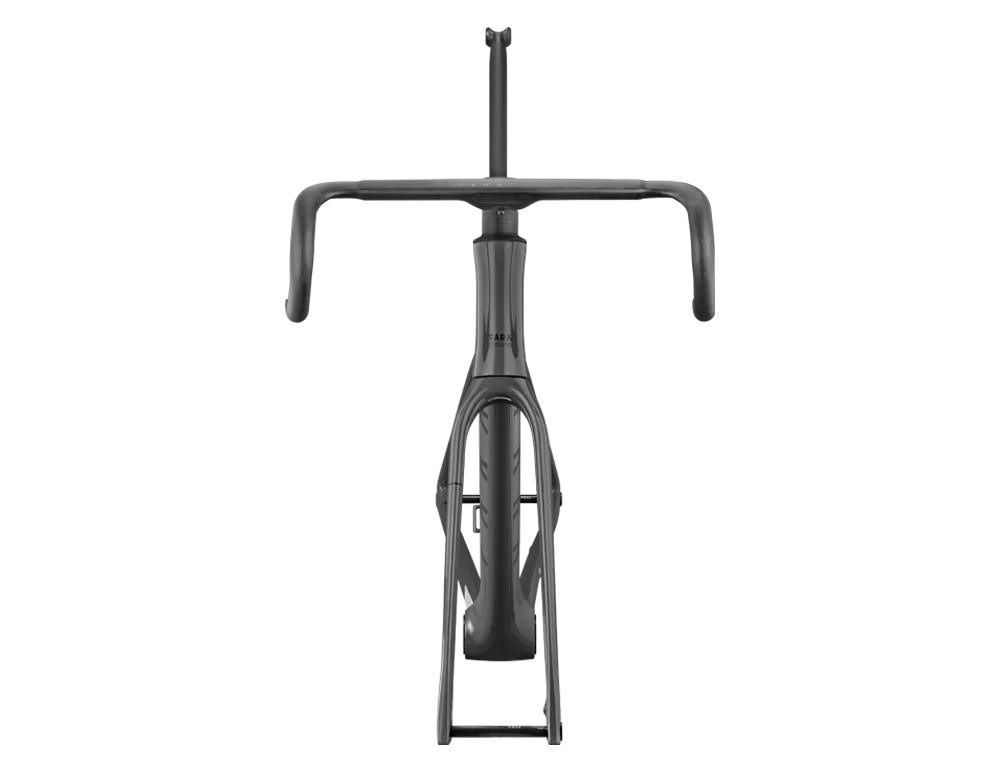

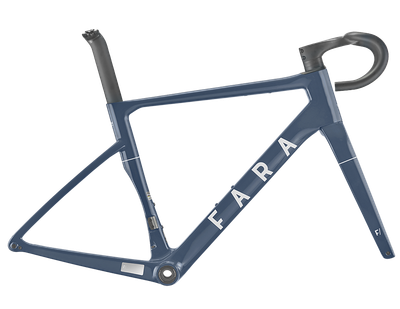

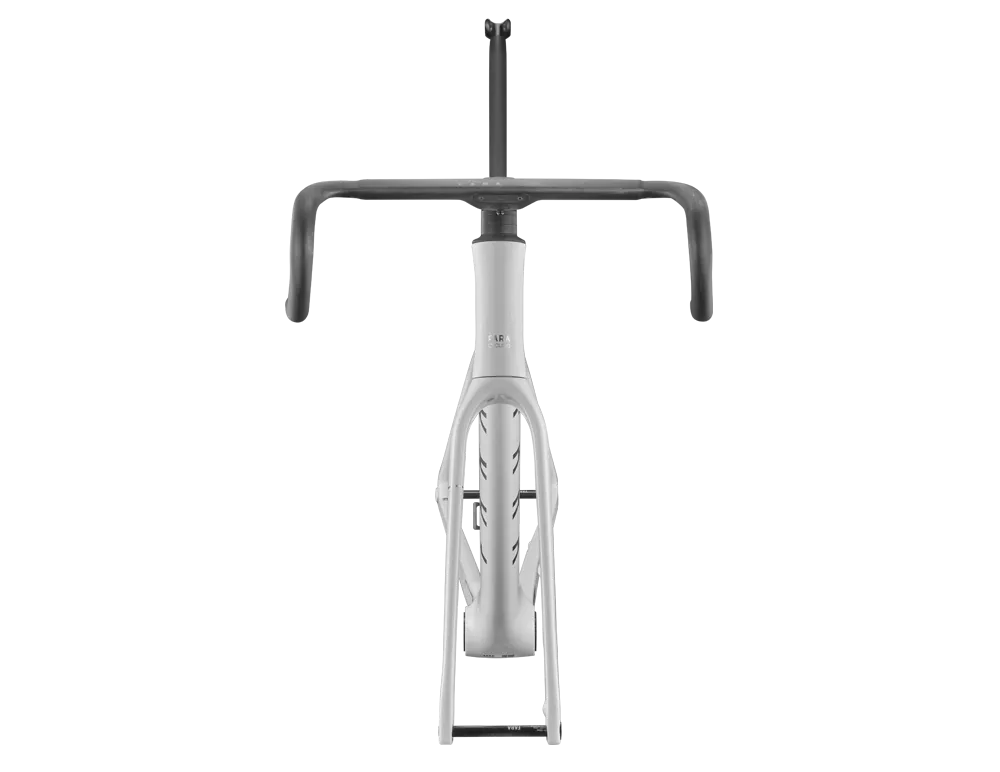

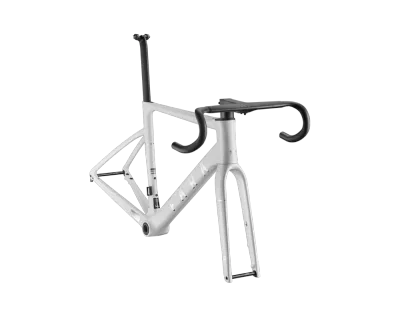

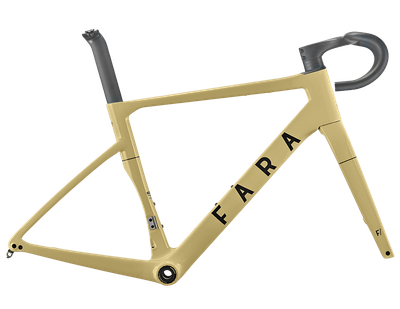

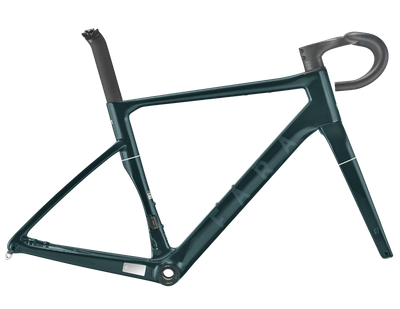

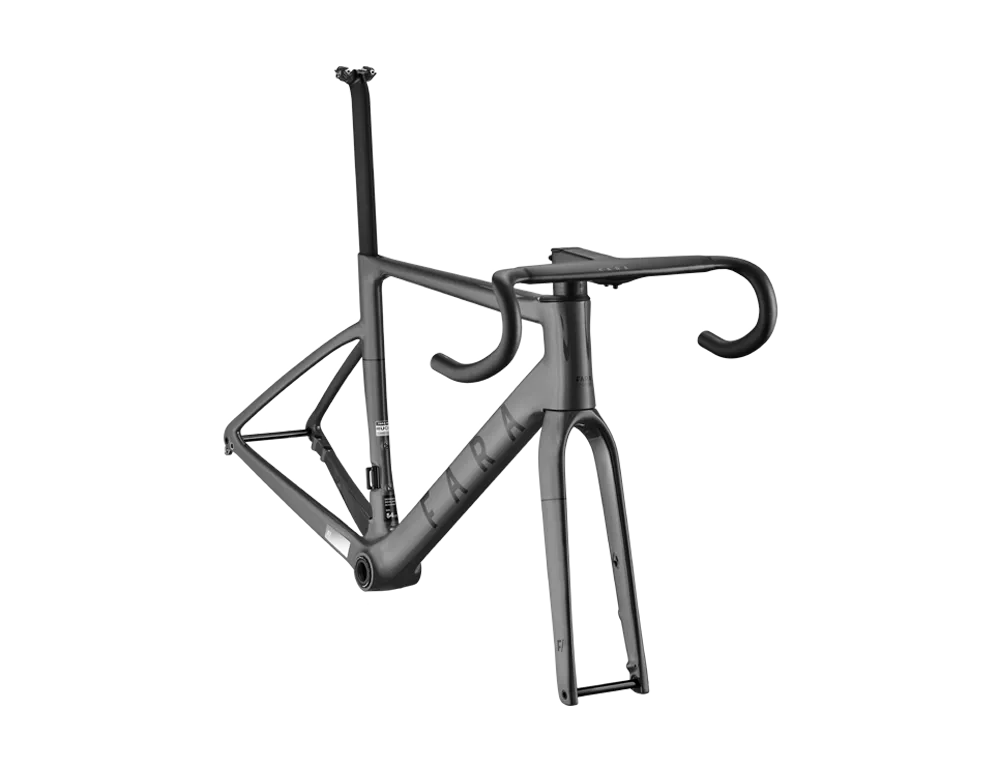

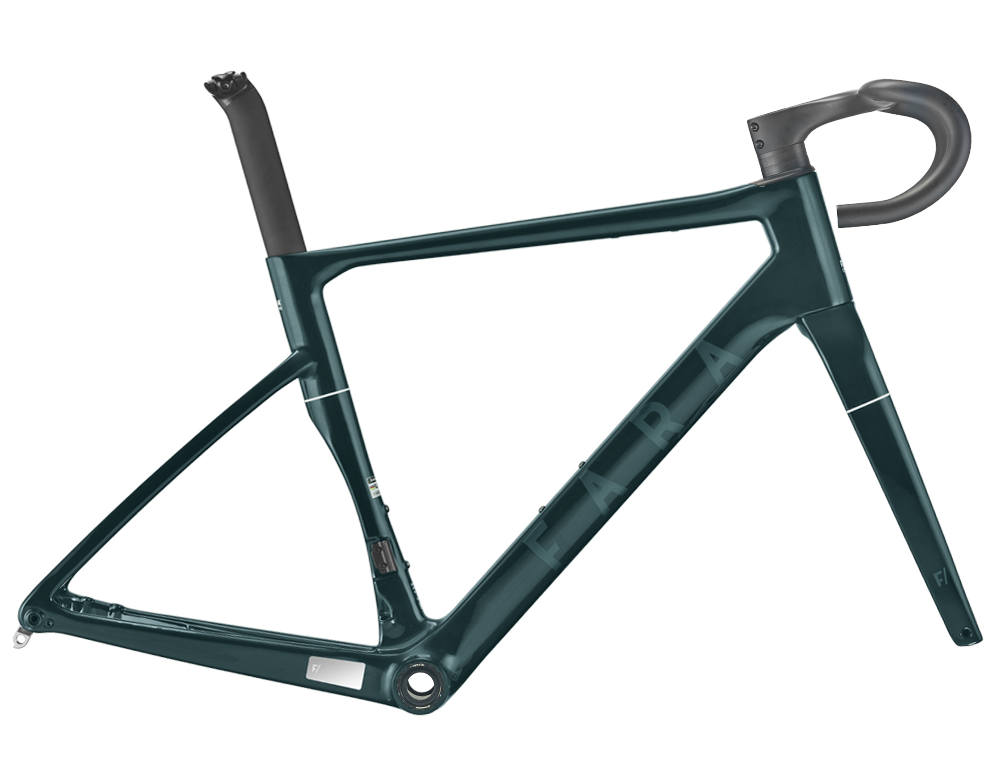

The F/Road is an all-round race bike that strikes a balance between aero-optimized tubing, precise handling, and being extremely lightweight. Increased vertical compliance ensures this performance design can go the distance. The frame composition is a result of in-house product development in collaboration with industry-leading frame designers.
THE DETAILS
• Lightweight TorayTM Carbon fiber frame
• NACA Airfoil tube
• Truncated NACA airfoils for optimal weight
• Aero-optimised fork legs
• Full internal cable routing
• All-round capabilities with 32mm tire clearance
• Hidden aero seat-post wedge
• Reversible aero seat post
• Intuitive fit road geometry

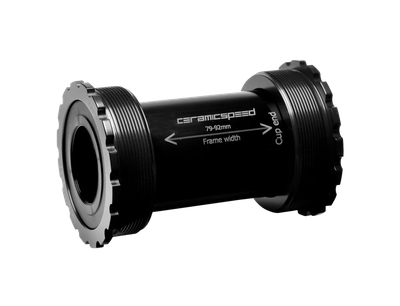

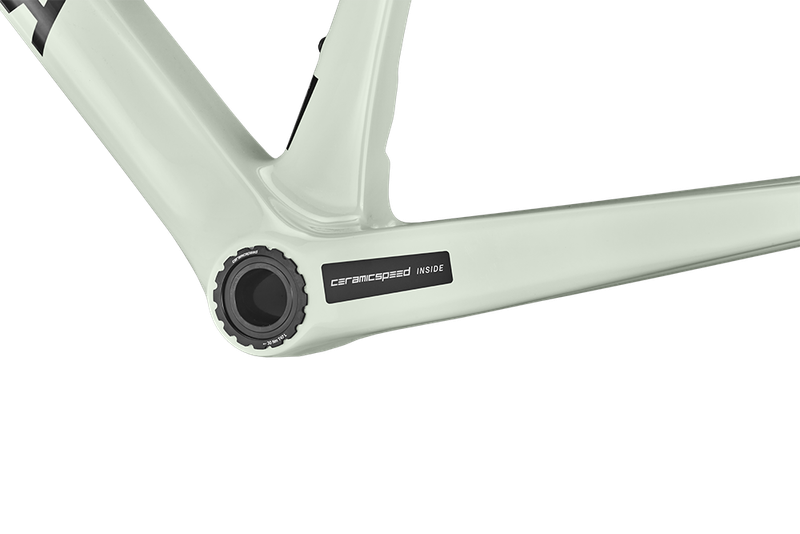

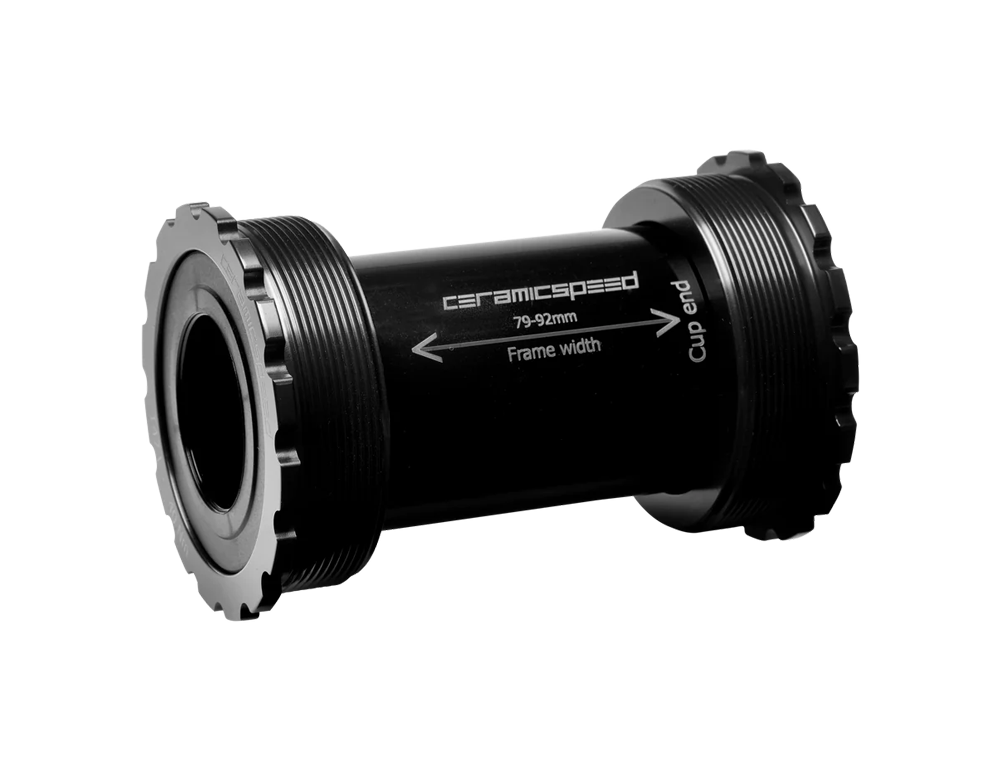

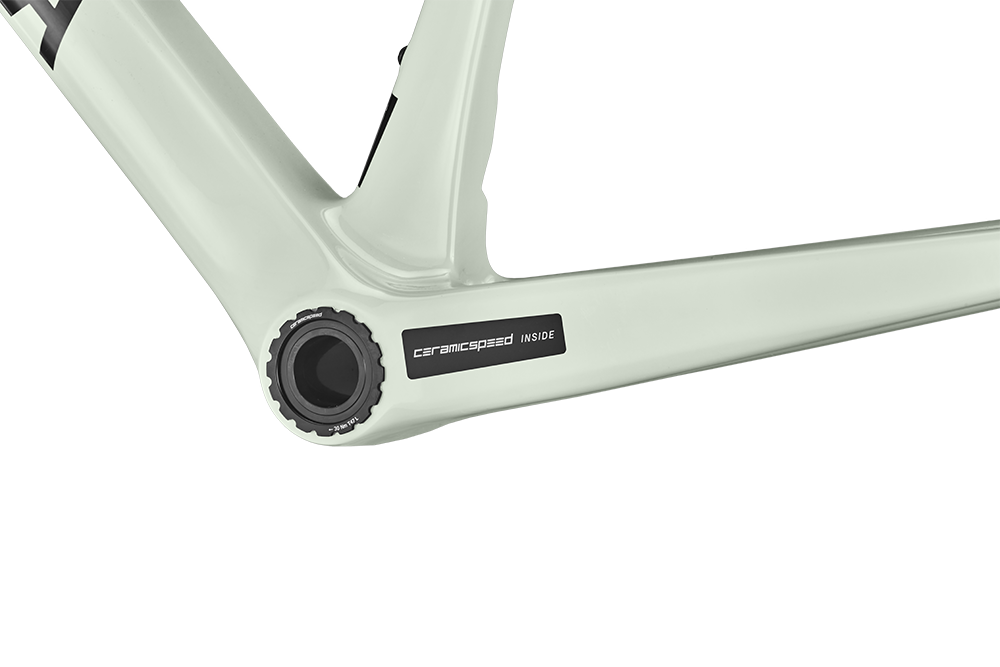

• T47 bottom bracket
• Curved seat-stays for increased comfort
• Cable routing for mechanical and electronic shifting
• UCI approved
5 sizes from 48cm to 59cm fit nearly every rider.
Whether you are 160cm or 200cm, the five size options can be adapted to provide you with optimal fit.
In addition, stack and reach increments rise evenly throughout the range, providing consistent fit on each and every size.
Fork offsets are adapted from the smallest to the largest sizes to ensure great ride quality for all and none of the dreaded toe-overlap.
Geometry
Size | XS 48cm |
S 51cm |
M 54cm |
L 56cm |
XL 59cm |
---|---|---|---|---|---|
A. Stand-over height | 727mm | 751mm | 768mm | 804mm | 834mm |
B. Front centre | 568mm | 578mm | 584mm | 587mm | 608mm |
C. Rear centre | 408mm | 408mm | 410mm | 410mm | 410mm |
D. Wheel base | 976mm | 986mm | 994mm | 997mm | 1018mm |
E. Top tube length | 512mm | 528mm | 547mm | 567mm | 588mm |
F. Stack | 505mm | 523mm | 545mm | 567mm | 596mm |
G. Reach | 372mm | 378mm | 386mm | 394mm | 406mm |
H. Head stack | 108mm | 126mm | 144mm | 166mm | 195mm |
I. Seat tube angle | 75° | 74° | 73° | 73° | 73° |
J. Head tube angle | 71° | 72° | 73° | 73° | 73° |
K. BB Center to the topof the seat tube | 446mm | 475mm | 482mm | 531mm | 562mm |
L. Max Seatpost insertion | 140mm | 160mm | 160mm | 160mm | 160mm |
