Name: Fara Gravel Element | Sram Apex XPLR
Brand: Fara
SKU: 947_sku_main
Price: 4939.0 CAD
Availability: PreOrder

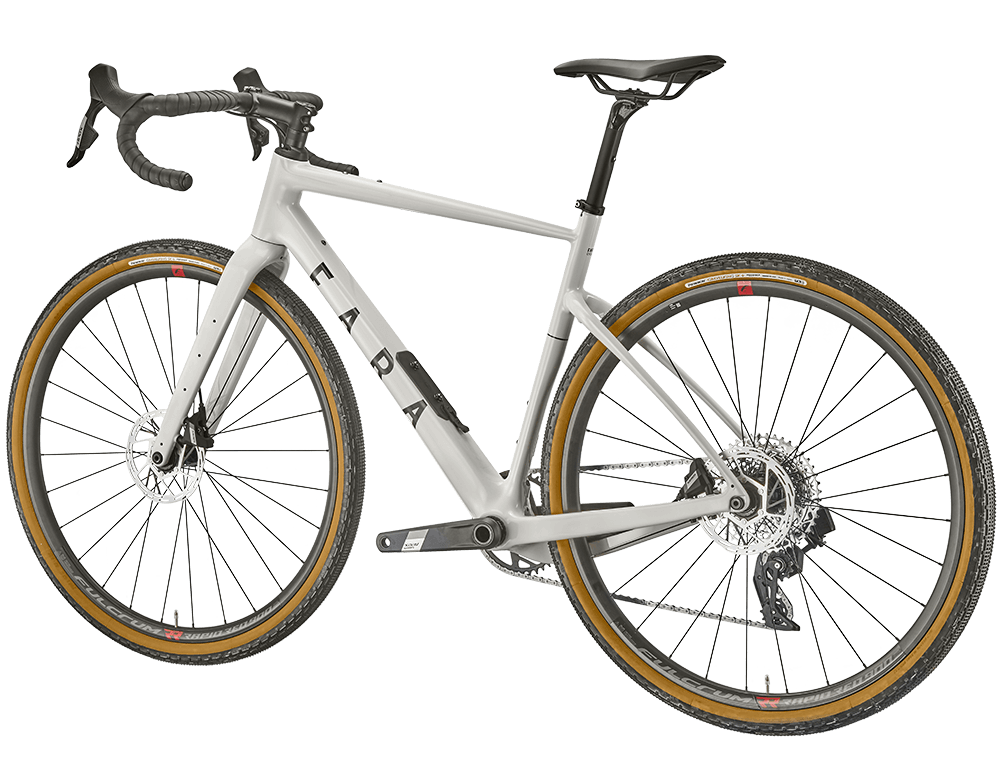

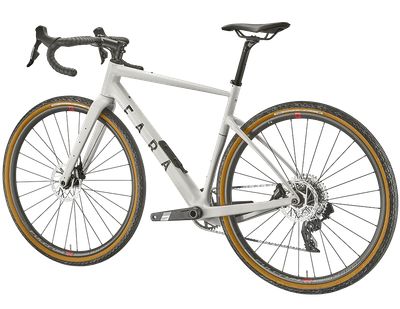

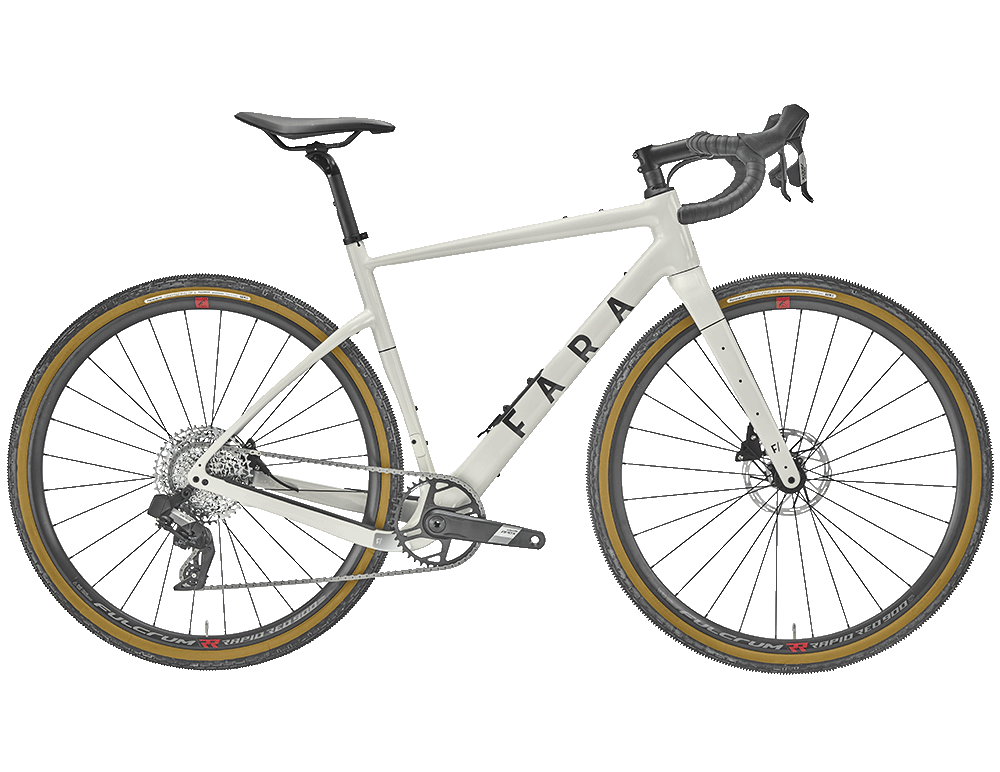

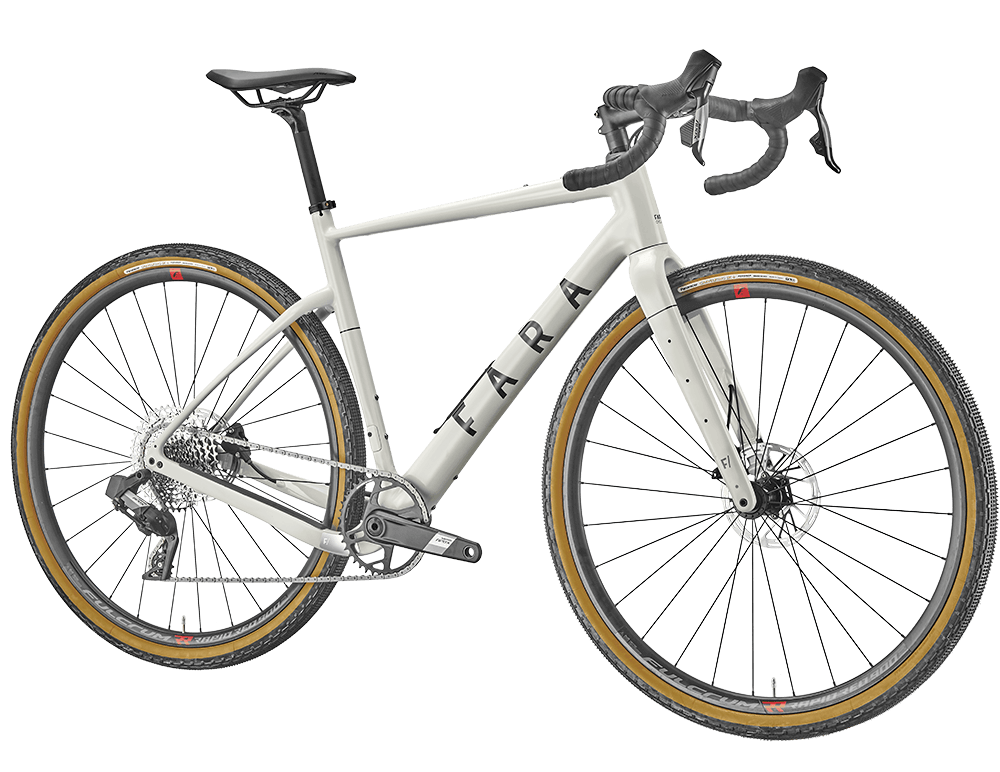

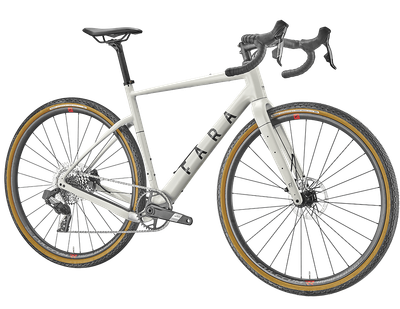

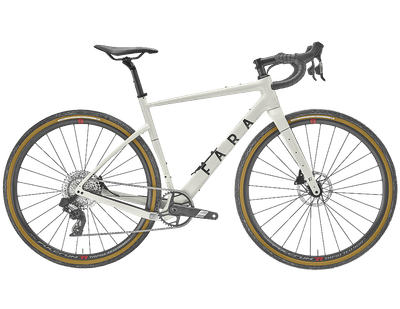

Fara Gravel Element | Sram Apex XPLR

Product Details

Brand: Fara

SRAM Apex XPLR electronic groupset - Fulcrum Rapid Red 900 alloy wheelset

Product Overview

The F/Gravel is your ultimate adventure bike, designed to handle nearly any type of off-road terrain with confidence and comfort. Its nimble frameset and 50mm tire clearance make it perfect for rough terrains, while its capability to handle tarmac transfers ensures versatility. However, for riders who stick primarily to dirt roads or tarmac, the F/All-Road bike may be a better option.

Key Features

Electronic shifting for effortless gear changes.

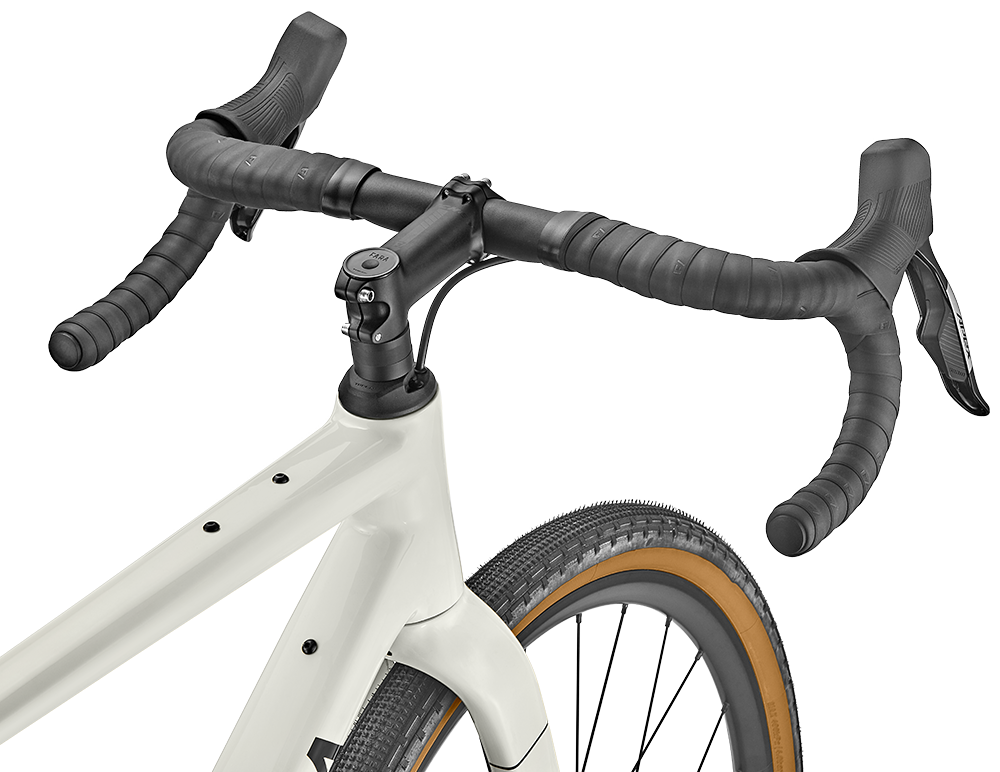

Gravel-specific handlebars for enhanced control.
Internal cable routing for a clean, streamlined look.
Up to 50mm tire clearance for tackling rough terrain.
Lightweight 1050g frame weight for improved agility.

Adventure-Ready Design

The F/Gravel is equipped with an integrated baggage system, a stash hatch, and a full set of mounts, making it the ideal bike for bikepacking and extended adventures. Its versatility ensures that the limits of your journey are nearly endless.

Technical Specifications

Frameset: F/Gravel Toray carbon
Headset: Fara/Token S-Box (semi-integrated)
Bottom Bracket: Token Ninja, T47 85.5mm, DUB 29mm

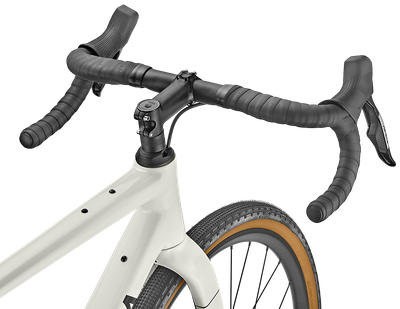

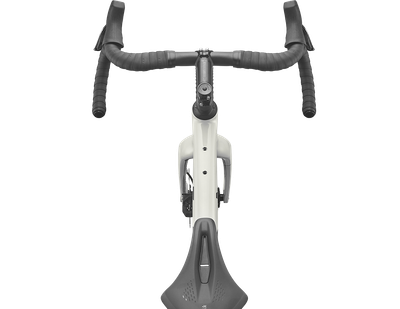

Cockpit: Ritchey Butano alloy, 12° flare

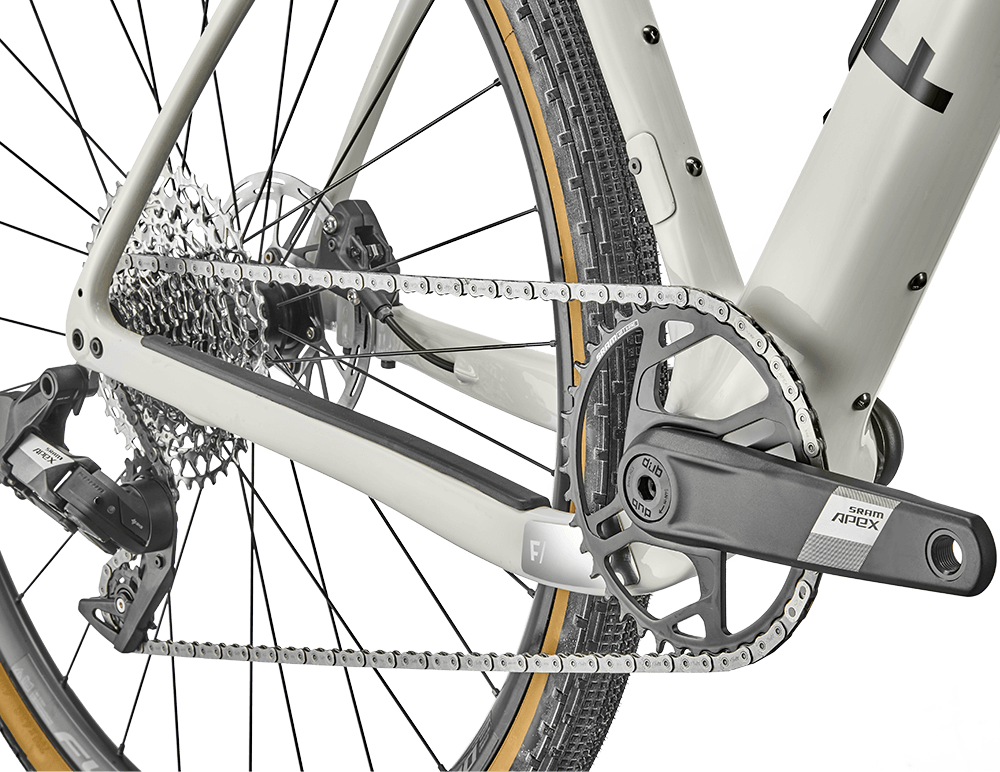

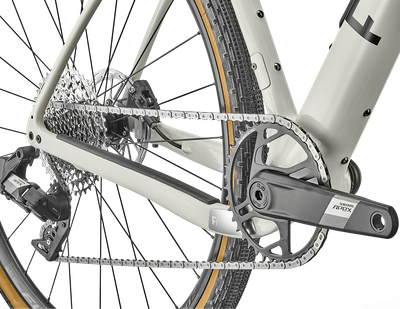

Groupset: SRAM Apex AXS XPLR 1x12s, 40t w. 11-44t cassette
Wheelset: Fulcrum Rapid Red 900 w. Panaracer Gravelking 700x43SK+
Saddle: Fizik Terra Argo X5, 150mm, S-Alloy rails

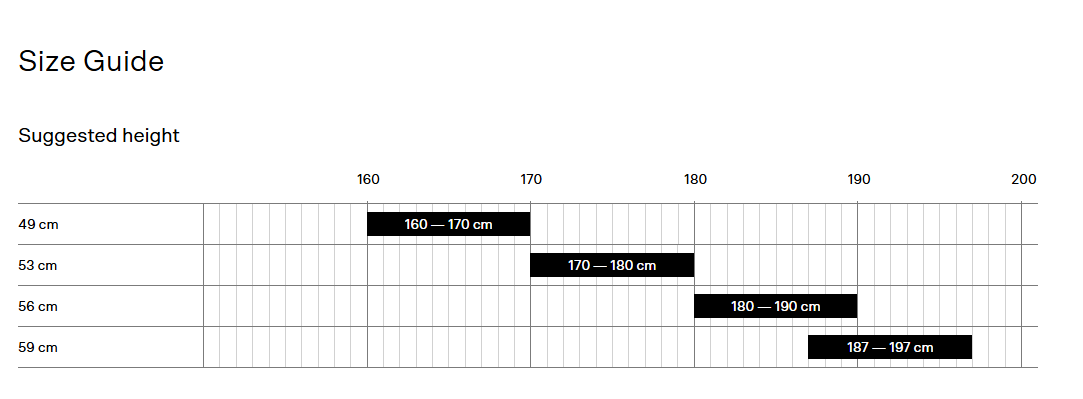

Size Specific Specification: 49cm

1 x Cockpit - Ritchey WCS Butano V2 Aluminium / Stem Length: 90mm / Handlebar Width: 40cm

1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black

1 x Stem - COMP 4-AXIS-44 84/6D, 90mm

1 x Handlebar - ROAD WCS BUTANO V2 Internal Routing 12deg Flare, 40cm

1 x Bottom Bracket - Token T47V29-TS T47

1 x Saddle - Fizik TERRA ARGO X5 - 150mm

1 x Groupset - SRAM Apex AXS XPLR 1x12s / Crank Length: 170mm / BB Type: Standalone / Gear Ratio: 40T W. 11-44T

1 x Brake/shift Set - SRAM APEX AXS, ED APX AXS D1 SJD REAR/RT F0 2000

1 x Rear Derailleur - RD SRAM APEX XPLR AXS D1 MAX 44T

1 x Battery/charger Set - POWERPACK 1 BATTERY / Type: 1 Charger + 1 Battery

1 x Chain - CN SRAM APEX D1 12S 120LI

1 x Cassette - SRAM Apex CS PG 1231 D1 XPLR 11-44

2 x Disc Brake Rotor - DB ROTOR CENTERLOCK PACELINE 160 ROUNDED

1 x Brake/shift Set - SRAM APEX AXS, ED APX AXS D1 SJD FRT/LFT F0 1000

1 x Front Chainring - FC SRAM APEX 1 D1 DUB WIDE 170 40 STL

1 x Frameset - F/GR / Color: Off-White / Size: 49 / Cockpit Integration: Semi-integrated

1 x Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM

1 x Frameset - F/GR / Size: 49 / Color: Off-White

2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm

1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13

1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Off-White

1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits

1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm

1 x Rolling Tool Bag/ FARA Cycling Logo

1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon

1 x Fork - F/GR3 / Color: Off-White

1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver

1 x Frame - F/GR3 / Color: Off-White / Size: 49

2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing

1 x Bridge - F/GR, AL6061, CNC, Anodized Deep Sliver

1 x Stash Hatch - F/GR3 Stash Hatch / Black W/ F/ Icon

1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13

1 x Stash Hatch - F/GR3 Stash Hatch Bag / Black W/ F/ Icon

1 x RD Hanger - AL6061, CNC, Anodized Deep Silver

2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black

3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm

2 x Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM

1 x HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black

1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.

1 x Expander - Token - Expander W. Top Cap F/ Logo Alu

1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock

1 x Wheelset - Fulcrum RAPID RED 900 700c DB / Frame Model: F/GR / Groupset: SRAM / Tyre Size/type: 43SK

1 x RAPID RED 900 2WF-R C22 AFS / HG11

2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 40mm

2 x Tyre - Panaracer GRAVEL KING SK+ - Knobby, 700x43

Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.

Size Specific Specification: 53cm

1 x Groupset - SRAM Apex AXS XPLR 1x12s / Crank Length: 172.5mm / BB Type: Standalone / Gear Ratio: 40T W. 11-44T

1 x Brake/shift Set - SRAM APEX AXS, ED APX AXS D1 SJD FRT/LFT F0 1000

1 x Cassette - SRAM Apex CS PG 1231 D1 XPLR 11-44

2 x Disc Brake Rotor - DB ROTOR CENTERLOCK PACELINE 160 ROUNDED

1 x Chain - CN SRAM APEX D1 12S 120LI

1 x Front Chainring - FC SRAM APEX 1 D1 DUB WIDE 1725 40 STL

1 x Rear Derailleur - RD SRAM APEX XPLR AXS D1 MAX 44T

1 x Brake/shift Set - SRAM APEX AXS, ED APX AXS D1 SJD REAR/RT F0 2000

1 x Battery/charger Set - POWERPACK 1 BATTERY / Type: 1 Charger + 1 Battery

1 x Frameset - F/GR / Color: Off-White / Size: 53 / Cockpit Integration: Semi-integrated

1 x Expander - Token - Expander W. Top Cap F/ Logo Alu

2 x Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM

1 x HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black

1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.

1 x Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM

1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock

1 x Frameset - F/GR / Size: 53 / Color: Off-White

1 x Frame - F/GR3 / Color: Off-White / Size: 53

1 x Rolling Tool Bag/ FARA Cycling Logo

1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm

1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver

3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm

2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing

2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm

1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon

1 x RD Hanger - AL6061, CNC, Anodized Deep Silver

1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits

2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black

1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Off-White

1 x Fork - F/GR3 / Color: Off-White

1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13

1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13

1 x Stash Hatch - F/GR3 Stash Hatch / Black W/ F/ Icon

1 x Stash Hatch - F/GR3 Stash Hatch Bag / Black W/ F/ Icon

1 x Bridge - F/GR, AL6061, CNC, Anodized Deep Sliver

1 x Saddle - Fizik TERRA ARGO X5 - 150mm

1 x Bottom Bracket - Token T47V29-TS T47

1 x Wheelset - Fulcrum RAPID RED 900 700c DB / Frame Model: F/GR / Groupset: SRAM / Tyre Size/type: 43SK

1 x RAPID RED 900 2WF-R C22 AFS / HG11

2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 40mm

2 x Tyre - Panaracer GRAVEL KING SK+ - Knobby, 700x43

1 x Cockpit - Ritchey WCS Butano V2 Aluminium / Stem Length: 100mm / Handlebar Width: 42cm

1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black

1 x Stem - COMP 4-AXIS-44 84/6D, 100mm

1 x Handlebar - ROAD WCS BUTANO V2 Internal Routing 12deg Flare, 42cm

Size Specific Specification: 56cm

1 x Groupset - SRAM Apex AXS XPLR 1x12s / Crank Length: 172.5mm / BB Type: Standalone / Gear Ratio: 40T W. 11-44T

1 x Brake/shift Set - SRAM APEX AXS, ED APX AXS D1 SJD FRT/LFT F0 1000

1 x Cassette - SRAM Apex CS PG 1231 D1 XPLR 11-44

2 x Disc Brake Rotor - DB ROTOR CENTERLOCK PACELINE 160 ROUNDED

1 x Chain - CN SRAM APEX D1 12S 120LI

1 x Front Chainring - FC SRAM APEX 1 D1 DUB WIDE 1725 40 STL

1 x Rear Derailleur - RD SRAM APEX XPLR AXS D1 MAX 44T

1 x Brake/shift Set - SRAM APEX AXS, ED APX AXS D1 SJD REAR/RT F0 2000

1 x Battery/charger Set - POWERPACK 1 BATTERY / Type: 1 Charger + 1 Battery

1 x Saddle - Fizik TERRA ARGO X5 - 150mm

1 x Cockpit - Ritchey WCS Butano V2 Aluminium / Stem Length: 100mm / Handlebar Width: 42cm

1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black

1 x Stem - COMP 4-AXIS-44 84/6D, 100mm

1 x Handlebar - ROAD WCS BUTANO V2 Internal Routing 12deg Flare, 42cm

1 x Bottom Bracket - Token T47V29-TS T47

1 x Frameset - F/GR / Color: Off-White / Size: 56 / Cockpit Integration: Semi-integrated

1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock

1 x Frameset - F/GR / Size: 56 / Color: Off-White

1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Off-White

1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver

1 x Rolling Tool Bag/ FARA Cycling Logo

1 x Fork - F/GR3 / Color: Off-White

1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13

1 x RD Hanger - AL6061, CNC, Anodized Deep Silver

1 x Frame - F/GR3 / Color: Off-White / Size: 56

1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon

3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm

1 x Stash Hatch - F/GR3 Stash Hatch Bag / Black W/ F/ Icon

1 x Bridge - F/GR, AL6061, CNC, Anodized Deep Sliver

2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing

2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black

2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm

1 x Stash Hatch - F/GR3 Stash Hatch / Black W/ F/ Icon

1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits

1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm

1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13

1 x Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM

1 x HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black

1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.

2 x Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM

1 x Expander - Token - Expander W. Top Cap F/ Logo Alu

1 x Wheelset - Fulcrum RAPID RED 900 700c DB / Frame Model: F/GR / Groupset: SRAM / Tyre Size/type: 43SK

1 x RAPID RED 900 2WF-R C22 AFS / HG11

2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 40mm

2 x Tyre - Panaracer GRAVEL KING SK+ - Knobby, 700x43

Size Specific Specification: 59cm

1 x Groupset - SRAM Apex AXS XPLR 1x12s / Crank Length: 172.5mm / BB Type: Standalone / Gear Ratio: 40T W. 11-44T

1 x Brake/shift Set - SRAM APEX AXS, ED APX AXS D1 SJD FRT/LFT F0 1000

1 x Cassette - SRAM Apex CS PG 1231 D1 XPLR 11-44

2 x Disc Brake Rotor - DB ROTOR CENTERLOCK PACELINE 160 ROUNDED

1 x Chain - CN SRAM APEX D1 12S 120LI

1 x Front Chainring - FC SRAM APEX 1 D1 DUB WIDE 1725 40 STL

1 x Rear Derailleur - RD SRAM APEX XPLR AXS D1 MAX 44T

1 x Brake/shift Set - SRAM APEX AXS, ED APX AXS D1 SJD REAR/RT F0 2000

1 x Battery/charger Set - POWERPACK 1 BATTERY / Type: 1 Charger + 1 Battery

1 x Bottom Bracket - Token T47V29-TS T47

1 x Cockpit - Ritchey WCS Butano V2 Aluminium / Stem Length: 100mm / Handlebar Width: 44cm

1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black

1 x Handlebar - ROAD WCS BUTANO V2 Internal Routing 12deg Flare, 44cm

1 x Stem - COMP 4-AXIS-44 84/6D, 100mm

1 x Frameset - F/GR / Color: Off-White / Size: 59 / Cockpit Integration: Semi-integrated

2 x Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM

1 x Expander - Token - Expander W. Top Cap F/ Logo Alu

1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.

1 x Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM

1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock

1 x Frameset - F/GR / Size: 59 / Color: Off-White

1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits

3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm

1 x Stash Hatch - F/GR3 Stash Hatch Bag / Black W/ F/ Icon

1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver

1 x Fork - F/GR3 / Color: Off-White

1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13

2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm

2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black

1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13

1 x Rolling Tool Bag/ FARA Cycling Logo

1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Off-White

1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon

1 x Stash Hatch - F/GR3 Stash Hatch / Black W/ F/ Icon

2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing

1 x Frame - F/GR3 / Color: Off-White / Size: 59

1 x RD Hanger - AL6061, CNC, Anodized Deep Silver

1 x Bridge - F/GR, AL6061, CNC, Anodized Deep Sliver

1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm

1 x HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black

1 x Wheelset - Fulcrum RAPID RED 900 700c DB / Frame Model: F/GR / Groupset: SRAM / Tyre Size/type: 43SK

1 x RAPID RED 900 2WF-R C22 AFS / HG11

2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 40mm

2 x Tyre - Panaracer GRAVEL KING SK+ - Knobby, 700x43

1 x Saddle - Fizik TERRA ARGO X5 - 150mm

The Details

Features

• Toray Carbon fibre frame and fork construction

• Frame weight 1050g weight

• Fully internal cable routing

• Curved seat stays for increased comfort

• Integrated Stash-Hatch

• Integrated Bikepacking System

• Universal 27.2mm round seatpost

• T47 Bottom bracket

• Wide tire capabilities up to 700x50mm

• Integrated fender mounts

• Triple fork cargo mounts

• Direct mount front brake for 160mm rotors

• 12mm thru axles

Size

4 sizes to fit nearly every rider

Our F/Gravel size range starts from 49cm to fit smaller riders down to 160cm tall and up to size 59cm for riders up to 195cm. The four size options are ideally suited to provide you with an optimal fit.

In addition, stack and reach increments rise evenly throughout the range, providing consistent fit on each and every size. Fork offsets are adapted from the smallest to the largest sizes to ensure great ride quality for all and none of the dreaded toe-overlap.

Geometry

Size	S 49cm	M 53cm	L 56cm	XL 59cm
A. Stand-over height	731mm	762mm	798mm	824mm
B. Front centre	605mm	618mm	635mm	653mm
C. Rear centre	425mm	425mm	425mm	425mm
D. Wheel base	1017mm	1028mm	1043mm	1061mm
E. Top tube length	532mm	559mm	576mm	593mm
F. Stack	550mm	570mm	590mm	610mm
G. Reach	377mm	386mm	396mm	407mm
H. Head stack	119mm	138mm	159mm	180mm
I. Seat tube angle	74°	73°	73°	73°
J. Head tube angle	71°	72°	72°	72°
K. BB Center to the topof the seat tube	498mm	521mm	557mm	579mm
L. Max Seatpost insertion	180mm	180mm	220mm	240mm

FALL CLEAROUT: 25% OFF Running & Cycling Shoes

SHOP NOW

FALL CLEAROUT: UP TO 50% OFF Apparel In-Stock

SHOP NOW
