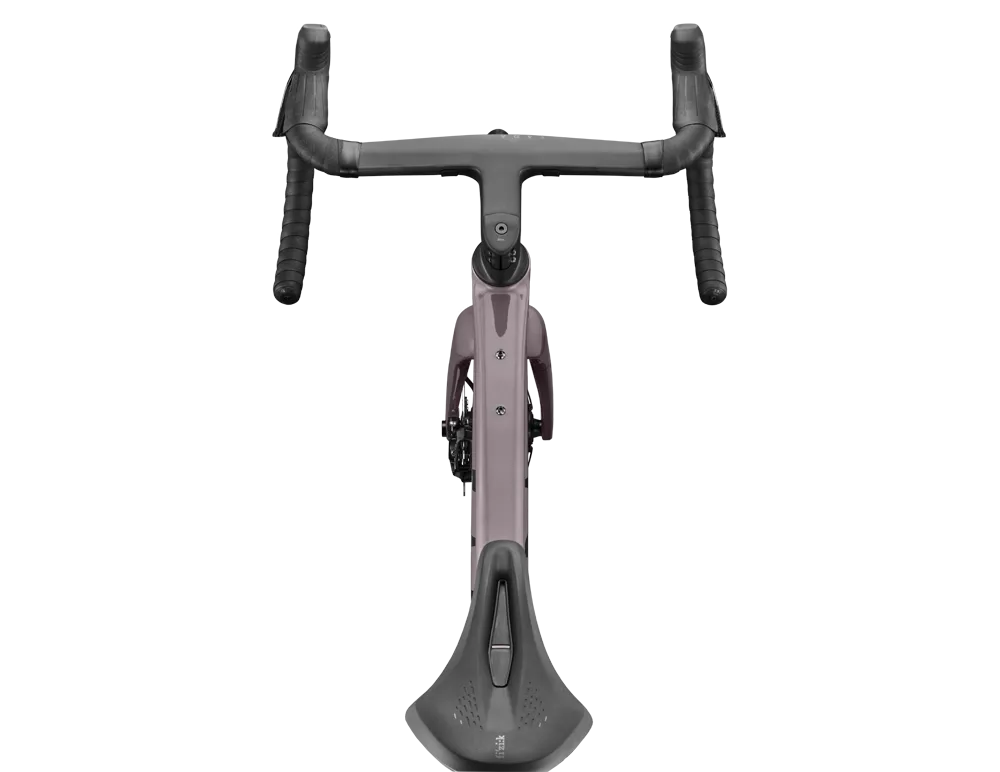

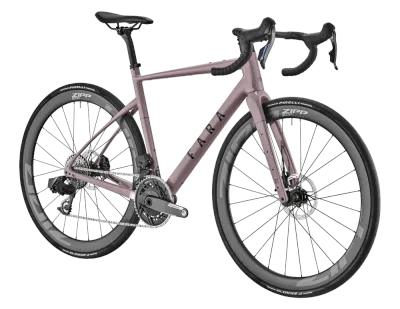

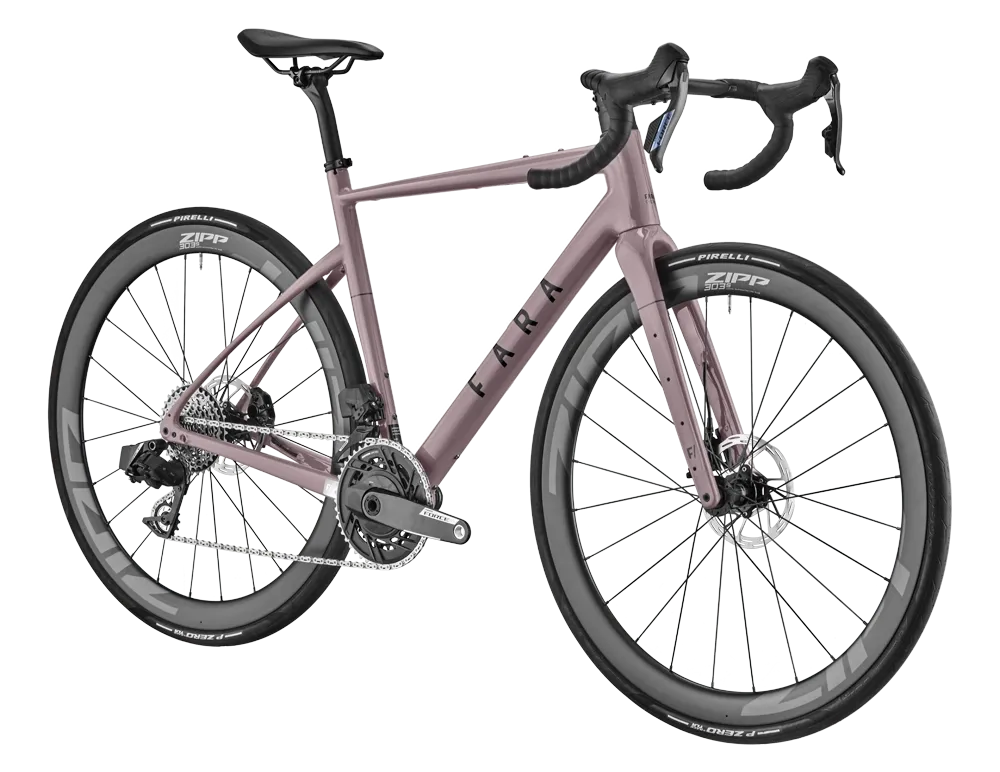

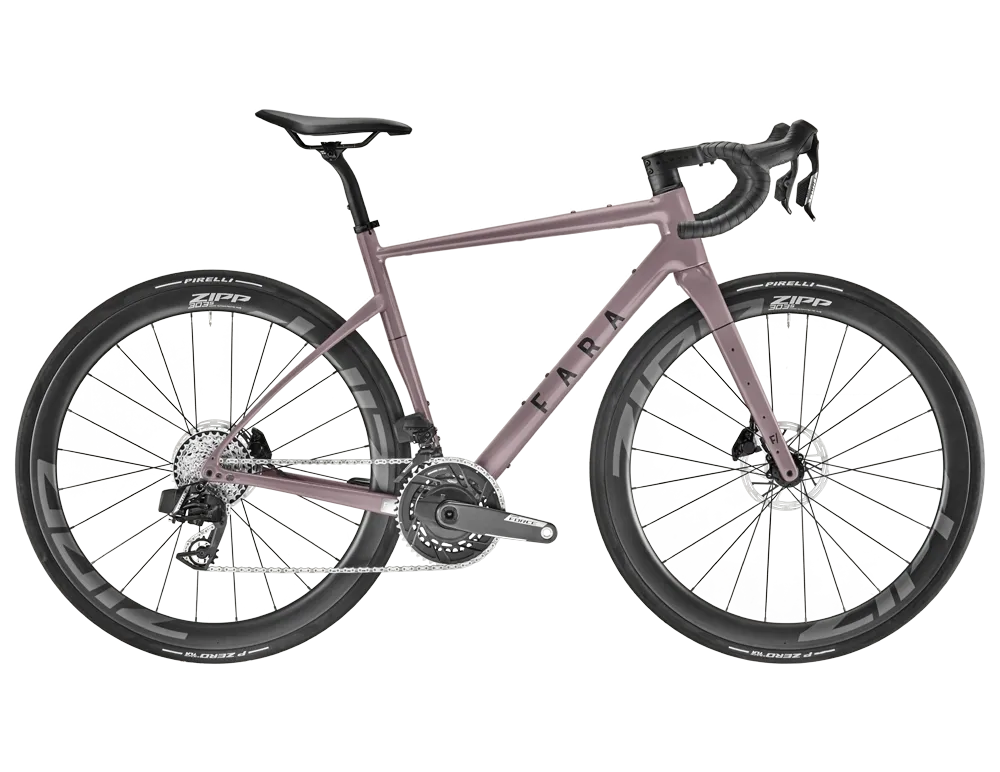

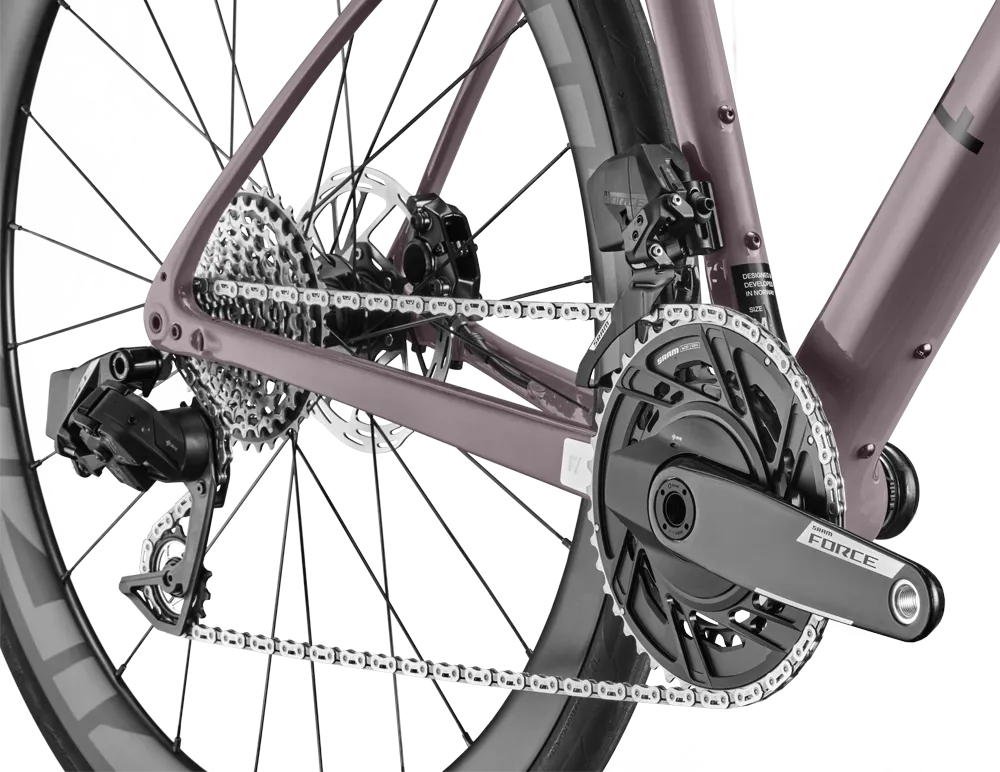

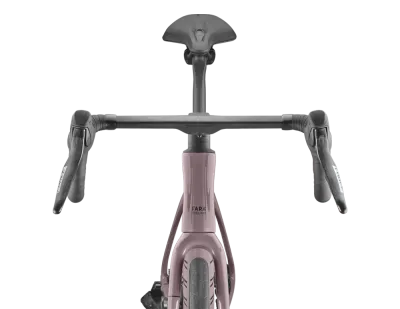

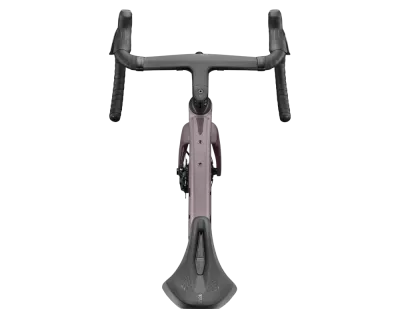

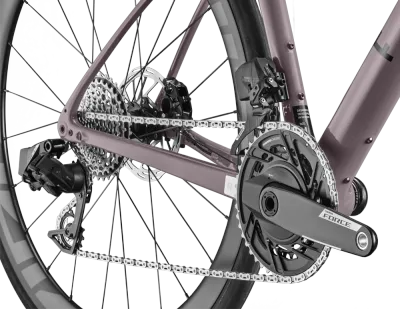

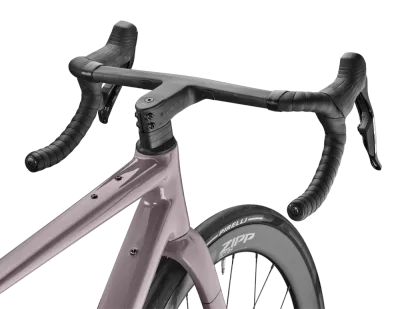

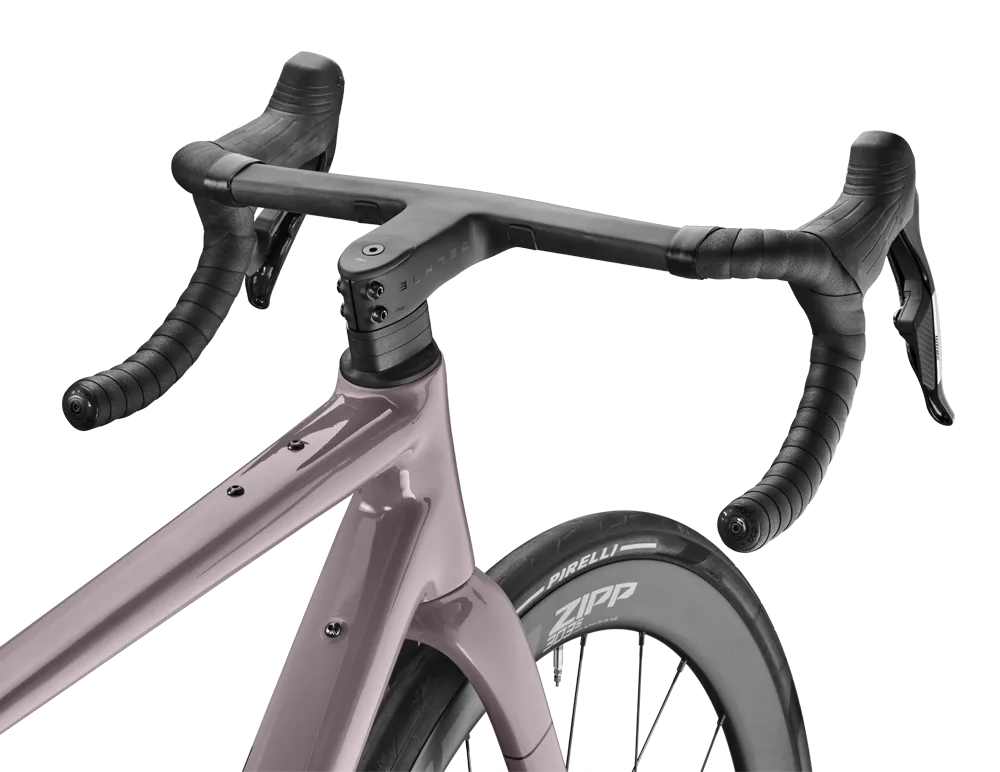

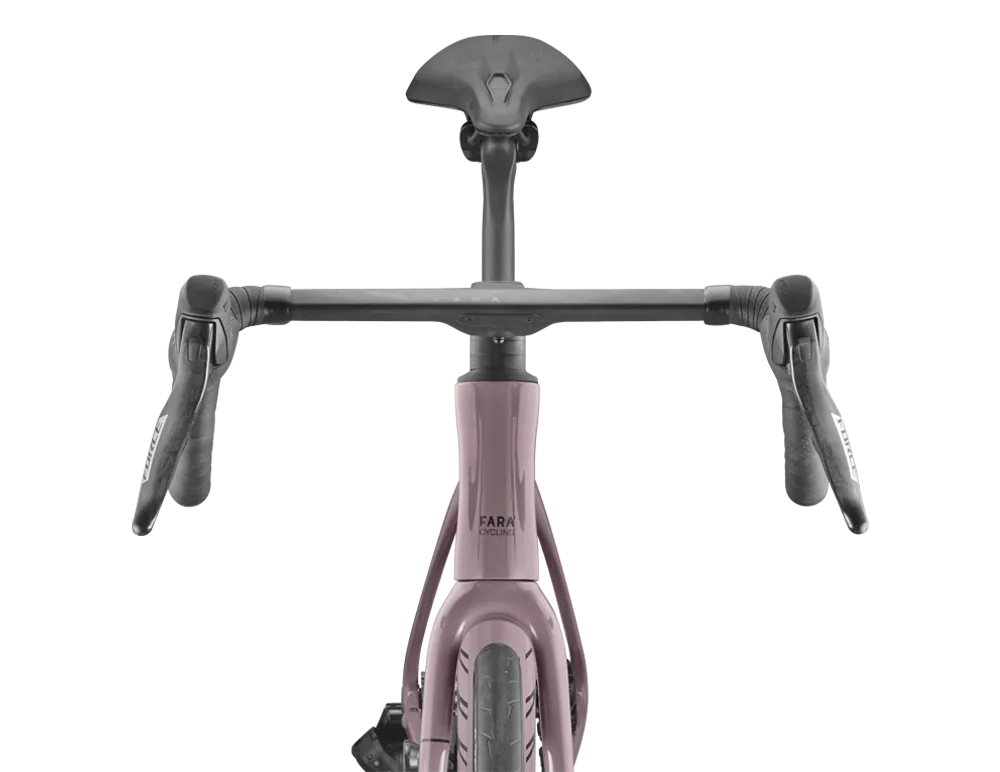

SRAM Force AXS groupset - carbon barstem - Zipp 303s carbon wheelset

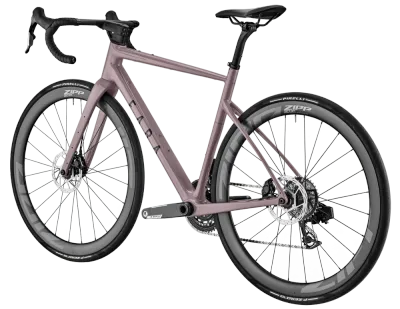

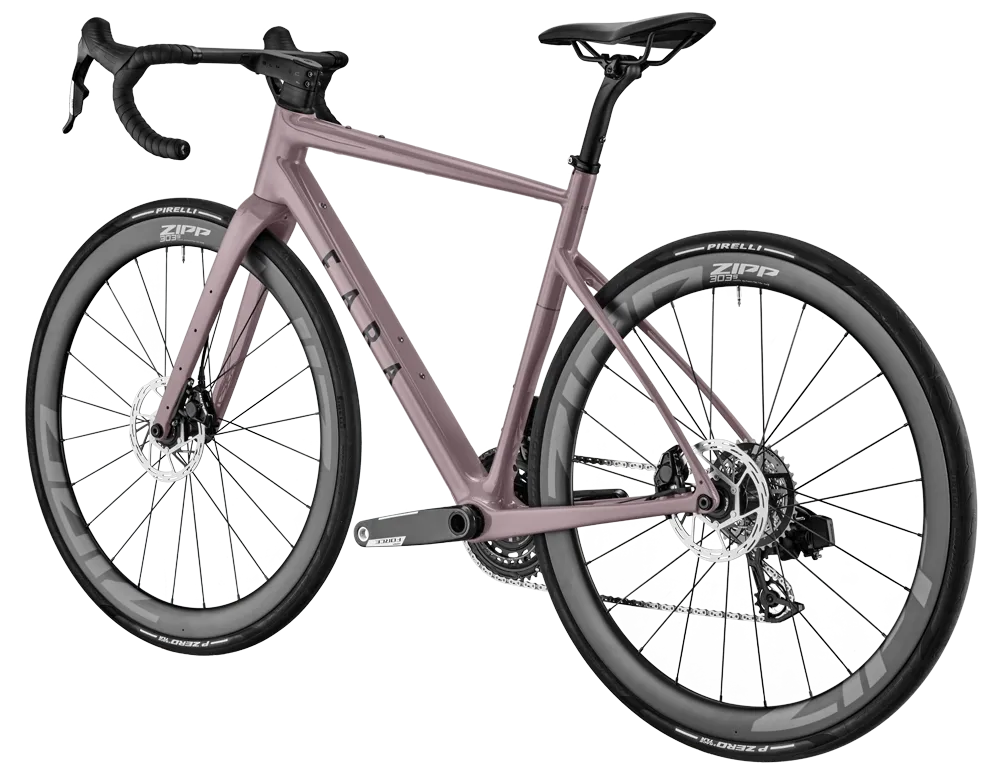

Introducing SRAM’s latest iteration of their workhorse Force AXS groupset, matched to our flagship F/All-Road platform.
Combining endurance road geometry with gravel capabilities, this bike features:
The F/All-Road frame design delivers a fast and responsive ride on road surfaces while offering wide tire clearance to handle off-road adventures.
Key feature: Tire choice transforms the bike's handling:
The Zipp 303S wheels are crafted for superior aerodynamics and lightweight performance.
Note: Specifications subject to change without prior notice.
Bicycles delivered with Pirelli Cinturato Road TLR Black 622x32 instead of pictured Pirelli P-Zero Race TLR 622x30 Black.
THE DETAILS
• Carbon fiber frame and fork construction
• Frame weight 980 grams (Size dependant)
• Fork weight 390 grams
• Integrated Bikebacking System
• Integrated Fender mounts front and rear
• Light rack compatible mounts
• Three bottle mounts
• Top tube Bento mount
• Fork mounted cargo cage attachments
• Front/rear flat mount disc brakes 140mm (160mm w/adapter)
• Fully integrated brake cable routing F/R
• Fully integrated derailleur routing F/R
• 1.5'' Token S-Box integrated headset
• Compatible with Electronic and Mechanical shifting
• 1x and 2x compatible
• 27.2 mm round seatpost, universal clamp
• 100mm and 142mm TA 12mm axles
• BB386 bottom bracket standard

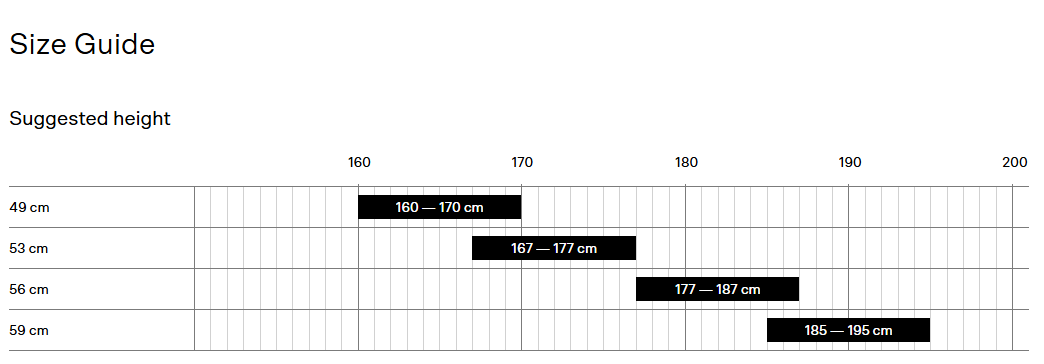

4 sizes to fit nearly every rider
Our F/All-Road size range starts from 49cm to fit smaller riders down to 160cm tall and up to size 59cm for riders up to 195cm. The four size options are ideally suited to provide you with an optimal fit.
In addition, stack and reach increments rise evenly throughout the range, providing consistent fit on each and every size. Fork offsets are adapted from the smallest to the largest sizes to ensure great ride quality for all and none of the dreaded toe-overlap.
Geometry
Size | S 49cm |
M 53cm |
L 56cm |
XL 59cm |
---|---|---|---|---|
A. Stand-over height | 728mm | 762mm | 798mm | 827mm |
B. Front centre | 590mm | 592mm | 609mm | 626mm |
C. Rear centre | 415mm | 415mm | 415mm | 415mm |
D. Wheel base | 993mm | 996mm | 1013mm | 1030mm |
E. Top tube length | 521mm | 547mm | 564mm | 581mm |
F. Stack | 530mm | 555mm | 583mm | 610mm |
G. Reach | 369mm | 377mm | 386mm | 395mm |
H. Head stack | 115mm | 137mm | 166mm | 194mm |
I. Seat tube angle | 74° | 73° | 73° | 73° |
J. Head tube angle | 71° | 72° | 72° | 72° |
K. BB Center to the topof the seat tube | 487mm | 517mm | 557mm | 585mm |
L. Max Seatpost insertion | 170mm | 200mm | 220mm | 220mm |
