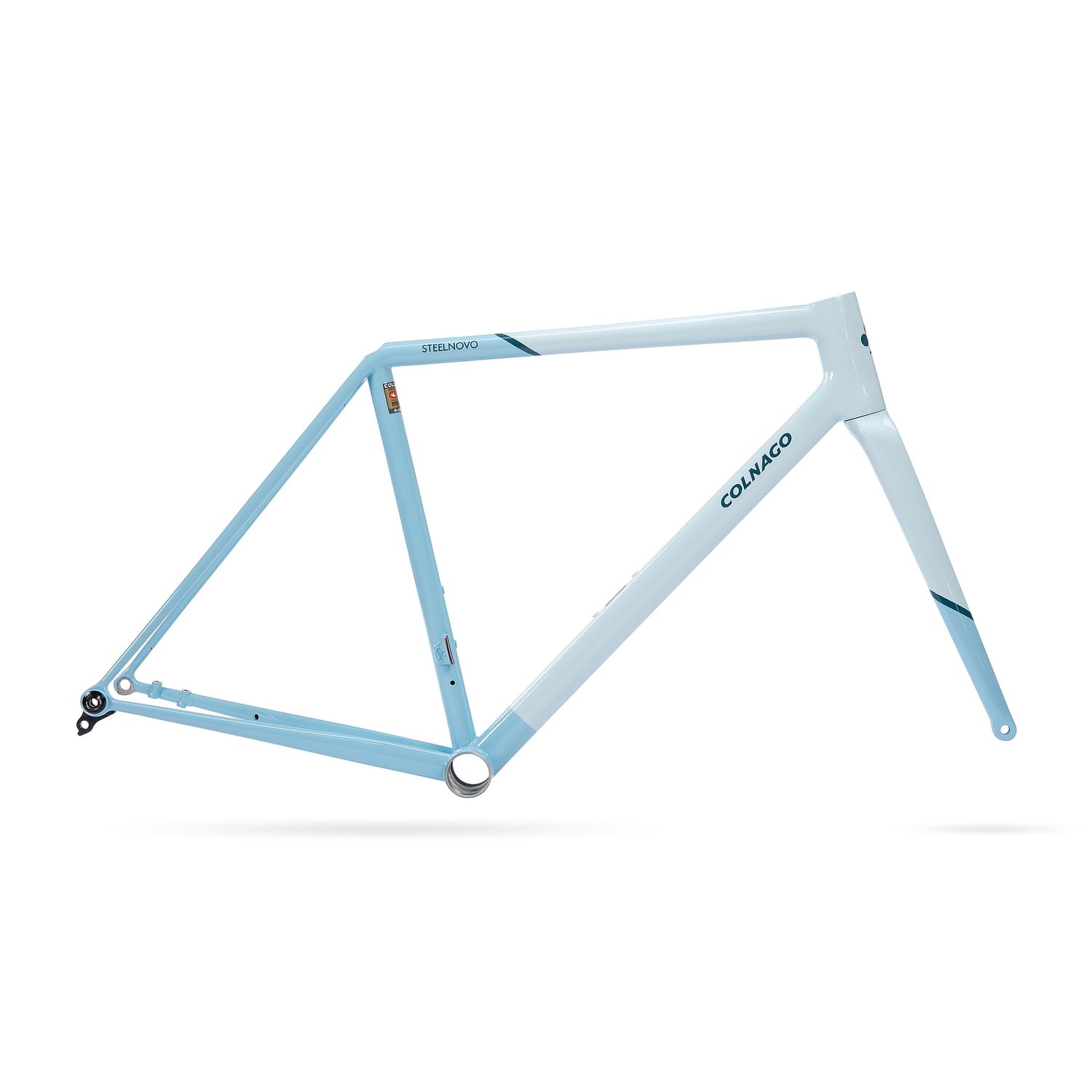

Colnago Steelnovo Frameset

A 100% Italian frame blending tradition and innovation. Columbus steel tubes, 3D-printed joints, seamless welds. Each Steelnovo requires a full day of artisanal craftsmanship.

Full integration: The cables on this bike are fully integrated, giving the bike a modern look on a par with top-of-the-range carbon bikes.

3D printed lugs: The Steelnovo features innovative 3D printed lugs, which allow a perfect fit in the frame with an accuracy of less than a hundredth of a millimeter

Columbus tubing: The tubes are made by Columbus, Colnago's historic partner, with whom the brand's most iconic and prestigious steel models have been built, from the Colnago Super to the Master.

Specifications

• Series: Steel bikes
• Model: Steelnovo

Weight

• Weight: Size 485 unpainted frame: 1.895g
• Weight limit: This model has an overall maximum limit (combined weight of bicycle, rider and load) of 110 kg

Frame kit

• Frame (material): Steel tubes and lugs with 3D-printed steel lugs
• Fork (material, section notes) Carbon fork for disc brakes, integrated cables, 1"1/8 section
• Headset: 1"1/8 - 1"1-4 (conic)
• Seatpost: Carbon seatpost not included, compatible with round section 27.2mm
• Through axles: Diameter: 12 mm. length 100 mm (front) - 142 mm (rear)
• Bottom bracket: Not included. Compatible with standard T47 - 86 mm
• Maximum tire size: 35 mm + 4mm clearance

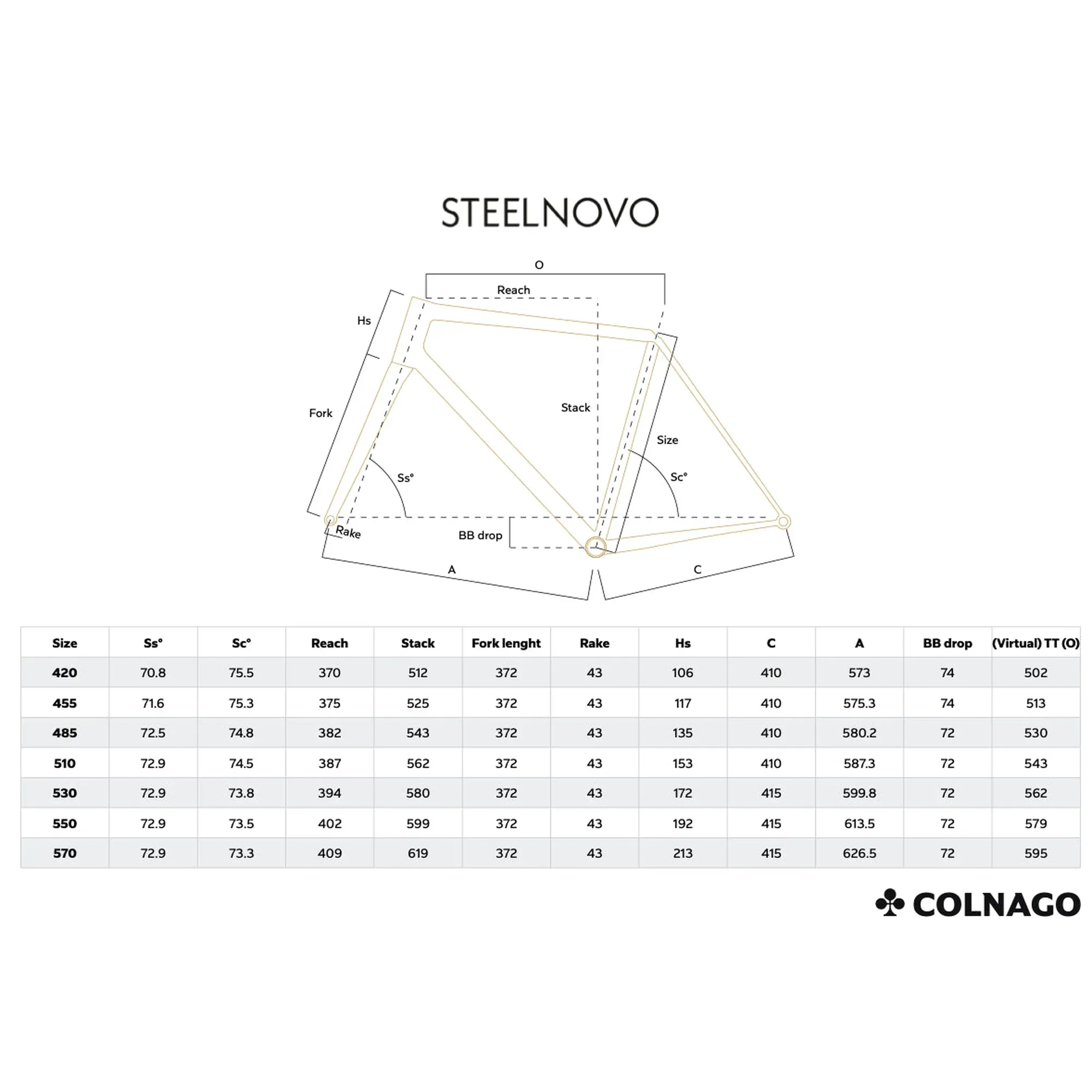

Geometry
