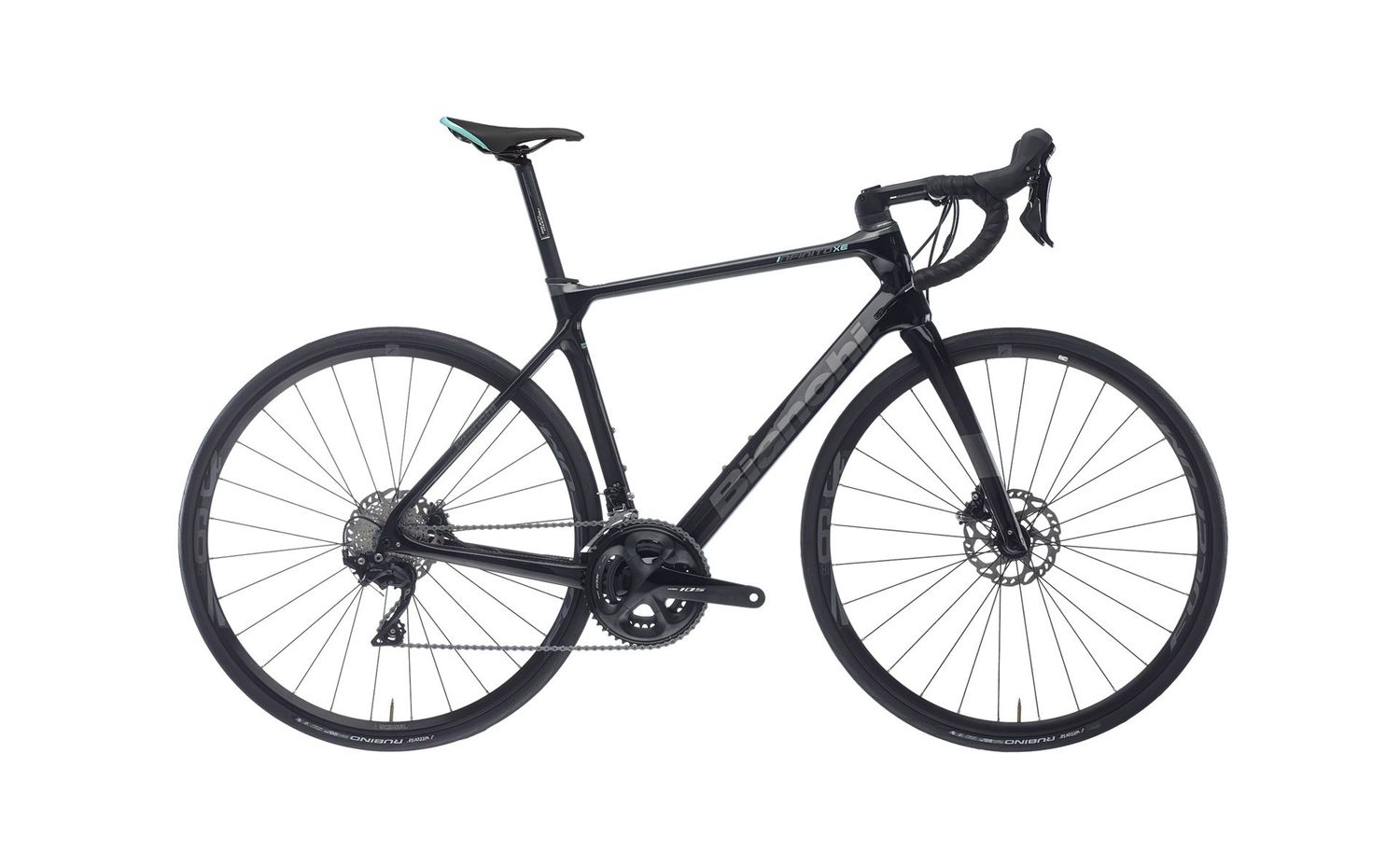

Bianchi - Infinito XE Gravel - 2023

TECH SPECS

• FRAMESET

  1. FRAME

     Infinito XE Disc carbon, tapered HT 1.1/8"- 1.5", Mechanical/Electronic Di2 shifting compatible, compatible with 32" tire, PressFit 86,5x41mm BBset, thru axle 12x142mm, sizes 47-50-53-55-57-59-61cm

  2. FORK

     Bianchi Full Carbon Disc, 1.5" head, thru axle 12x100mm, compatible with 32" tire

  3. HEADSET

     Fsa NO.42/47CF/ACB/5D

• DRIVETRAIN

  1. SHIFTERS

     Shimano 105 ST-R7020 2x11sp, Hydraulic disc brake, Shimano 105 ST-R7025 2x11sp smaller lever size for sizes 47-50-53cm

  2. REAR DERAILLEUR

     Shimano 105 RD-R7000 GS 11sp

  3. FRONT DERAILLEUR

     Shimano 105 FD-R7000-L

  4. CRANKSET

     Shimano 105 FC-R7000 50x34T, Hollowtech II, crank length: 170mm-47/53cm, 172.5mm-55/59cm, 175mm-61cm

  5. BOTTOM BRACKET

     Shimano SM-BB71-41B, PressFit

  6. CHAIN

     Kmc X11-1 EPT finish, 11sp

• BRAKES

  1. BRAKES

     Shimano BR-RS505

  2. BRAKELEVERS

     included w/shifters

  3. ROTOR

     Shimano SM-RT70, diam. 160mm

• WHEELS

  1. WHEELS

     Fulcrum Racing 918 DB, 2WF-R C19, thru axle front 12x100mm - rear 12x142mm

  2. TIRE

     Vittoria Zaffiro Pro V 700x28

• COCKPIT

  1. STEM

     Velomann, 3D Forged alloy 6061, rise +/ - 7°, height 38mm, Oversize, 1.1/8", Ext: 70mm-47cm, 90mm-50cm, 100mm-53cm, 110mm-55cm, 120mm-57cm/61cm

  2. HANDLEBAR

     Velomann Compact, Flat Top, alloy 6061 diam. 31,8mm, reach 80mm, drop 130mm, Size: 400mm-44/53cm, 420mm-55/59cm, 440mm-61cm

  3. GRIPS

     La Spirale Ribbon cork

• SADDLE

  1. SEATPOST

     Velomann alloy shaft 2014, head alloy 6061, hardwares: Steel, Setback 25mm, size: 350mm-47/57cm; 380mm-59/61cm

  2. SADDLE

     Velomann 1966 rail steel black, open, cover PU, lenght/wide 250x148mm

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
