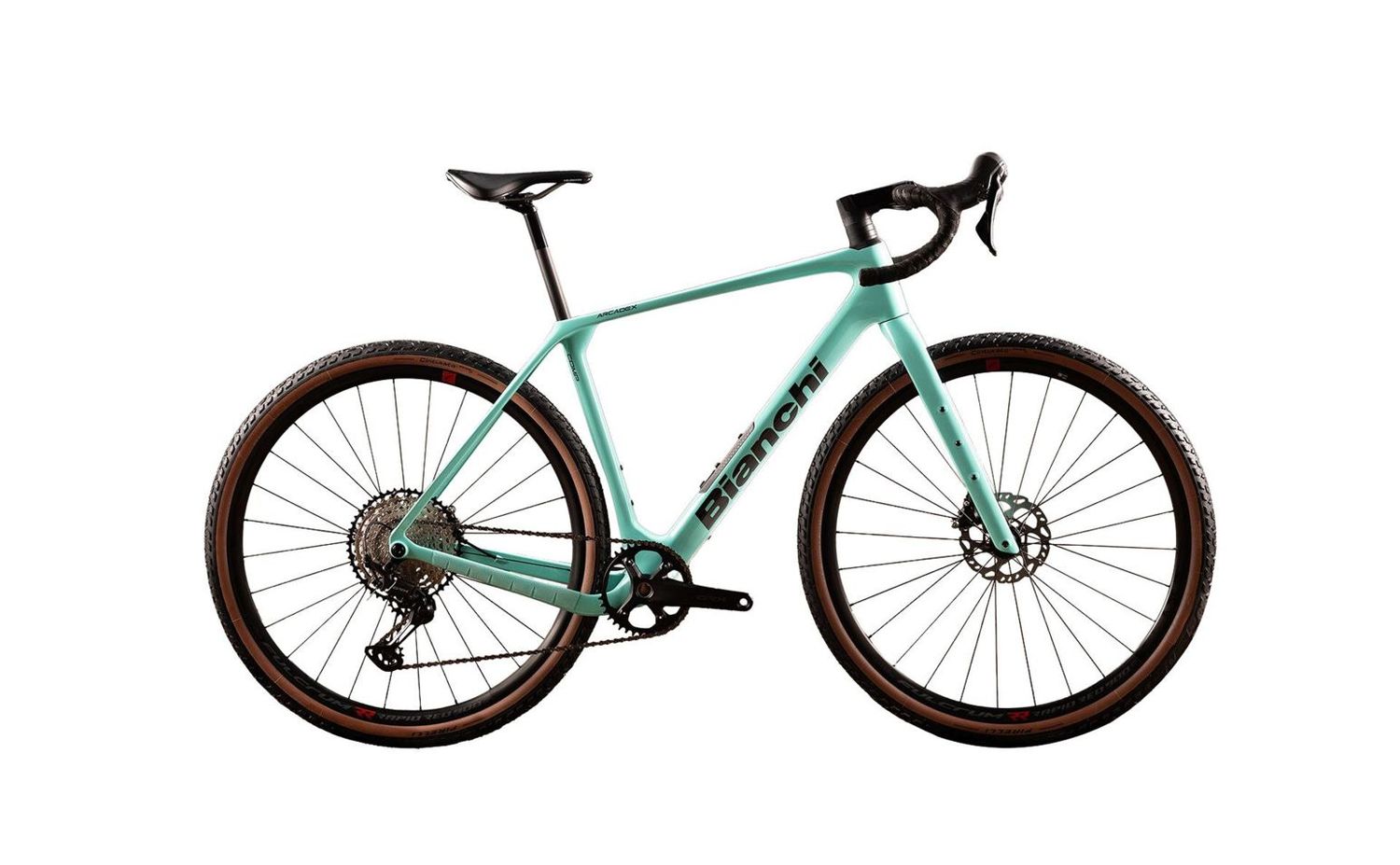

2027 Bianchi Arcadex COMP GRX 610 1x12sp

The Arcadex Comp version frame features a semi-internal internal cable routing system and is compatible with the new, fully integrated monocoque carbon fiber handlebar developed by Bianchi's Reparto Corse.

With its generous tire clearance, the Arcadex can accommodate tires up to 700c x 50mm and can be equipped with clip-on fenders, using 45mm tires. The bike is ASTM 2 rated for off-road use, and both versions are equipped with the Mitora 149 H1 saddle, offering the necessary comfort even on multi-day trips.

The Arcadex Comp is the ideal bike for those who want to push beyond the boundaries of their comfort zone.

Specifications

• Frame: Bianchi Arcadex, Carbon, Flat mount caliper, PressFit 86.5×41 mm, Thru axle, OLD: 142 mm, Rear derailleur: Sram UDH hanger, Wheel clearance: ETRTO 622-50, Sizes: XS-SM-MD-LG-XL
• Fork: Bianchi Arcadex, Carbon, flat mount caliper, 12×100 mm thru axle
• Steering Series: Acros for internal cable passage

Drivetrain

• Commands: Shimano GRX, ST-RX610 shifter lever, BRRX400 caliper
• Crankset: Shimano GRX, FC-RX610, 40T Crank length: 170 mm (XS-SM); 172.5mm (MD-LG); 175mm (XL)
• Rear Derailleur: Shimano GRX, RD-RX822, 12sp
• Bottom Bracket: Shimano SM-BB72-41B, press fit type for road
• Chain: Shimano 105, CN-M7100
• Cassette: Shimano SLX, CS-M7100, 10-51T, 10-12-14-16-18-21-24-28-33-39-45-51T

Brakes

• Brakes: Shimano BR-RX410 hydraulic disc brake
• Rotors: Shimano SM-RT70 Center Lock with Ice Tech, 160 mm
• Brake levers: Included in the commands

Handlebar

• Handlebar Stem: Velomann AL6061, internal cables, compatible with Acros ICR. Size: 80 mm XS(47)SM(51); 90 mm MD(55); 100 mm LG(58); 110 mm XL(61)
• Fold: Velomann Gravel, Aluminium, diameter 31.8 mm, reach 70 mm, drop 130 mm, flare 16 deg, Sizes: 400 mm (XS-SM); 420mm (MD-LG); 440mm (XL)
• Tape: Bianchi Hexagon tape, 2.5 mm thick, black

Wheels

• Wheels: Velomann V24G, Aluminum rim, 24mm profile height, 700x24c, 24h, HG11 body
• Tires: Pirelli Cinturato Gravel M, 700x45, 120 TPI

Saddle

• Seatpost: Velomann Carbon, 15mm offset, 27.2mm diameter, length: 300mm (XS); 350mm (SM-XL)
• Saddle: Velomann Mitora 149 H2, steel fork, length 250 mm, width 149 mm
• Seatpost Clamp: Bianchi Custom

Subject to component availability, Bianchi reserves the right to make changes to specifications without notice.

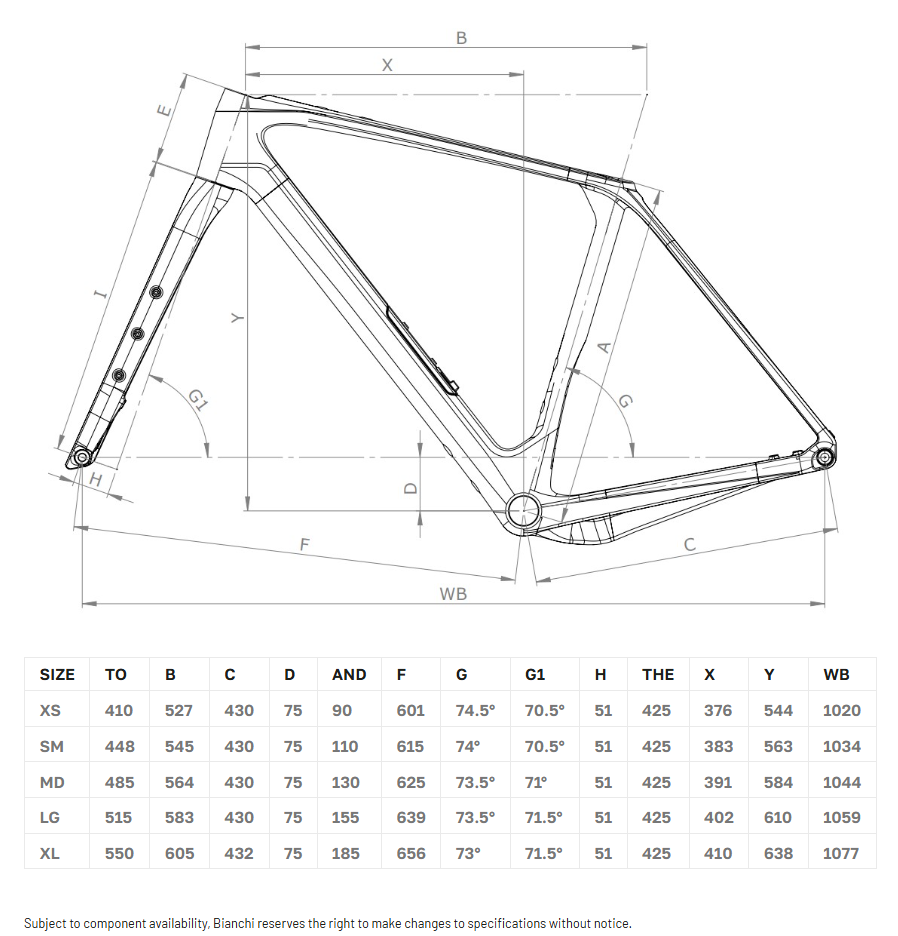

Geometry
