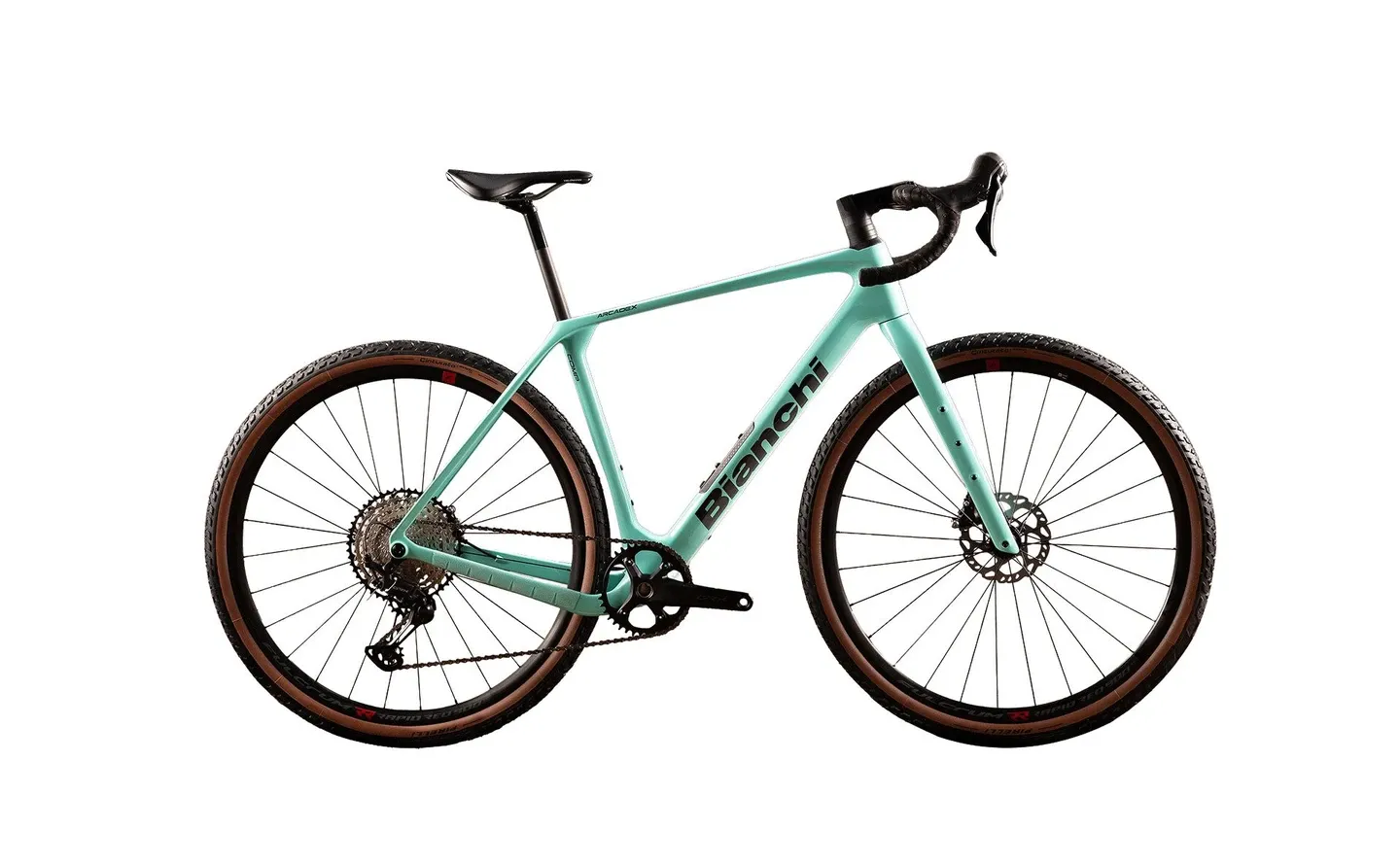

2025 Bianchi Arcadex COMP SRAM APEX

Bikes will ship in 2-3 days.

Frame

• Arcadex Comp Disc Brake Specification: Flat Mount 140/160
• Bottom Bracket Standard: PressFit 86.5 X Ø41
• Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm
• Front Derailleur: Non-Compatible

Fork

• Model: Bianchi Arcadex Fork
• Disc Brake Specification: Flat Mount 140/160
• Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm
• Tire Clearance: ETRTO 622-42mm
• Steer Tube Diameter: 1 1/8"
• Material: Carbon Fiber Composite

Headset

• Model: Bianchi Custom Acros ICR (Internal Cable Routing)
• Spacers: 5 mm x1, 10 mm x3
• Headtube Cover: Bianchi Custom
• Compression Ring: 1.125 Inch
• Top Bearing: Angular Contact Bearing 42x52x7 + seal
• Bottom Bearing: Angular Contact Bearing 40x52x7 + seal

Drivetrain

Shifters

• Model: Sram Apex D1

Rear Derailleur

• Model: Sram Apex Eagle
• Maximum Cassette Sprocket: 52T

Crankset

• Model: Sram Apex 1 WIDE 40T
• Crank Lengths:
  • 170mm: XS(47), SM(51)
  • 172.5mm: MD(55), LG(58)
  • 175mm: XL(61)

Bottom Bracket

• Model: Sram DUB PressFit Road Wide
• Size: 86.5 X Ø41

Chain

• Model: Sram SX Eagle

Cassette

• Model: Sram SX Eagle, PG-1210
• Teeth: 11-50T

Brakes

• Model: Sram APEX
• Pad Type: Steel-Backed Organic

Rotor

• Model: Sram CenterLine Rotor
• Hub Interface: Centerlock
• Rotor Diameter: 160 mm (front & rear)

Wheels

• Model: Fulcrum RapidRed 900
• Compatibility: 2-Way Fit Ready (for clincher and tubeless ready)
• Rim Diameter: 700C
• Material: Aluminum Alloy
• Rim Height: 24 mm
• Inner Width Channel: 22 mm

Tire

• Model: Pirelli Cinturato™ GRAVEL M Classic
• Size: 45-622
• Sidewall: Tan

Cockpit

Stem

• Model: Velomann AICR Alloy
• Rise: -2°
• Steerer Diameter: 1-1/8" (28.6mm)
• Handlebar Interface Diameter: 1-1/4" (31.8mm)
• Stem Lengths:
  • 80mm: XS(47)
  • 90mm: SM(51)
  • 100mm: MD(55)
  • 110mm: LG(58)
  • 120mm: XL(61)

Handlebar

• Model: Velomann Gravel ICR Alloy
• Flare: 16°
• Drop: 130mm
• Reach: 70mm
• Interface Diameter: 1 1/4" (31.8mm)
• Handlebar Widths:
  • 400mm: XS(47), SM(51)
  • 420mm: MD(55), LG(58)
  • 440mm: XL(61)

Grips / Extensions

• Model: Bianchi Hexagon tape
• Thickness: 2.5mm
• Color: Full black

Saddle

Seatpost

• Model: Velomann Carbon UD SeatPost
• Outer Diameter: Ø27.2 mm
• Seatpost Lengths:
  • 300mm: XS(47)
  • 350mm: SM(51), MD(55), LG(58), XL(61)

Saddle

• Model: Velomann MITORA 149 H2
• Cover: Soft touch
• Padding: Foam
• Shell: Nylon
• Rails: Steel
• Length: 250mm
• Width: 149mm
