Name: 2025 Bianchi Arcadex COMP GRX 610
Brand: Bianchi
SKU: 850_sku_main
Price: 3800.0 CAD
Availability: InStock

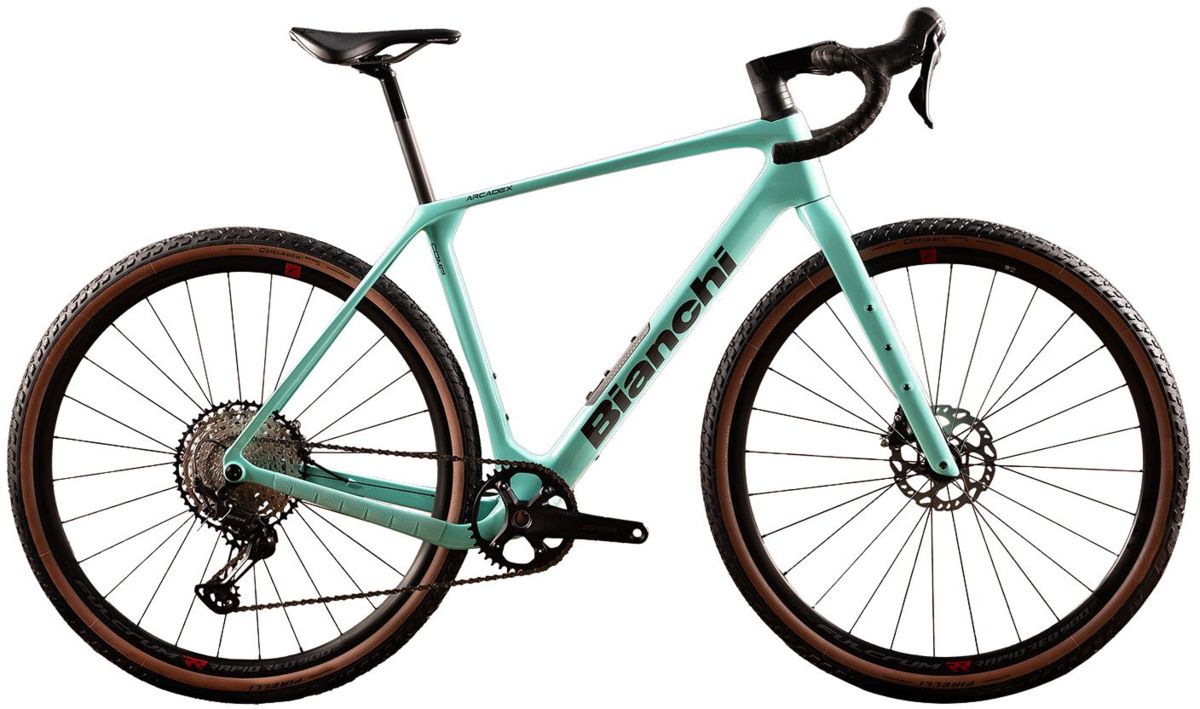

2025 Bianchi Arcadex COMP GRX 610

Product Details

Brand: Bianchi

This bike will ship in 2-3 days.

Frame

Arcadex Comp Disc Brake Specification: Flat Mount 140/160
Bottom Bracket Standard: PressFit 86.5 X Ø41
Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm
Front Derailleur: Non-Compatible
Rear Derailleur: SRAM UDH Hanger type
Max Chainring Compatibility:

Fork

Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160
Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm
Tire Clearance: ETRTO 622-42mm
Steer Tube Diameter: 1 1/8""
Material: Epoxy - SM Carbon Fiber Composite

Headset

Bianchi Custom Acros ICR (Internal Cable Routing)
- Spacers: 5 mm x1, 10mm x3
- Headtube Cover: Bianchi Custom
- Compression Ring: 1.125 Inch
- Top Bearing: Angular contact Bearing 42x52x7 + seal
- Bottom Bearing: Angular contact Bearing 40x52x7 + seal

Shifters: Shimano GRX 610 ST/BL-RX610
Rear Derailleur: Shimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51T
Crankset: Shimano GRX 610 FC-RX610-1, 40T
- Crank Length:
  - 170mm - XS(47)-SM(51)
  - 172.5mm - MD(55)-LG(58)
  - 175mm - XL(61)
Bottom Bracket: Shimano SM-BB72-41B, press fit
Chain: Shimano CN-M7100
Cassette: Shimano CS-M7100-12 speed, 11-51T
- Driver Body Interface: MicroSpline

Brakes: Shimano Hydraulic Brake, BR-RX400
Rotor: Shimano SM-RT70 IceTech
- Hub Interface: Centerlock
- Rotor Diameter: 160 mm (front & rear)

Wheels: Fulcrum RapidRed 900 2-Way Fit Ready (for clincher and tubeless ready)
- Rim Diameter: 700C
- Material: Aluminum Alloy
- Rim Height: 24 mm
- Inner Width Channel: 22 mm
Tire: Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall

Cockpit

Stem: Velomann AICR Alloy
- Rise: -2°
- Steerer Diameter: 1-1/8"" (28.6mm)
- Handlebar Interface Diameter: 1-1/4"" (31.8mm)
- Stem Lengths:
  - 80mm - XS(47)
  - 90mm - SM(51)
  - 100mm - MD(55)
  - 110mm - LG(58)
  - 120mm - XL(61)
Handlebar: Velomann Gravel ICR Alloy
- Flare: 16°
- Drop: 130mm
- Reach: 70mm
- Interface Diameter: 1 1/4"" (31.8mm)
- Handlebar Widths:
  - 400 - XS(47), SM(51)
  - 420 - MD(55), LG(58)
  - 440 - XL(61)
Grips / Extensions: Bianchi Hexagon tape 2.5mm thickness, Full black

Seatpost: Velomann Carbon UD
- Outer Diameter: Ø27.2 mm
- Seatpost Lengths:
  - 300mm - XS(47)
  - 350mm - SM(51), MD(55), LG(58), XL(61)
Saddle: Velomann MITORA 149
- Cover: Soft touch
- Padding: Foam
- Shell: Nylon Carbon
- Rails: Steel
- Length: 250mm
- Width: 149mm
