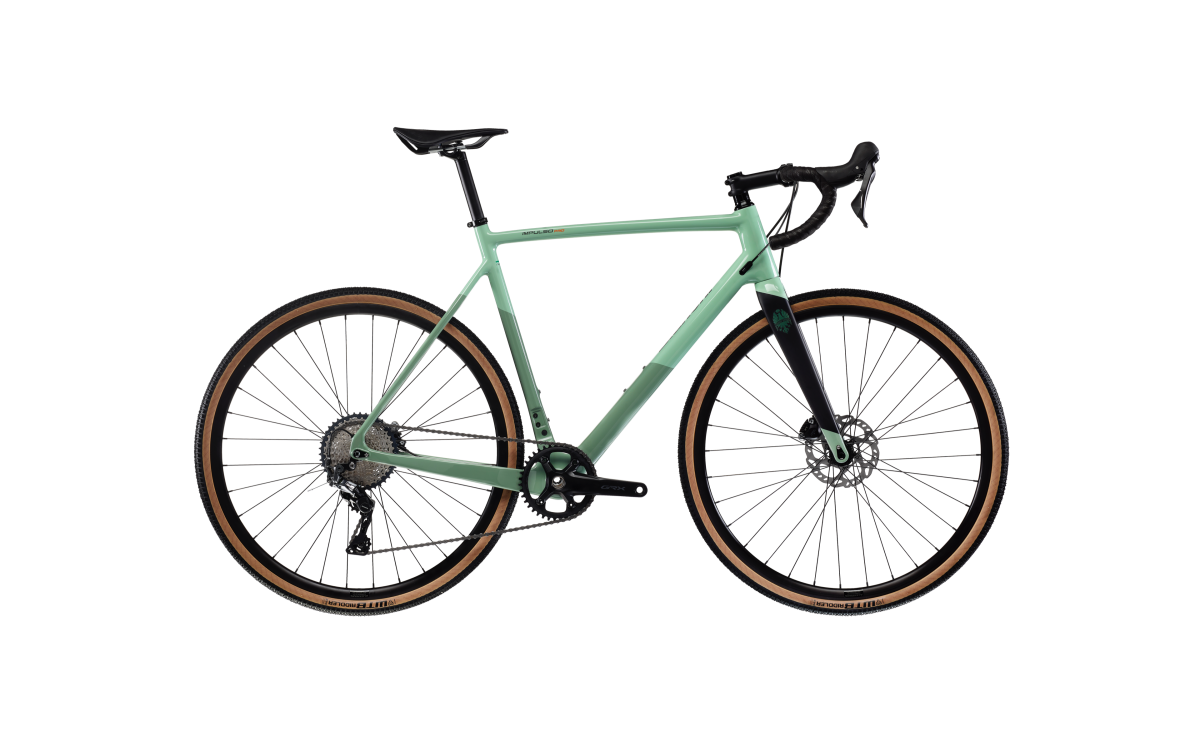

2023 Impulso Pro Gravel

TECH SPECS

• FRAMESET

  1. FRAME

     Impulso Pro carbon disc brake flat mount, FM-JM09- 2021, press fit 86.5x41 headset 1.5" - 11/8", thru axle 12x142, sizes 48-50-52-54-56-58-cm

  2. FORK

     Bianchi full carbon disc, 1.5"- 1.1/8", flat mount caliper, thru axle 12x100mm

  3. HEADSET

     Fsa Orbit C-40-ACB ; NO.42/ACB, Sealed ACB Bearings 1.1/8" ACB Top, 1.5" ACB Btm (for 46/56mm Head Tubes), w/15mm alloy cap

• DRIVETRAIN

  1. SHIFTERS

     Shimano GRX 600 11sp Hydraulic disc brake

  2. REAR DERAILLEUR

     Shimano RD-RX812, GRX 11sp, top normal shadow plus design, direct attachment, direct mount compatible

  3. CRANKSET

     Shimano FC-RX600, GRX, 11-speed, 2-pcs FC, 40T w/o BB parts, Crank Length: 170mm- 48/52, 172.5mm-54/56, 175mm-58

  4. BOTTOM BRACKET

     Shimano BB-RS500-PB, press fit

  5. CHAIN

     Shimano CN-HG601-11

• BRAKES

  1. BRAKES

     Shimano BR-RX400, hydraulic disc brake, flat mount calipers

  2. BRAKELEVERS

     included w/shifters

  3. ROTOR

     Shimano SM-RT86, diam. 160mm

• WHEELS

  1. WHEELS

     Velomann GD24 disc 700c 622-21, profile 24mm, sleeve join, 32hole, tubeless ready, no eyelet, black w/o logo

  2. REARHUB

     Shimano FH-RS470

  3. TIRE

     WTB Riddler Comp 700 x 37c, 30tpi Casing

• COCKPIT

  1. STEM

     Velomann ST182A, Alloy 6061, raise +/ - 7°, height 38mm, Oversize, 1 1/8", sandblast finish with bolts zinc black finish; 70-90-100-110-120, Ext: 80mm-48-50cm,90mm-52~54cm,100mm-56cm,110mm-58cm

  2. HANDLEBAR

     Velomann RA68A Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120 x size 40cm and 130mm x size 42-44-46cm, Size: 400mm- 48/50cm; 420mm-52/58cm ,440mm-58cm

  3. GRIPS

     VLT-1001 w/Bianchi embossed logo; color: Black

• SADDLE

  1. SEATPOST

     Velomann SP02.1 Alloy shaft AL6061, alloy head, 15mm offset, 350mm, 27,2mm, Length: 350mm-48/58cm

  2. SADDLE

     SelleItalia ModelX Superflow FeC, lenght/wide 245x145mm

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.

GEOMETRY
