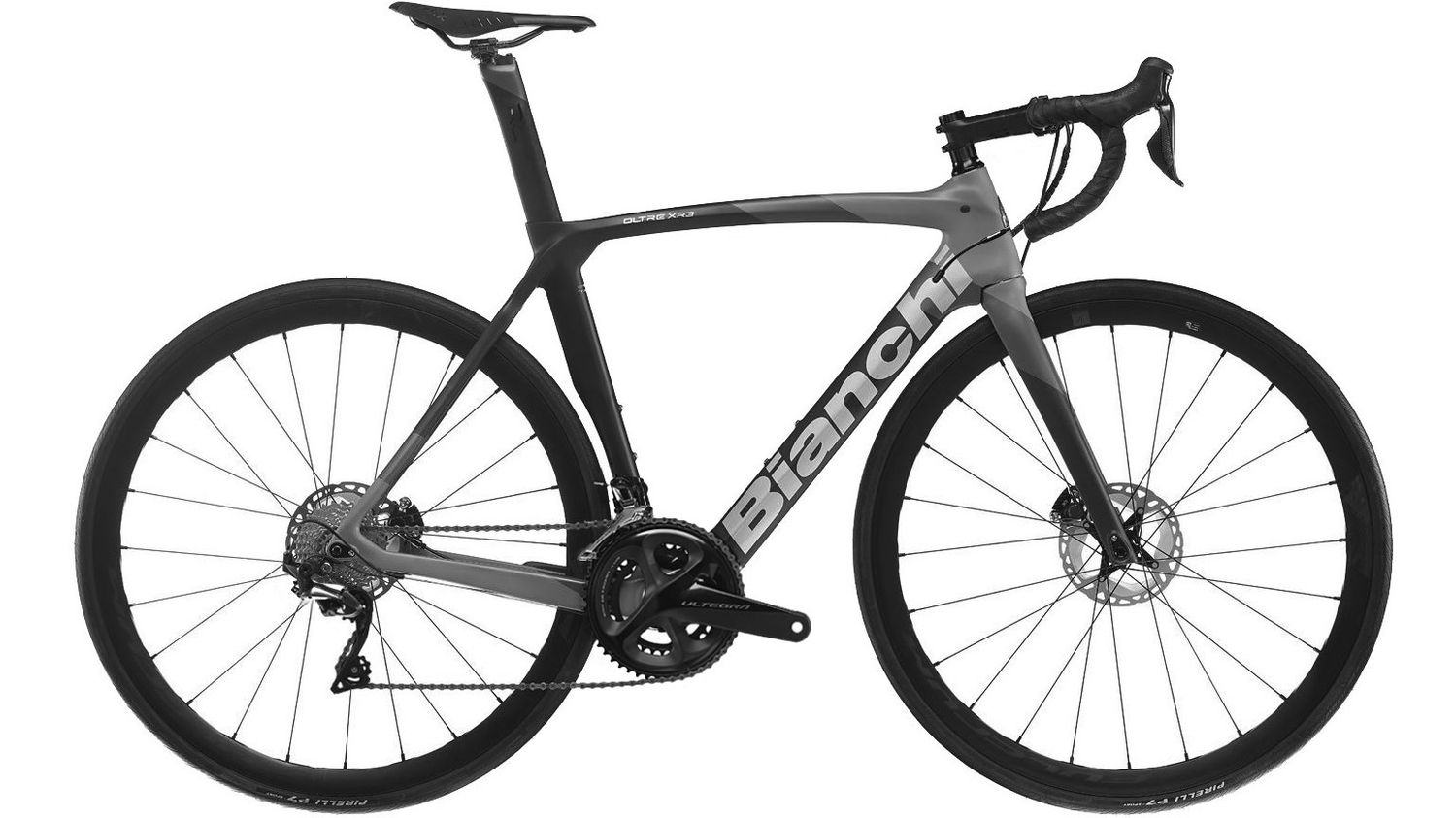

2022 Oltre Road

TECH SPECS

• FRAMESET

  1. FRAME

     Oltre XR3 Disc carbon w/Bianchi CV, mechanical/electronic shifting compatible, PressFit BB 86,5x41mm, flat mount calipers, thru axle 12x142mm, sizes 47-50-53-55-57-59-61cm

  2. FORK

     Bianchi Full Carbon w/Bianchi CV, Disc, 1.5" integrated head , flat mount caliper, thru axle 12x100mm

  3. HEADSET

     Fsa Orbit C-40-ACB

• DRIVETRAIN

  1. SHIFTERS

     Shimano Ultegra Di2 hydraulic disc brake for road

  2. REAR DERAILLEUR

     Shimano Ultegra Di2

  3. FRONT DERAILLEUR

     Shimano Ultegra Di2

  4. CRANKSET

     Shimano Ultegra hollowtech 2, 50x34T w/o BB parts, Crank Length: 170mm-47/53cm, 172.5mm-55/59cm, 175mm-61cm

  5. BOTTOM BRACKET

     Shimano SM-BB72-41B

  6. CHAIN

     Shimano Ultegra

• BRAKES

  1. BRAKES

     Shimano Hydraulic disc brake, included in the shifter

  2. BRAKELEVERS

     included w/shifters

  3. ROTOR

     Shimano SM-RT800 Center Lock, diam. 160mm

• WHEELS

  1. WHEELS

     Fulcrum Racing 400 disc brake, 622x19c, 2 WAY FIT tubeless ready

  2. TIRE

     Pirelli P7, 700 x 28c, 60TPI, Nylon breaker, Folding

• COCKPIT

  1. STEM

     Reparto Corse 3D Forged alloy 6061, rise +/ - 6°, height 38mm, 1.1/8", Ext: 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59/61cm

  2. HANDLEBAR

     Reparto Corse Aero Compact, alloy 6061 diam. 31,8mm, reach 74mm, drop 116mm, Size: 400mm-47/53cm, 420mm-55/59cm, 440mm-61cm

  3. GRIPS

     La Spirale Ribbon cork

• SADDLE

  1. SEATPOST

     Reparto Corse Full Carbon Aero special dimension; special Clamp type with alloy head adjustable and reversible +/- 35mm; lenght: 250mm-47cm, 300mm-50/53cm, 350mm-55/59cm, 380-61cm, Setback: 25mm/+10mm

  2. SADDLE

     Fi'zi:k Antares R7, S alloy rail, 274x142mm

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.

GEOMETRY
