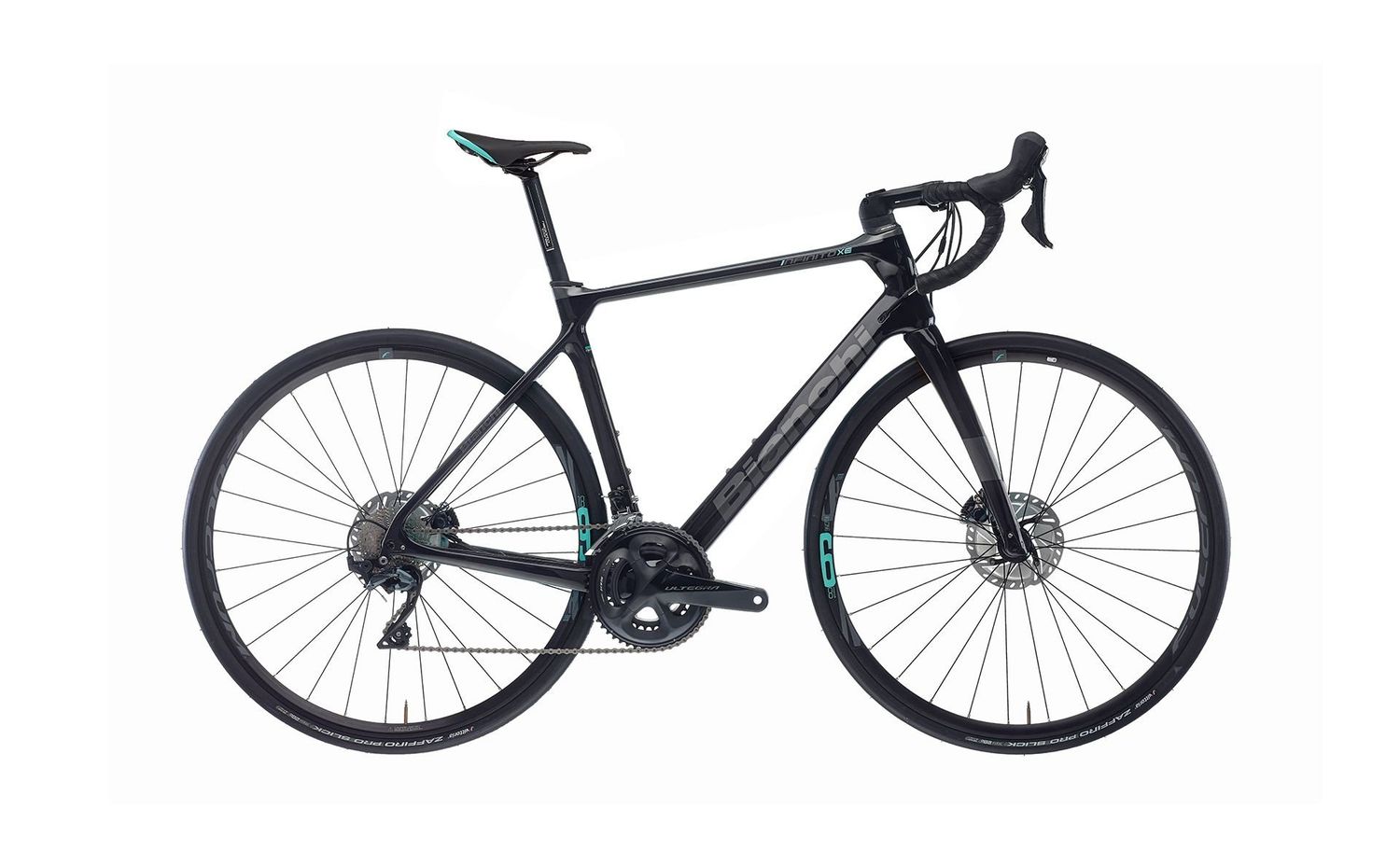

2022/23 Infinito XE Road

TECH SPECS

• FRAMESET

  1. FRAME

     Infinito XE Disc carbon, tapered HT 1.1/8"- 1.5", Mechanical/Electronic Di2 shifting compatible, compatible with 32" tire, PressFit 86,5x41mm BBset, thru axle 12x142mm, sizes 47-50-53-55-57-59-61cm

  2. FORK

     Bianchi Full Carbon Disc, 1.5" head, thru axle 12x100mm, compatible with 32" tire

  3. HEADSET

     Fsa NO.42/47CF/ACB/5D

• DRIVETRAIN

  1. SHIFTERS

     Shimano 105 Di2 hydraulic disc brake for road

  2. REAR DERAILLEUR

     Shimano 105 Di2

  3. FRONT DERAILLEUR

     Shimano 105, top gear 50-52T

  4. CRANKSET

     Shimano 105, Ultegra hollowtech 2, 170-172,5-175mm, 50x34T, Crank Length: 170mm-47/53cm, 172.5mm-55/59cm, 175-61cm

  5. BOTTOM BRACKET

     Shimano SM-BB72-41B, press fit for road

  6. CHAIN

     Shimano 105, CN-M7100, 112link

  7. CASSETTE

     Shimano 105, 11-34T

• BRAKES

  1. BRAKES

     included w/shifters

  2. ROTOR

     Shimano SM-RT70 rotor for disc brake center lock , S 160mm w/lock ring (2pcs)

• WHEELS

  1. WHEELS

     Fulcrum Racing 918 DB 2WF-R C19, front HH12 - REAR 12/142 HG11

  2. TIRE

     Vittoria Zaffiro Pro V 700x28

• COCKPIT

  1. STEM

     Velomann, 3D Forged alloy 6061, rise +/ - 7°, height 38mm, Oversize, 1.1/8", Ext: 70mm-47cm, 90mm-50cm, 100mm-53cm, 110mm-55cm, 120mm-57cm/61cm

  2. HANDLEBAR

     Velomann Compact, Flat Top, alloy 6061 diam. 31,8mm, reach 80mm, drop 130mm, Size: 400mm-44/53cm, 420mm-55/59cm, 440mm-61cm

  3. GRIPS

     La Spirale Ribbon cork

• SADDLE

  1. SEATPOST

     Velomann alloy shaft 2014, head alloy 6061, hardwares: Steel, Setback 25mm, size: 350mm-47/57cm; 380mm-59/61cm

  2. SADDLE

     Velomann rail steel black, open, cover PU, lenght/wide 250x148mm

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
